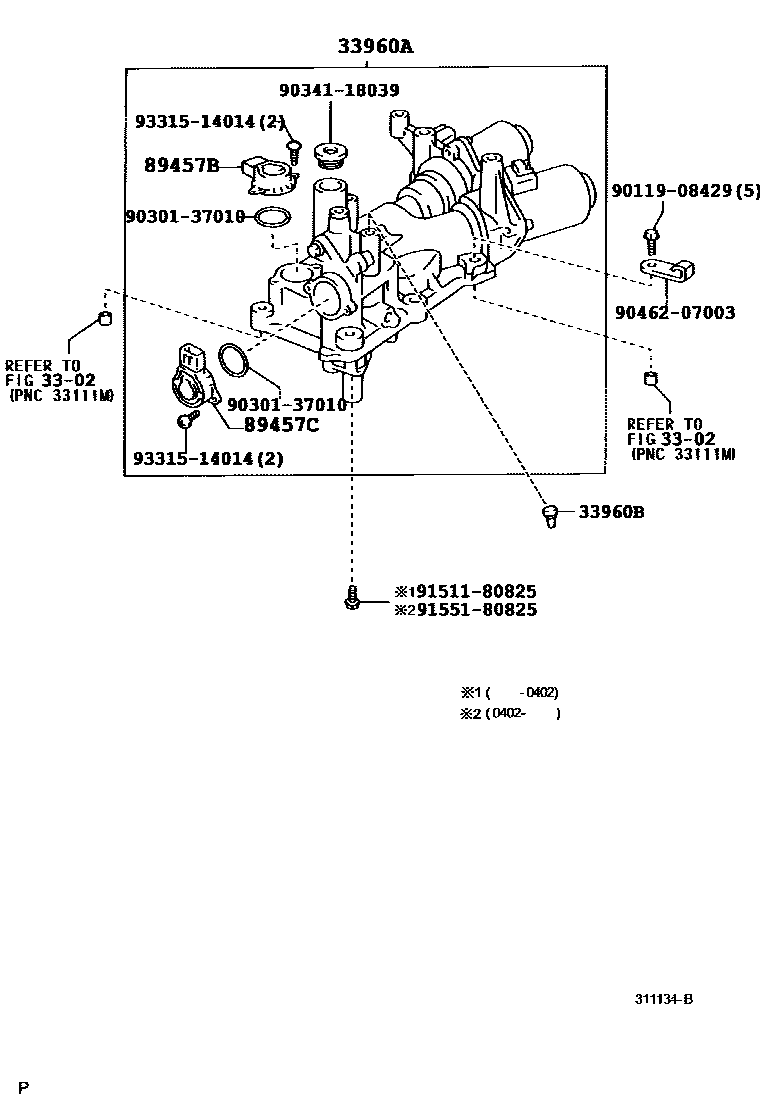

Toyota YARIS 泵和执行器、顺序变速器或多模式手动传动桥 — Figure 3107
Toyota YARIS EPC diagram 3107, 泵和执行器、顺序变速器或多模式手动传动桥, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33960A | Shift lever actuator assembly | 33960-52010 · 33960-52011 |
| 33960B | Shift lever actuator breather plug | 90930-03114 |
| 89457B | gear shift sensor | 89457-52010 |
| 89457C | gear selector travel sensor | 89457-52010 |
