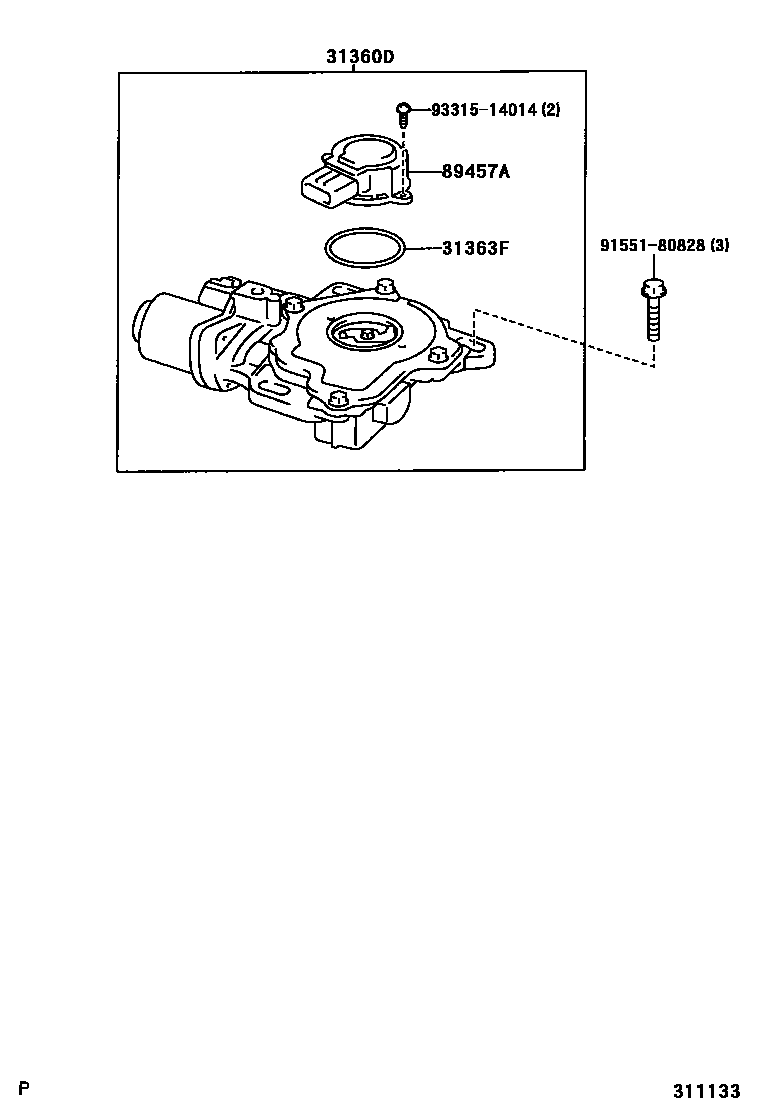

Toyota YARIS FREE TRONIC系统 — Figure 3106
Toyota YARIS EPC diagram 3106, FREE TRONIC系统, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31360D | Clutch actuator assembly | 31370-70020 |
| 31363F | O-ring (for clutch actuator pressure accumulator) | 90301-37010 |
| 89457A | clutch travel sensor | 89457-52020 |
