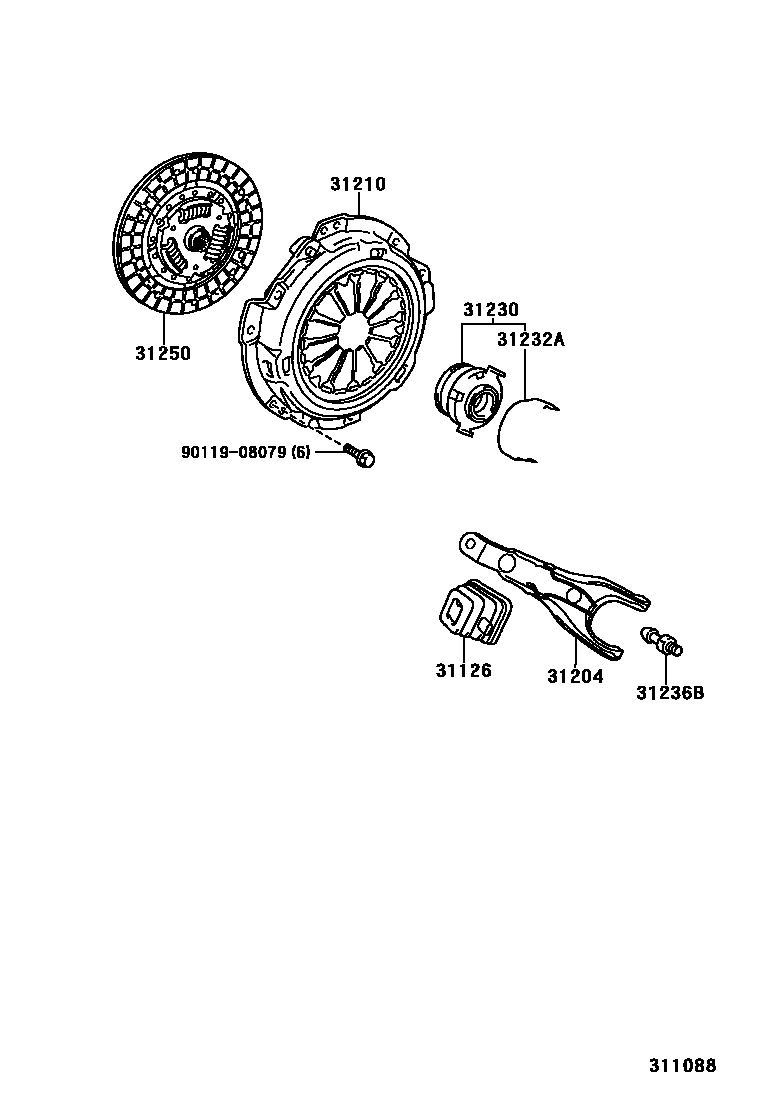

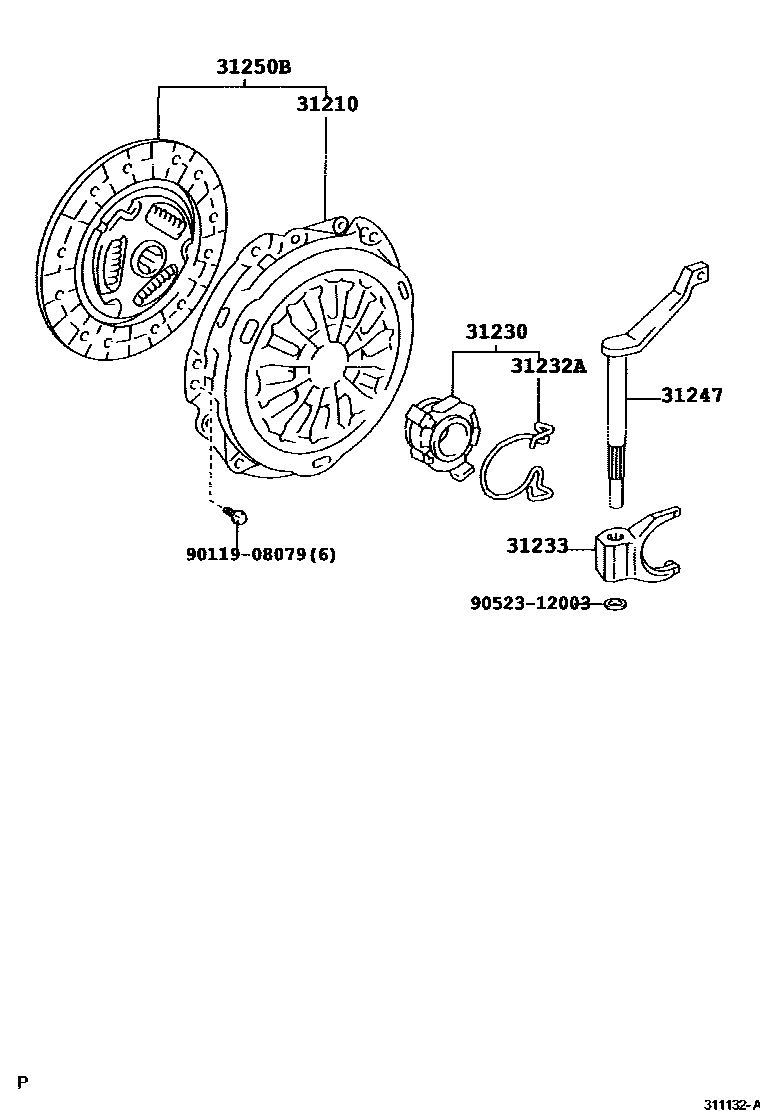

Toyota YARIS 离合器和分离叉 — Figure 3101
Toyota YARIS EPC diagram 3101, 离合器和分离叉, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-0D010 · 31126-12051 |
| 31204 | Clutch release fork assembly | 31204-12050 · 31204-52010 · 31204-52020 |
| 31210 | Clutch cover assembly | 31210-0D010 · 31210-0D030 · 31210-0D040 · 31210-52030 |
| 31230 | Clutch release bearing assembly | 31230-12180 · 31230-52010 · 31230-52011 · 31230-52031 · 31230-52032 |
| 31232A | Release bearing hub clip | 31232-12080 · 31232-52010 · 31232-52031 |
| 31233 | clutch release fork | 31233-52030 |
| 31236B | Split fork bracket | 31236-12011 · 31236-12020 · 31236-52010 |
| 31247 | Clutch release fork lever | 31247-52010 |
| 31250 | Clutch disc assembly | 31250-0D010 · 31250-0D030 · 31250-0D040 · 31250-0D050 · 31250-0D051 · 31250-0D060 |
| 31250B | Adjustable clutch disc assembly | 31250-59010 · 31250-59625 |
