Toyota YARIS 喷油泵总成 — Figure 2202

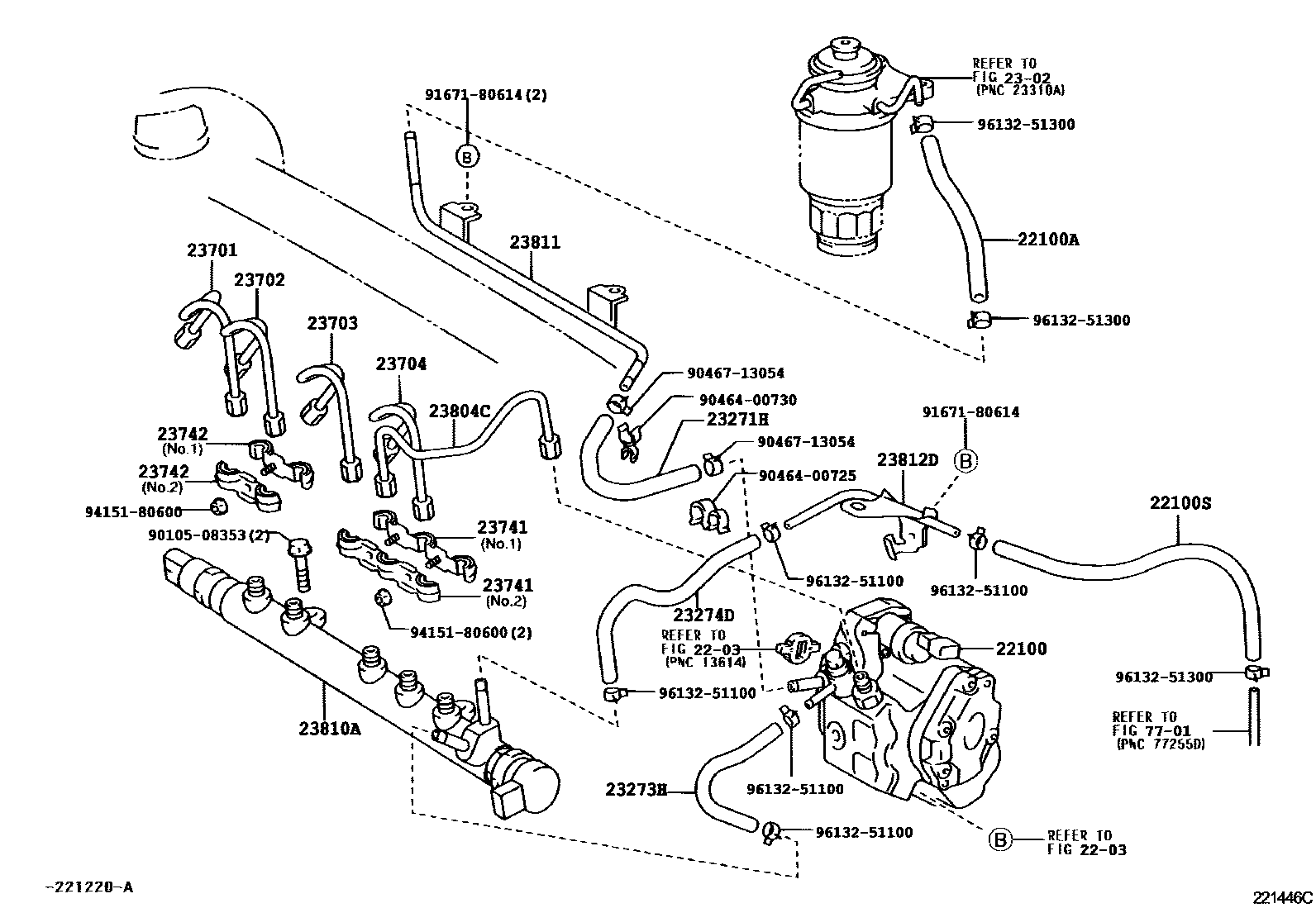

Toyota YARIS EPC diagram 2202, 喷油泵总成, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-0N010 · 22100-0N011 · 22100-33010 · 22100-33011 |
| 22100S | Fuel hose (for injection pump to fuel pipe) | 23273-33030 |
| 23271H | No. 1 fuel hose | 23271-33010 |
| 23273H | No. 2 fuel hose | 23273-33020 |
| 23274D | No. 3 fuel hose | 23274-33010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-0N010 · 23701-33010 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23701-0N020 · 23701-33020 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23701-0N020 · 23701-33020 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23701-0N020 · 23701-33020 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-33010 · 23741-33020 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-33010 · 23742-33020 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-0N010 · 23804-33010 |
| 23810A | Common rail assembly | 23810-0N010 · 23810-33010 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-33050 |
| 23812D | No. 2 fuel pipe | 23812-33010 |
