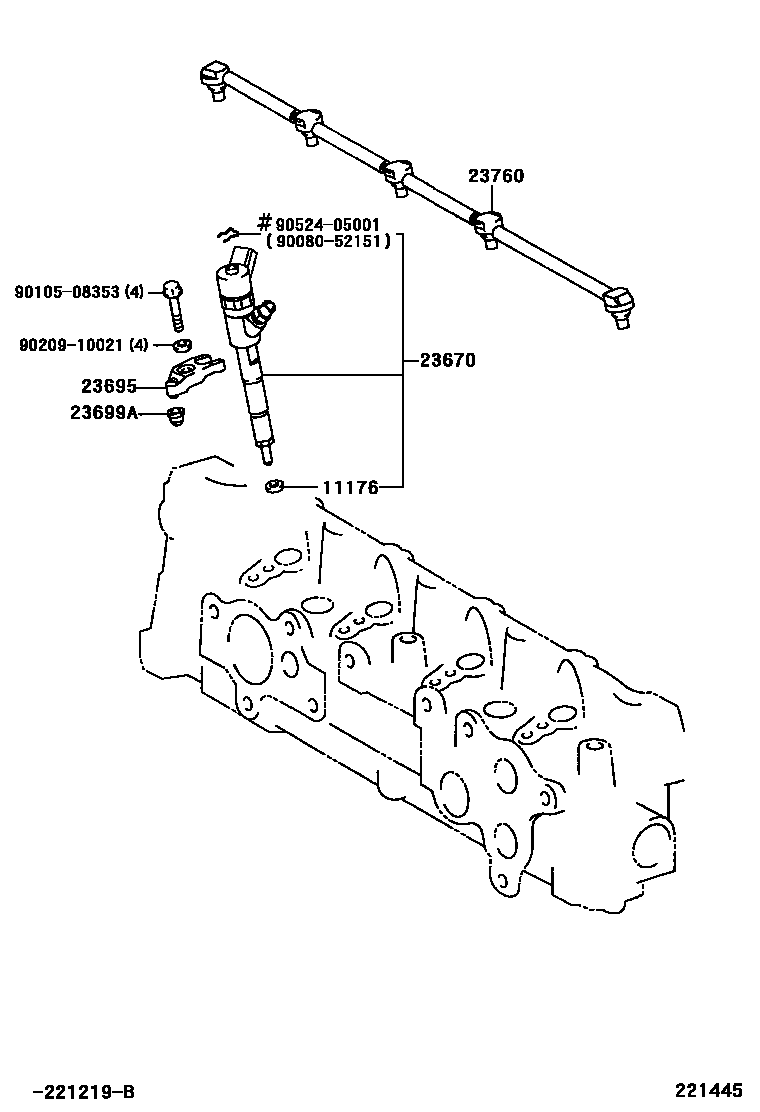

Toyota YARIS 喷油嘴 — Figure 2201
Toyota YARIS EPC diagram 2201, 喷油嘴, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11176 | Injector seat | 11176-33010 |
| 23695 | No. 1 injector body clamp | 23695-0N010 · 23695-33010 |
| 23699A | Injector body clamp seat | 23699-33010 · 23699-74010 |
| 23760 | Fuel injector overflow pipe assembly | 23760-0N010 · 23760-33010 |
