Toyota YARIS 起动机 — Figure 1904

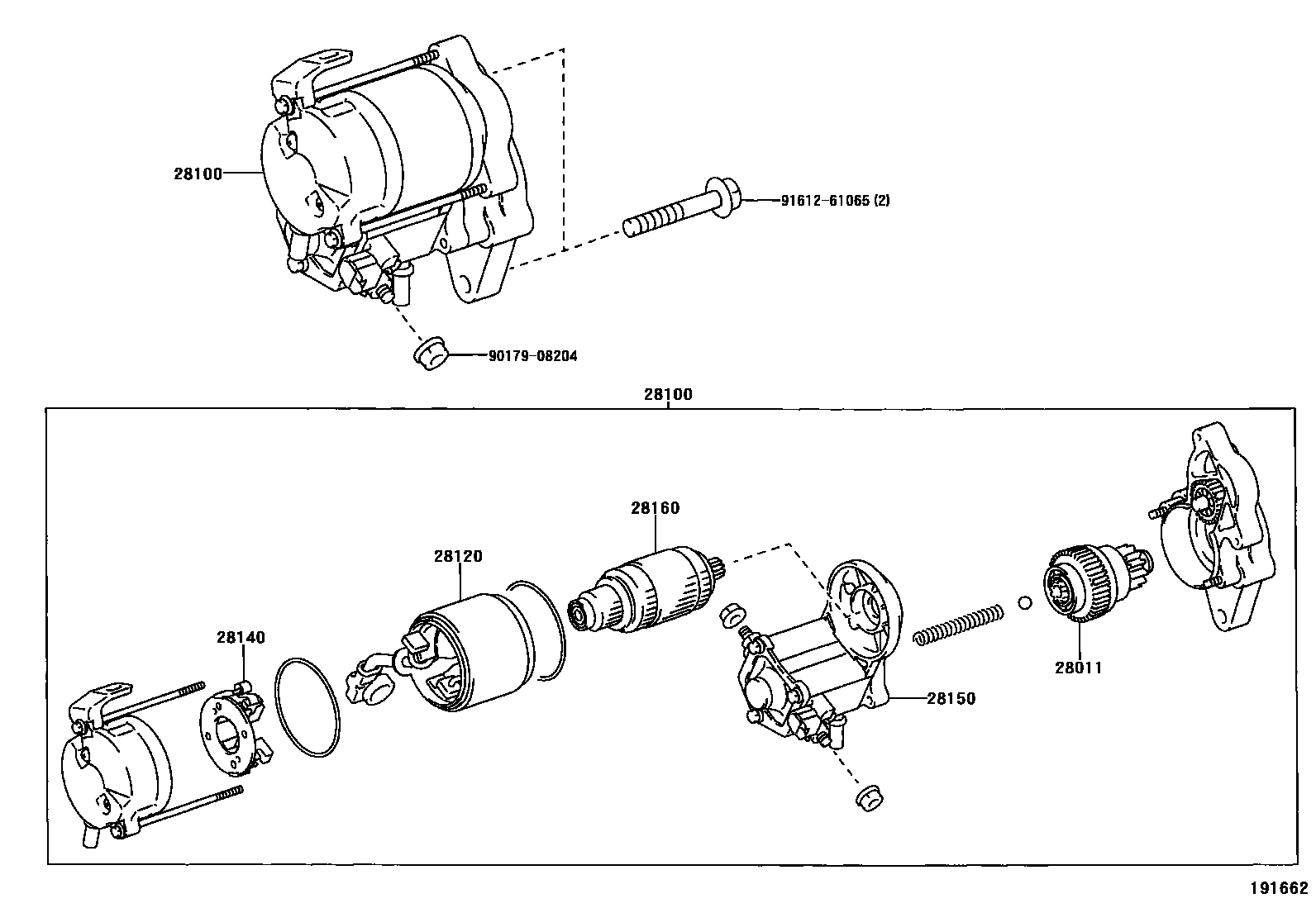

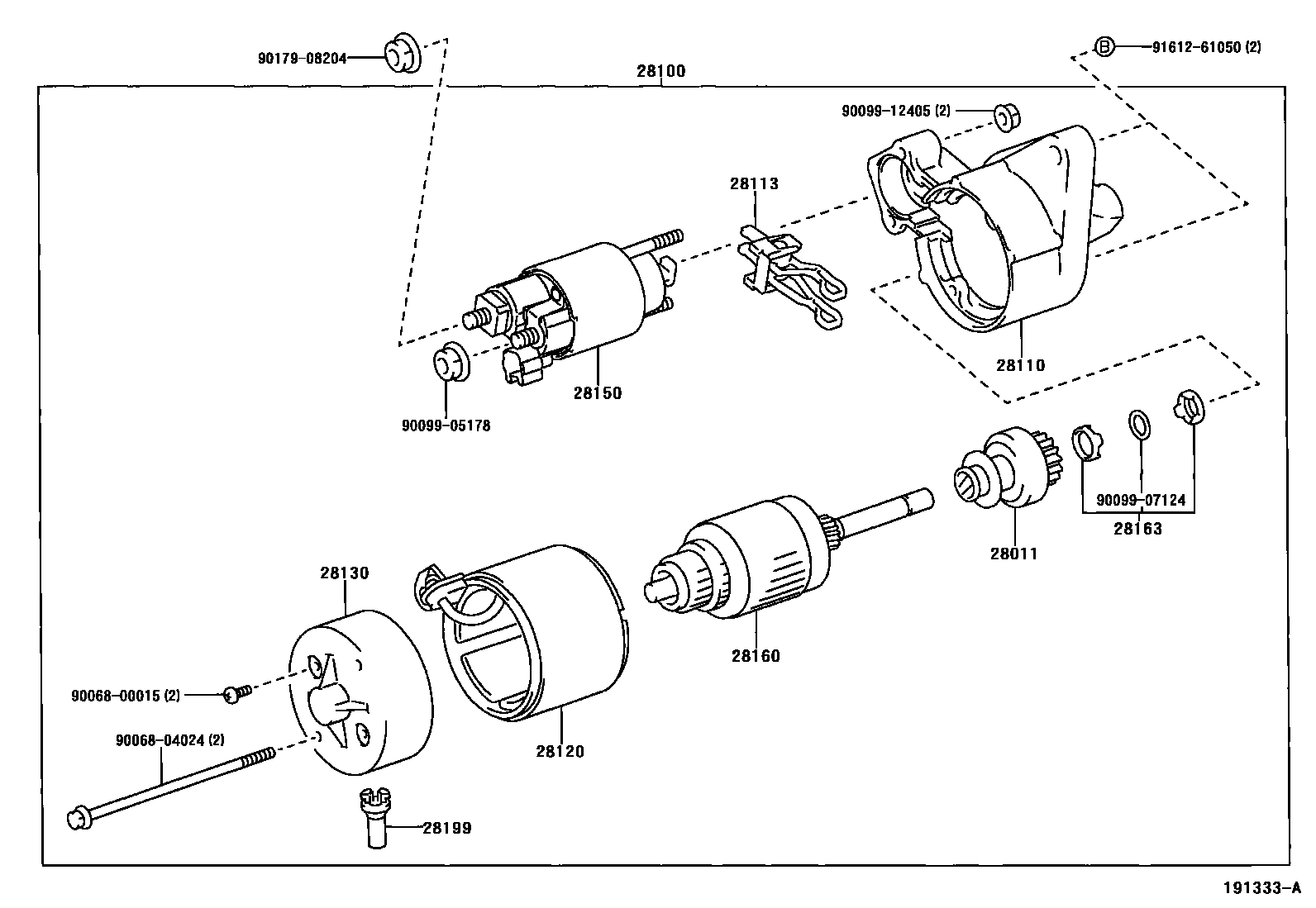

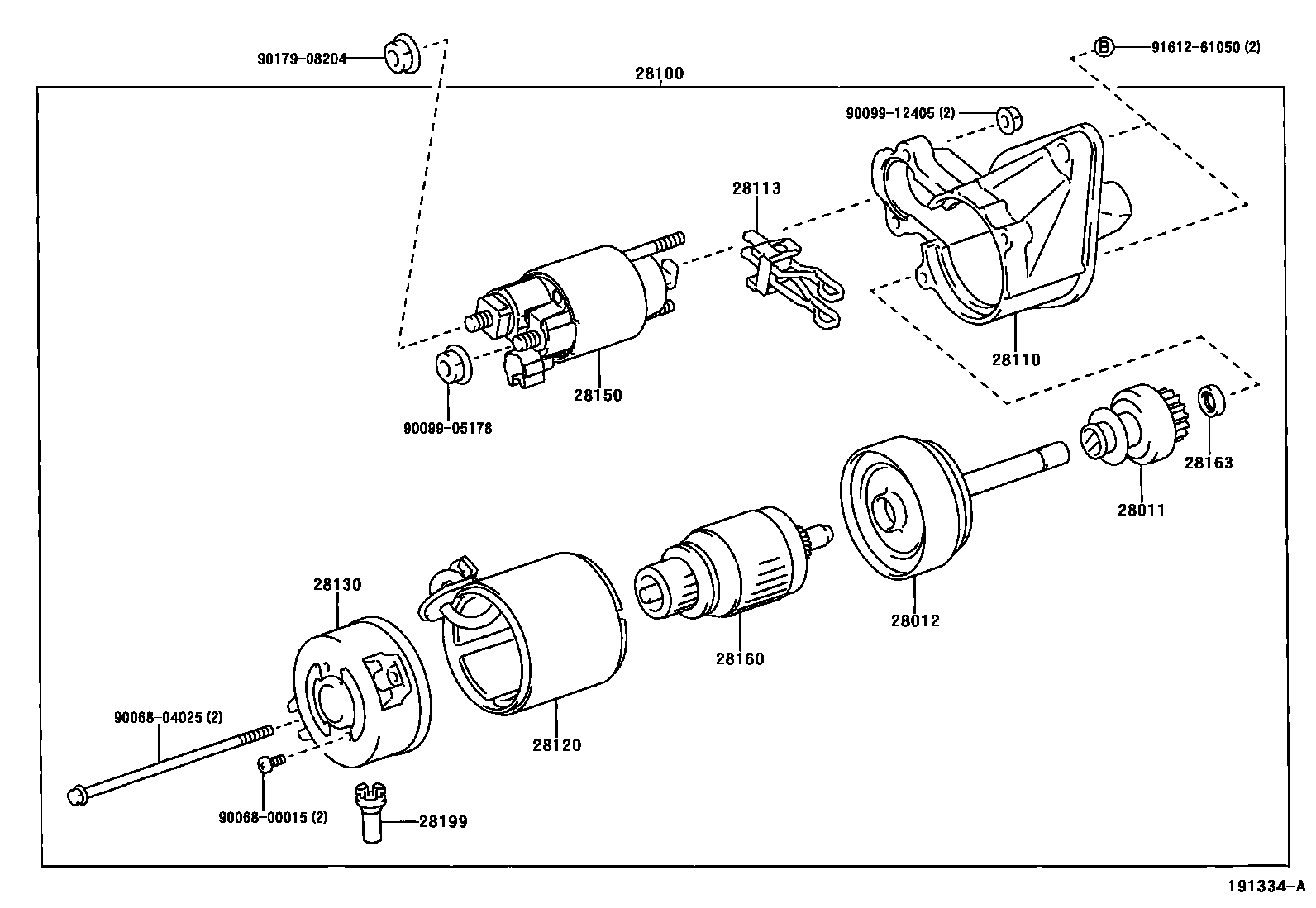

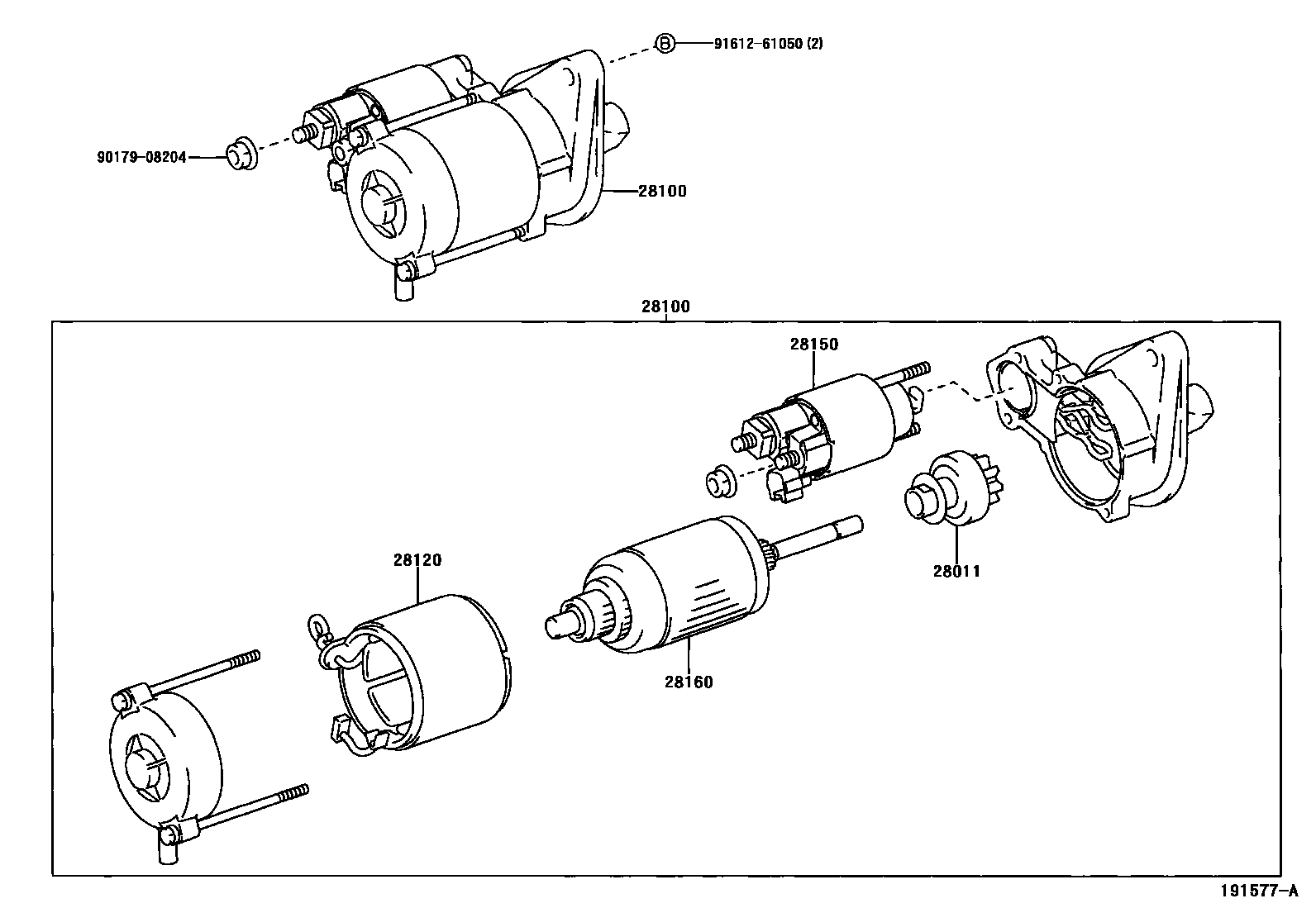

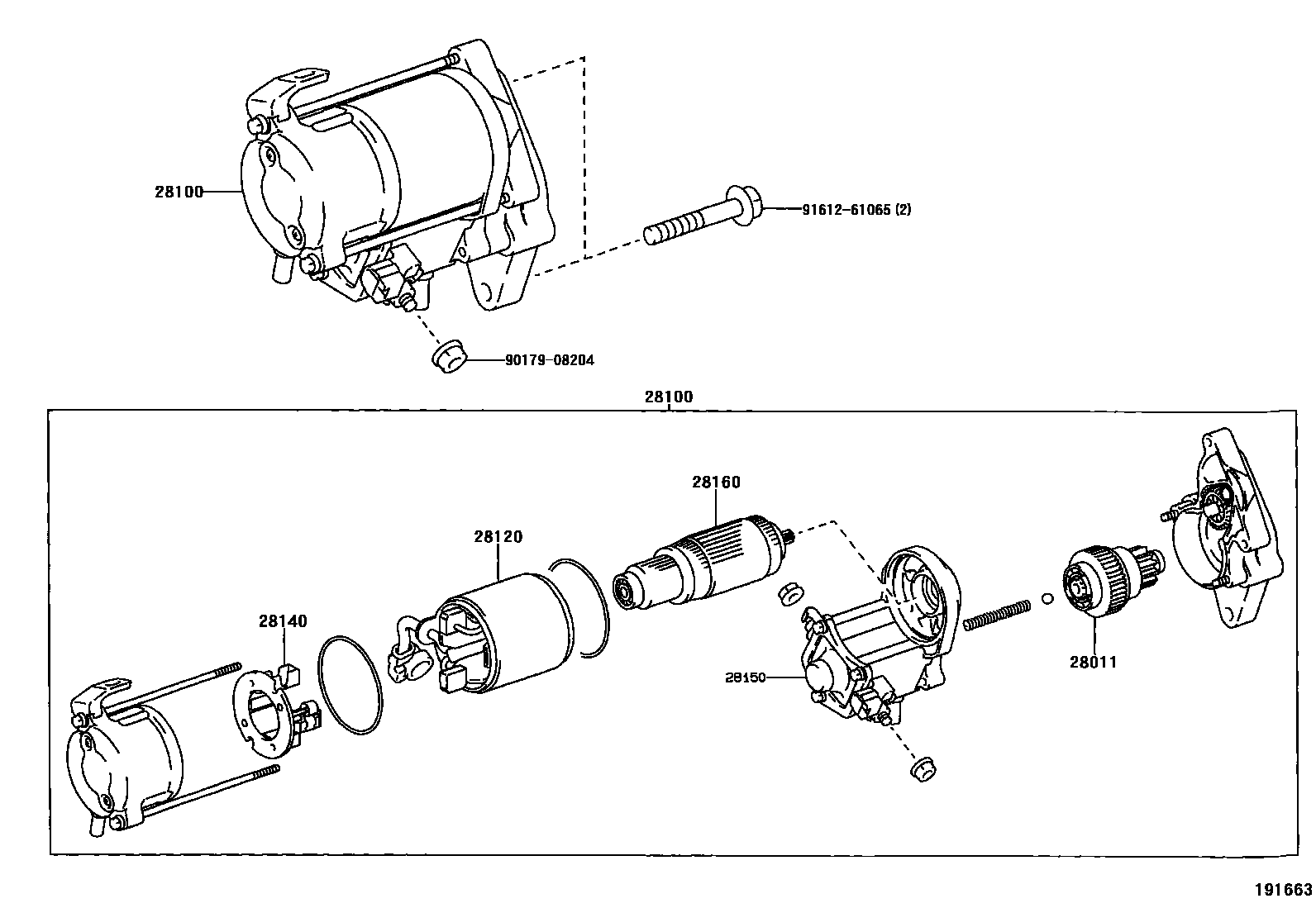

Toyota YARIS EPC diagram 1904, 起动机, with 5 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-0J010 · 28011-0J020 · 28011-55050 · 28011-55060 |
| 28012 | Intermediate bearing sub-assembly | 28012-0J020 |
| 28100 | Starter assembly | 28100-0J010 · 28100-0J020 · 28100-23040 · 28100-33040 · 28100-33050 |
| 28110 | Starter drive end housing assembly | 28110-0J010 · 28110-0J020 |
| 28113 | starter pinion drive rod | 28113-0J010 · 28113-0J020 |
| 28120 | Starter yoke assembly | 28120-0J010 · 28120-0J020 · 28120-54380 · 28120-66040 |
| 28130 | Starter commutator end frame assembly | 28130-0J010 · 28130-0J020 |
| 28140 | Starter brush holder assembly | 28140-54380 · 28140-76070 |
| 28150 | Starter electromagnetic switch assembly | 28150-16160 · 28150-33040 · 28150-46220 |
| 28160 | Starter armature assembly | 28160-0J010 · 28160-0J020 · 28160-54380 · 28160-74070 |
| 28163 | Starter pinion snap nut or snap ring | 28163-0J020 · 28163-10021 |
| 28199 | starter cover | 28199-0J010 |
