Toyota YARIS 点火线圈和火花塞 — Figure 1901
Toyota YARIS EPC diagram 1901, 点火线圈和火花塞, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

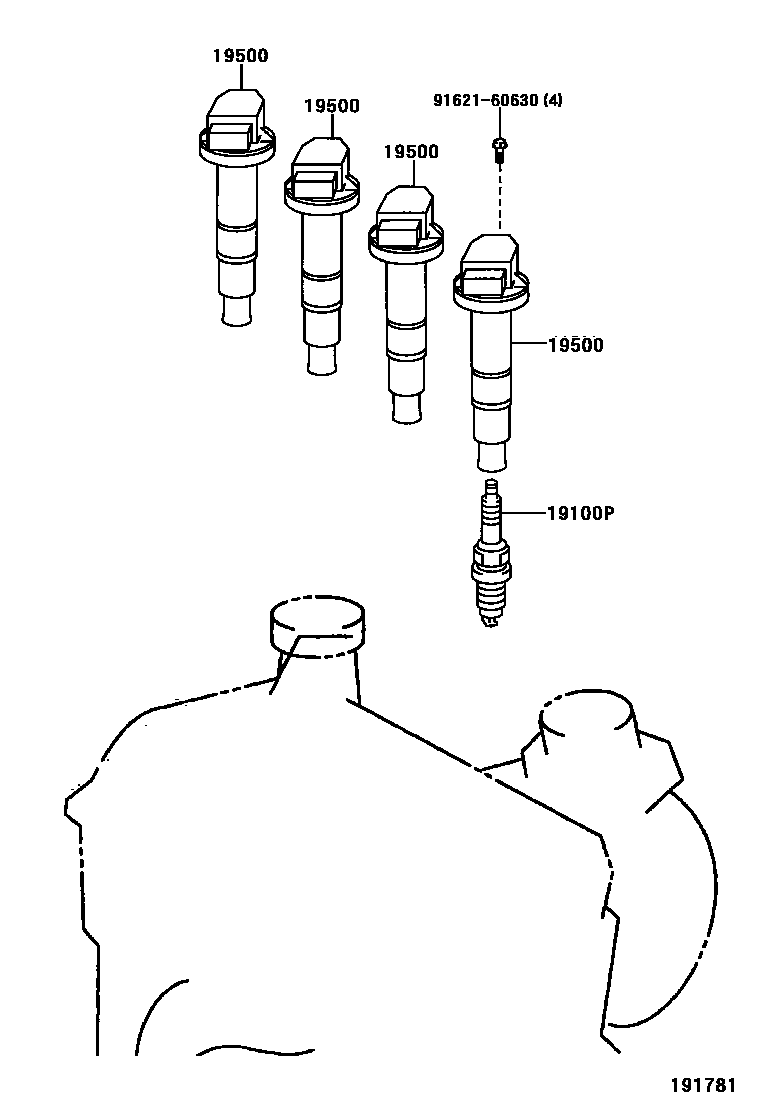

| 19100P | spark plug | 90080-91204 · 90080-91229 · 90919-01176 · 90919-01184 |
| 19500 | Ignition coil assembly | 90080-19021 · 90919-02240 |

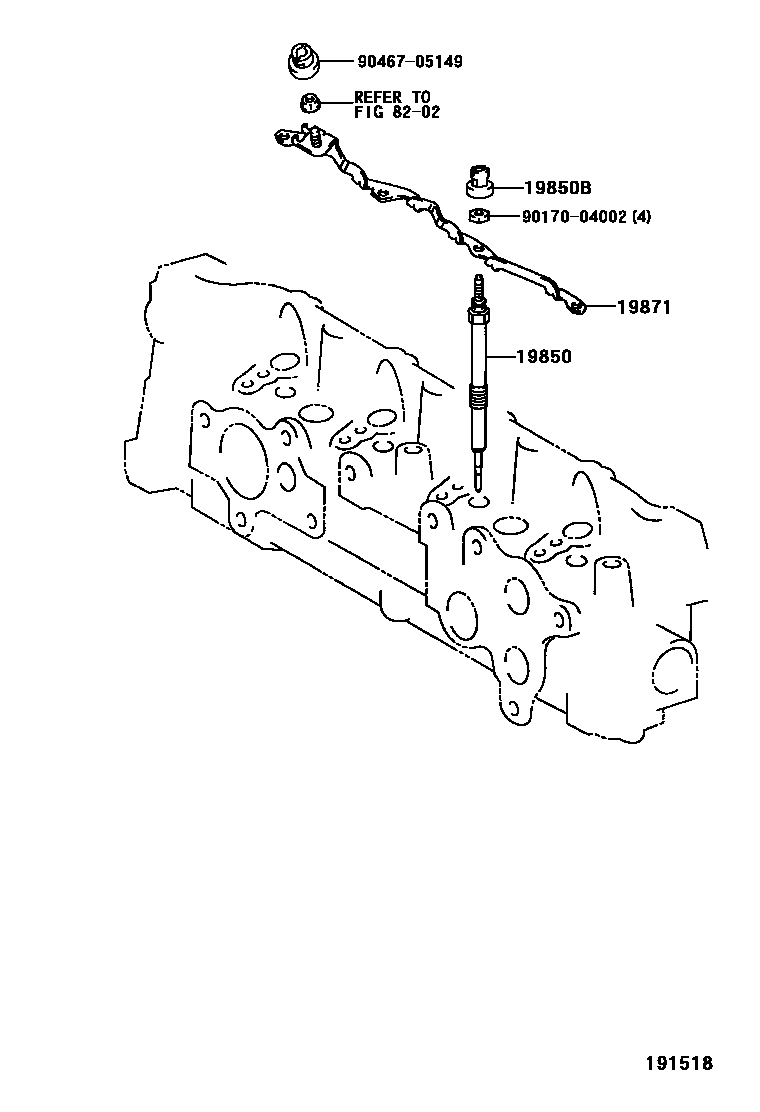

| 19850 | Glow plug assembly | 19850-0W010 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-33010 |
