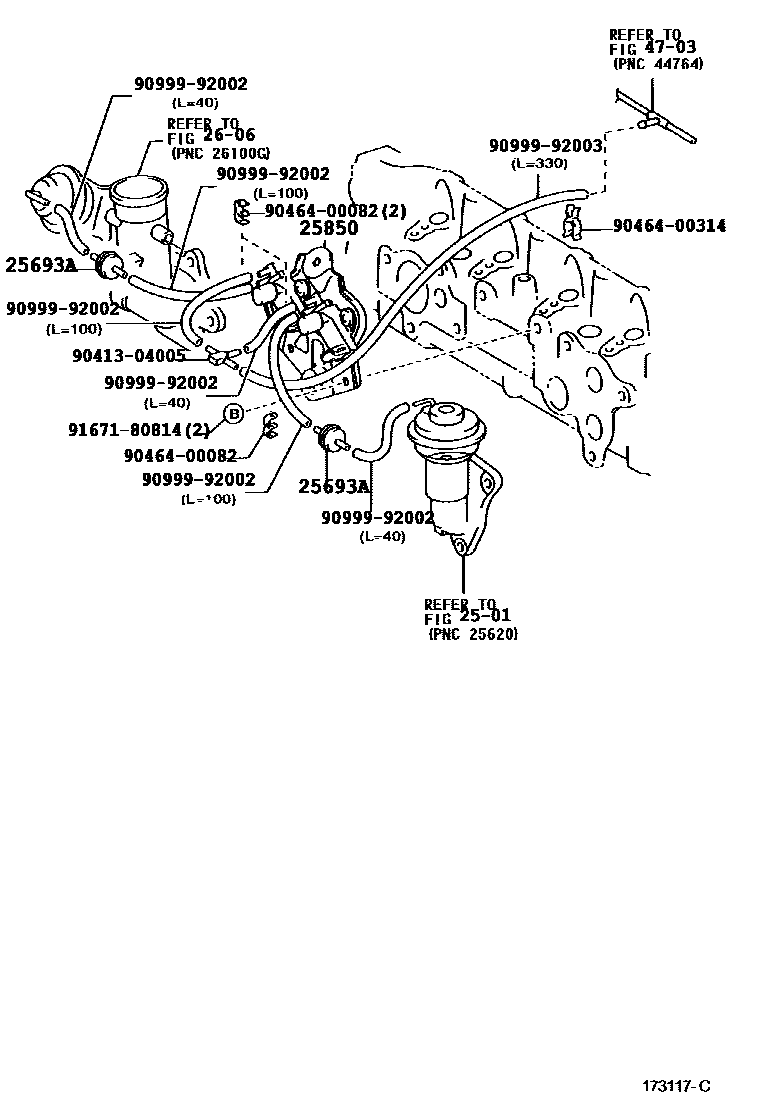

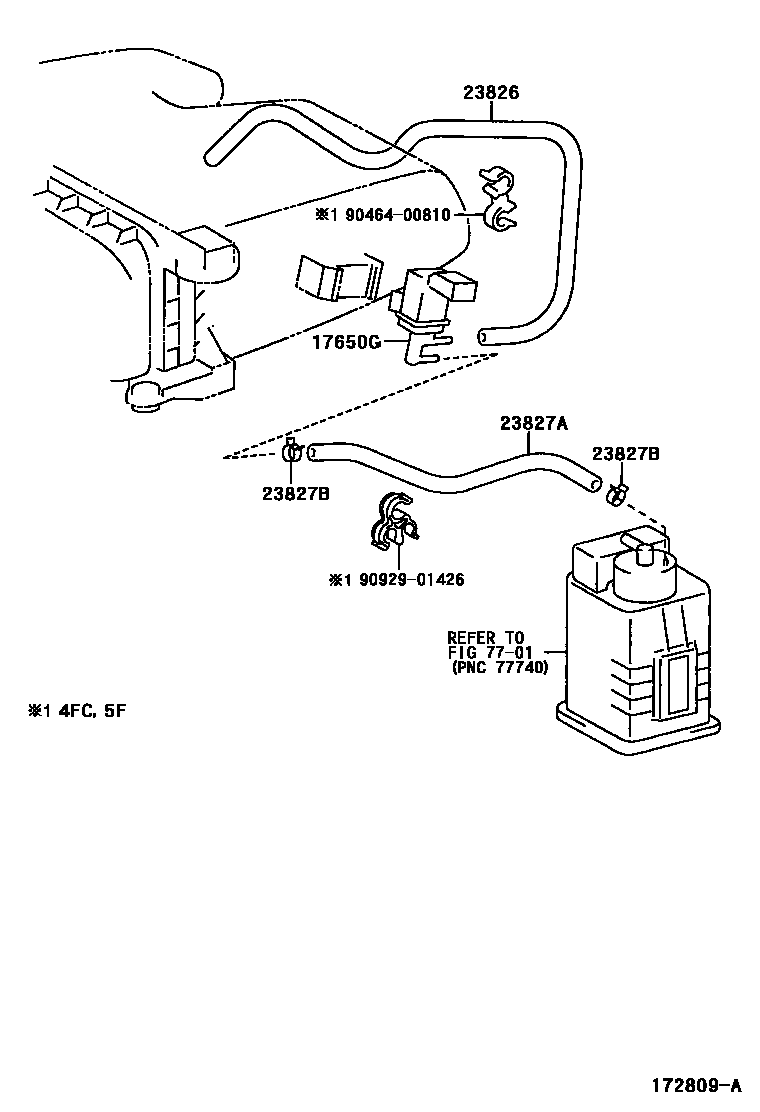

Toyota YARIS vacuum tube — Figure 1708
Toyota YARIS EPC diagram 1708, vacuum tube, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12247 |
| 23826 | No. 1 fuel vapor supply hose | 23826-23030 · 23826-23031 · 23826-23040 |
| 23827A | No. 2 fuel vapor supply hose | 23827-23020 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-41300 · 96132-51300 |
| 25693A | EGR vacuum regulator shock absorber | 25693-58010 |
| 25850 | Electronic vacuum regulating valve assembly | 25850-33010 |
