Toyota YARIS Manifold — Figure 1701

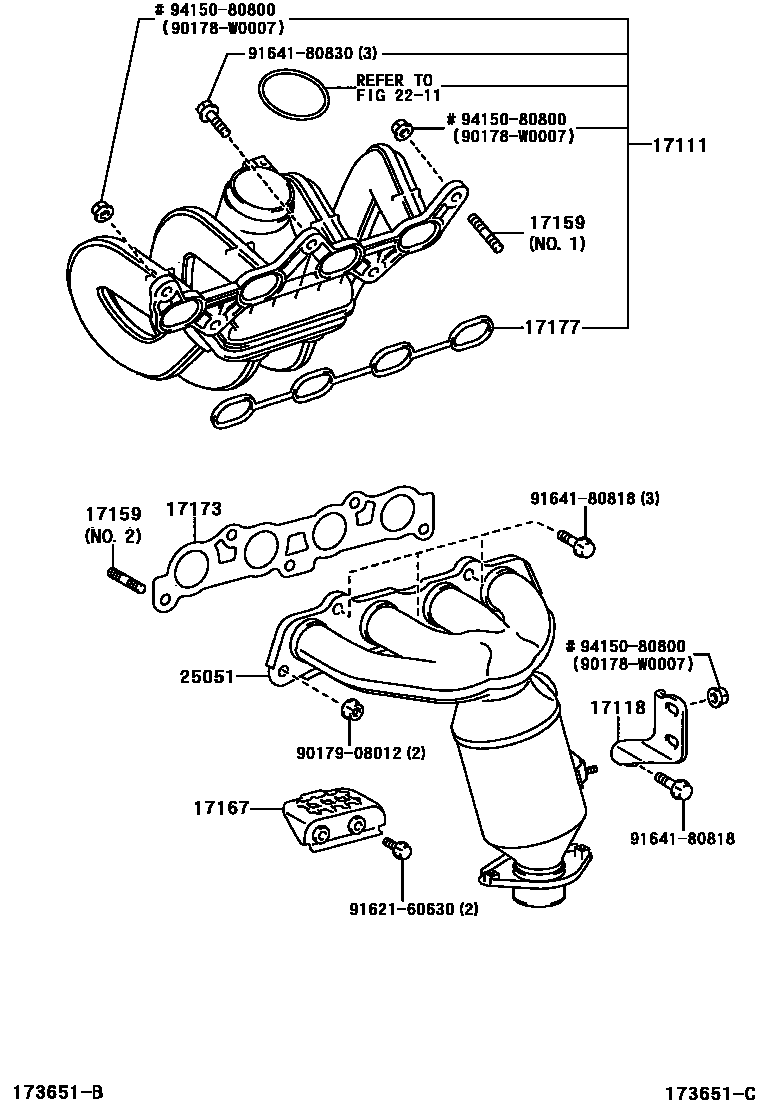

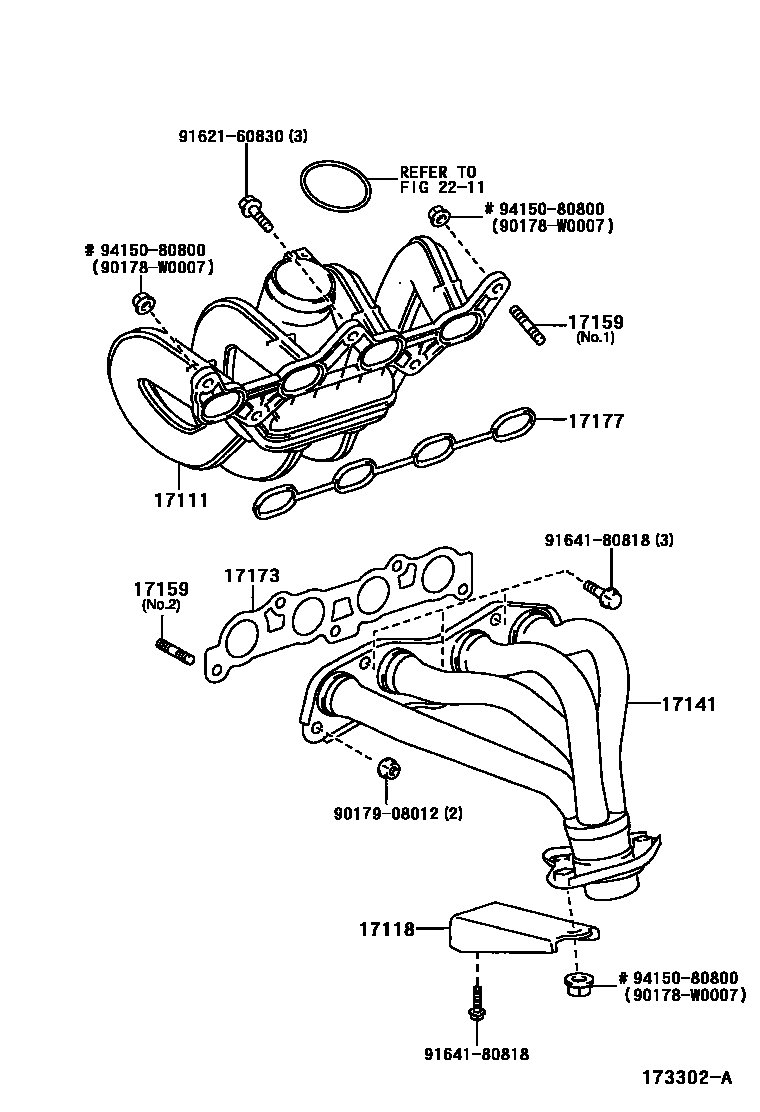

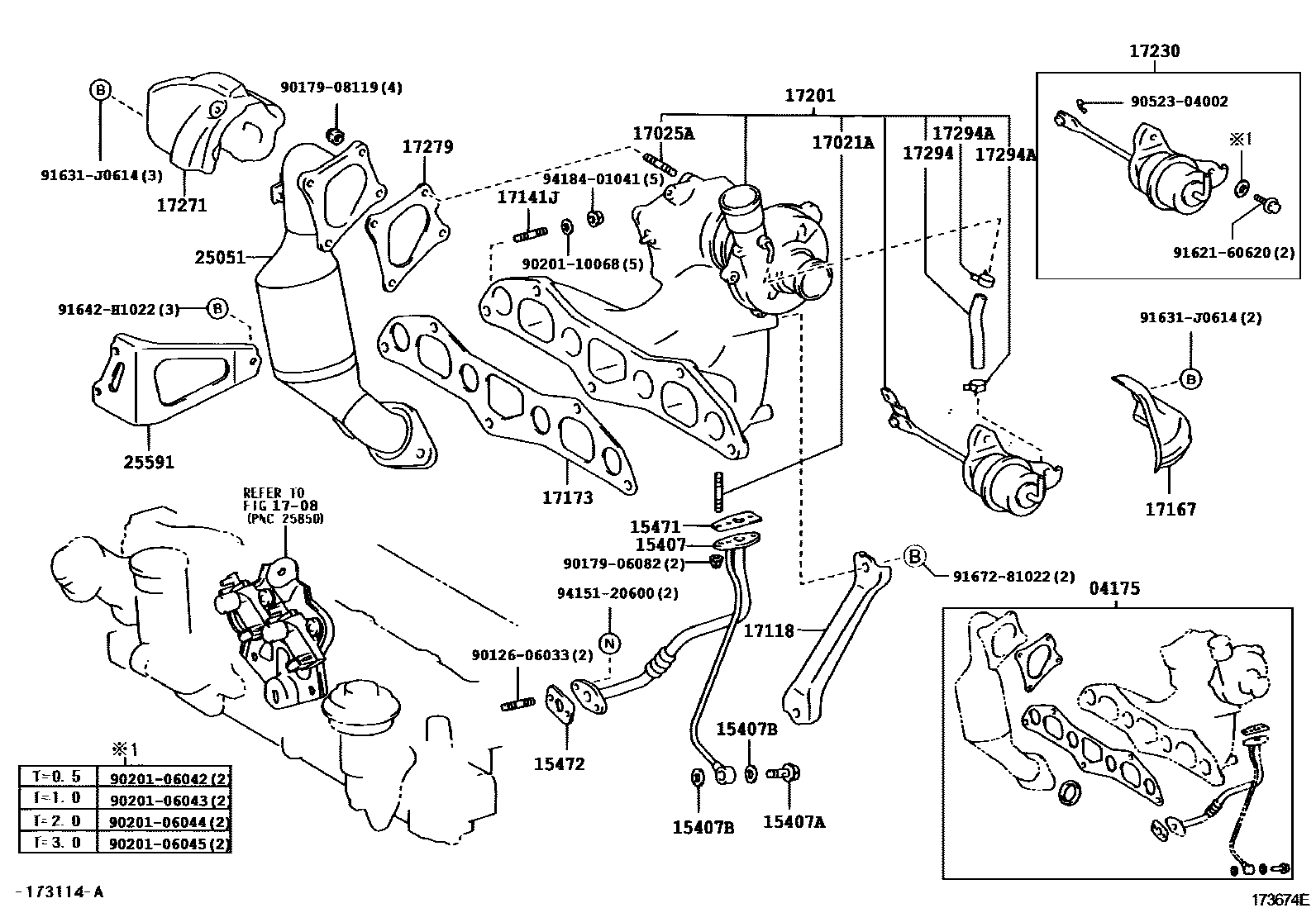

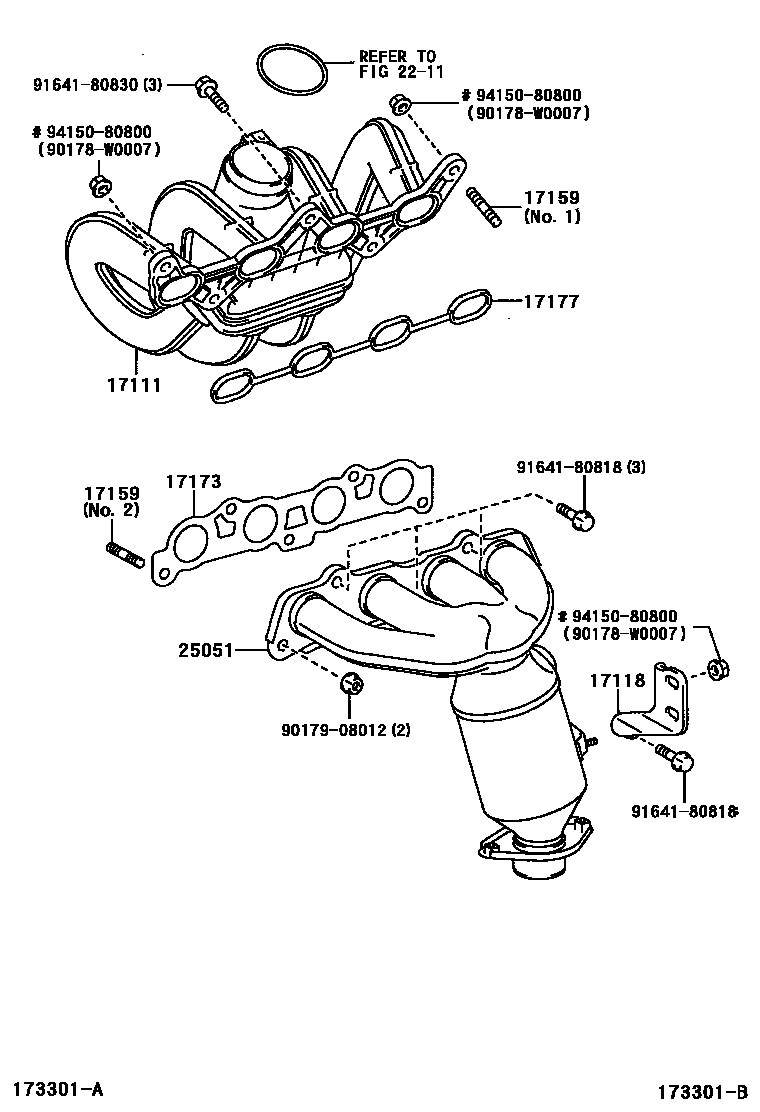

Toyota YARIS EPC diagram 1701, Manifold, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-09010 · 04175-0N010 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-33010 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-10006 · 90401-10065 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-10027 |
| 15471 | Turbine oil inlet pipe gasket | 15471-30010 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-33010 |
| 17021A | Stud bolts (for bearing housing) | 90116-06048 |
| 17025A | Stud bolts (for turbine housing) | 90116-08260 |
| 17111 | Intake Manifold | 17101-23010 · 17101-23011 · 17101-23020 · 17120-0J010 |
| 17118 | Manifold stays | 17118-23010 · 17118-23030 · 17118-33010 |
| 17141 | exhaust manifold | 17104-0J010 · 17141-23040 |
| 17141J | Studs (for right exhaust manifold) | 90126-10018 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08395 · 92122-60825 · 92122-80825 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-23020 · 17167-33010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0J010 · 17173-0N010 · 17173-23010 · 17173-33010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-0J010 · 17177-23020 |
| 17201 | Turbocharger sub-assembly | 17201-33010 |
| 17230 | Actuator assembly with bracket | 17230-39015 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-33010 |
| 17279 | Turbine outlet elbow gasket | 17279-0N010 |
| 17294 | Actuator hose | 90445-12158 |
| 17294A | Clamp (for actuator hose) | 96132-51100 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0J010 · 25051-0N010 |
| 25591 | Manifold bracket | 25591-21020 |
