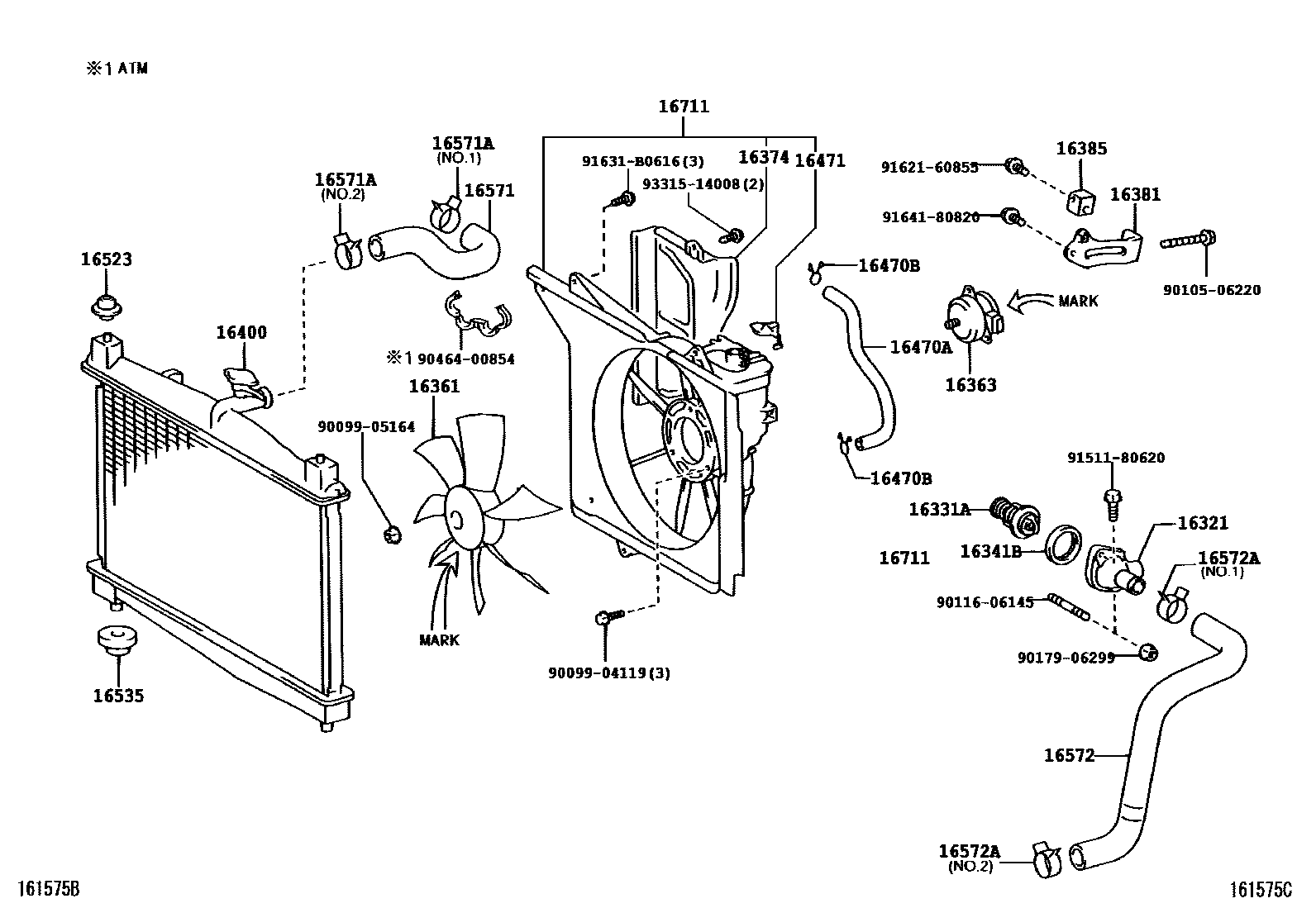

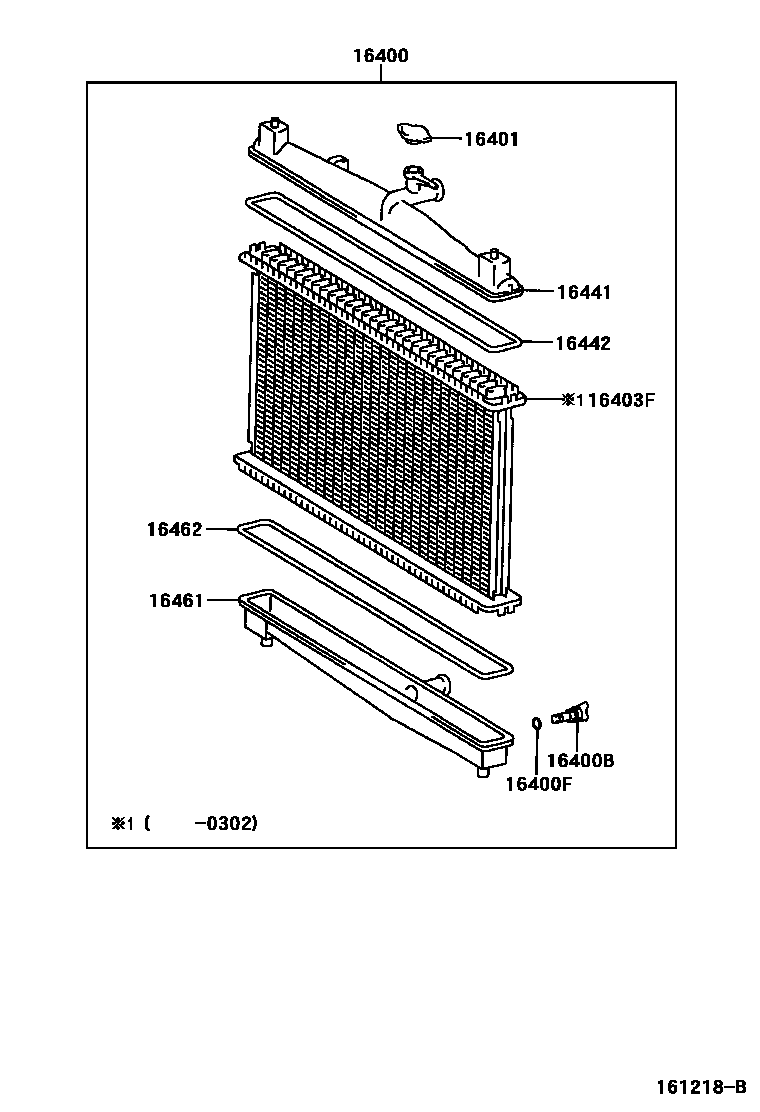

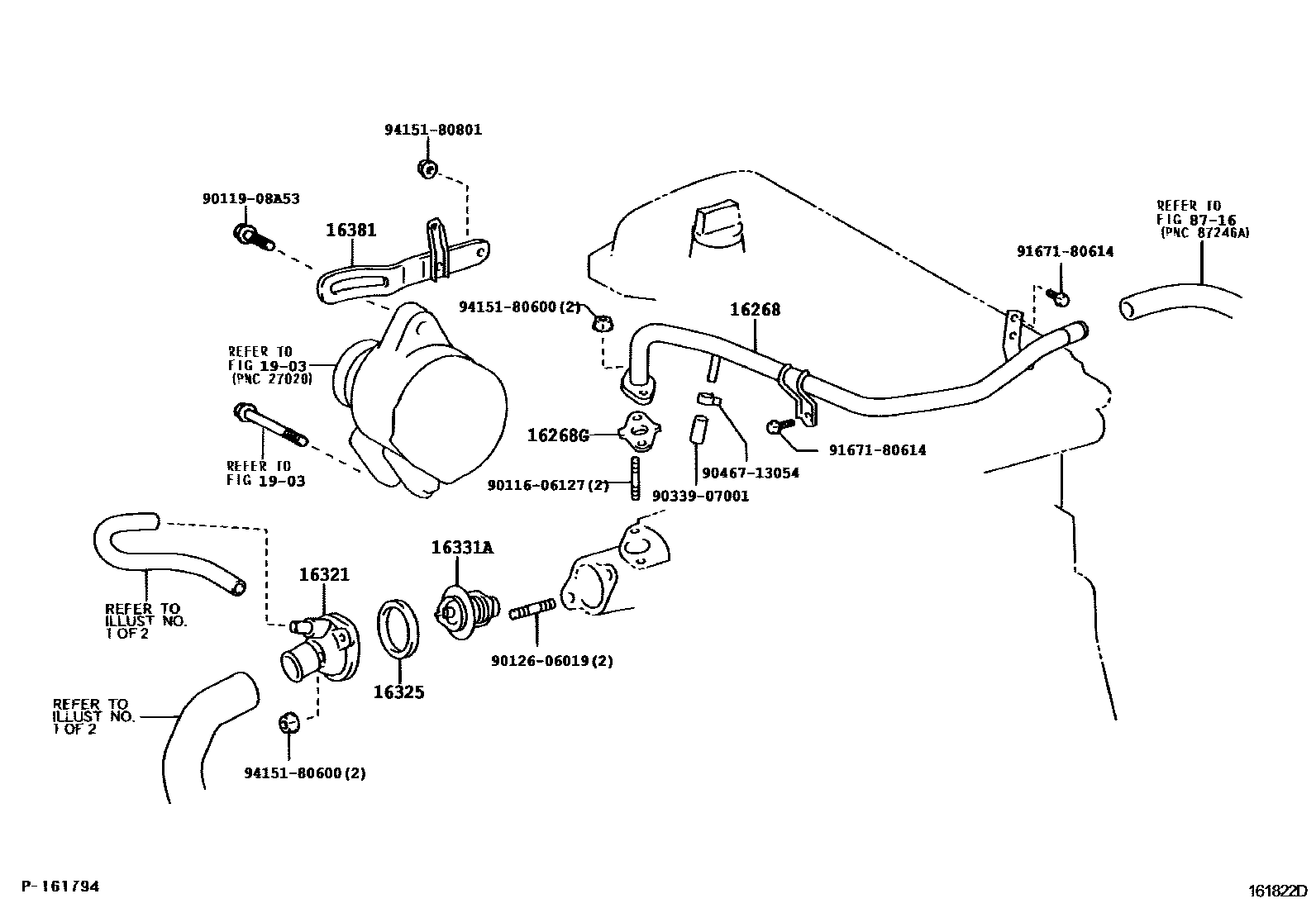

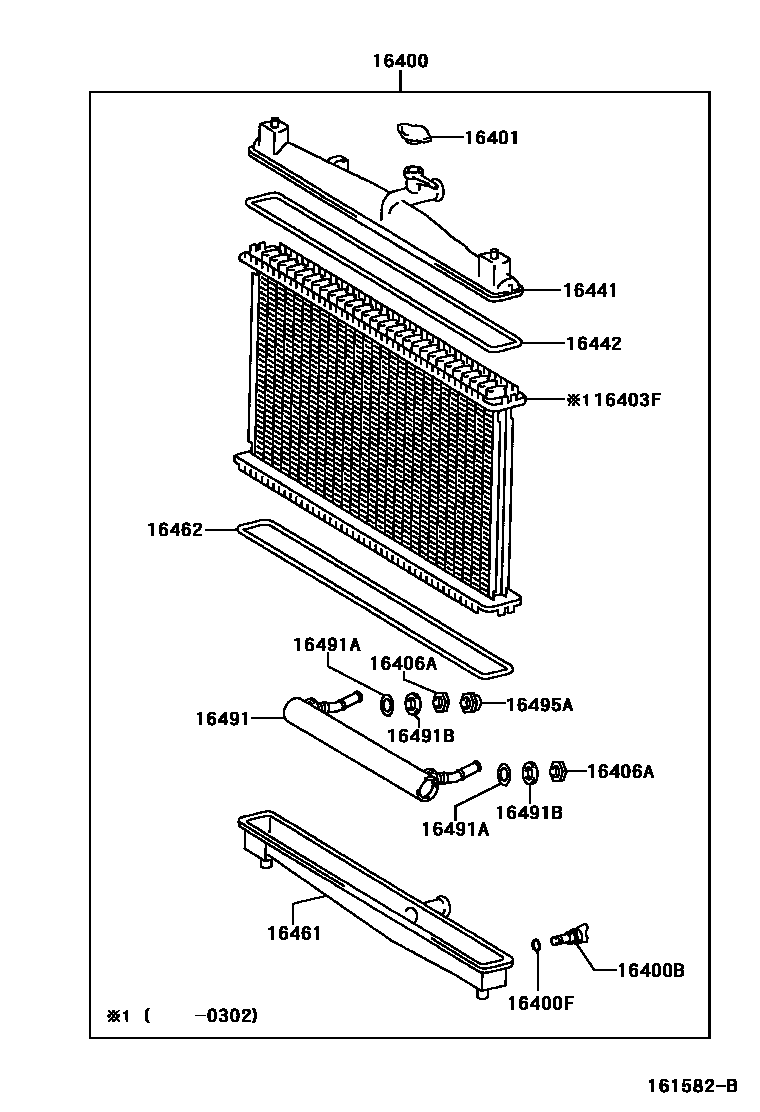

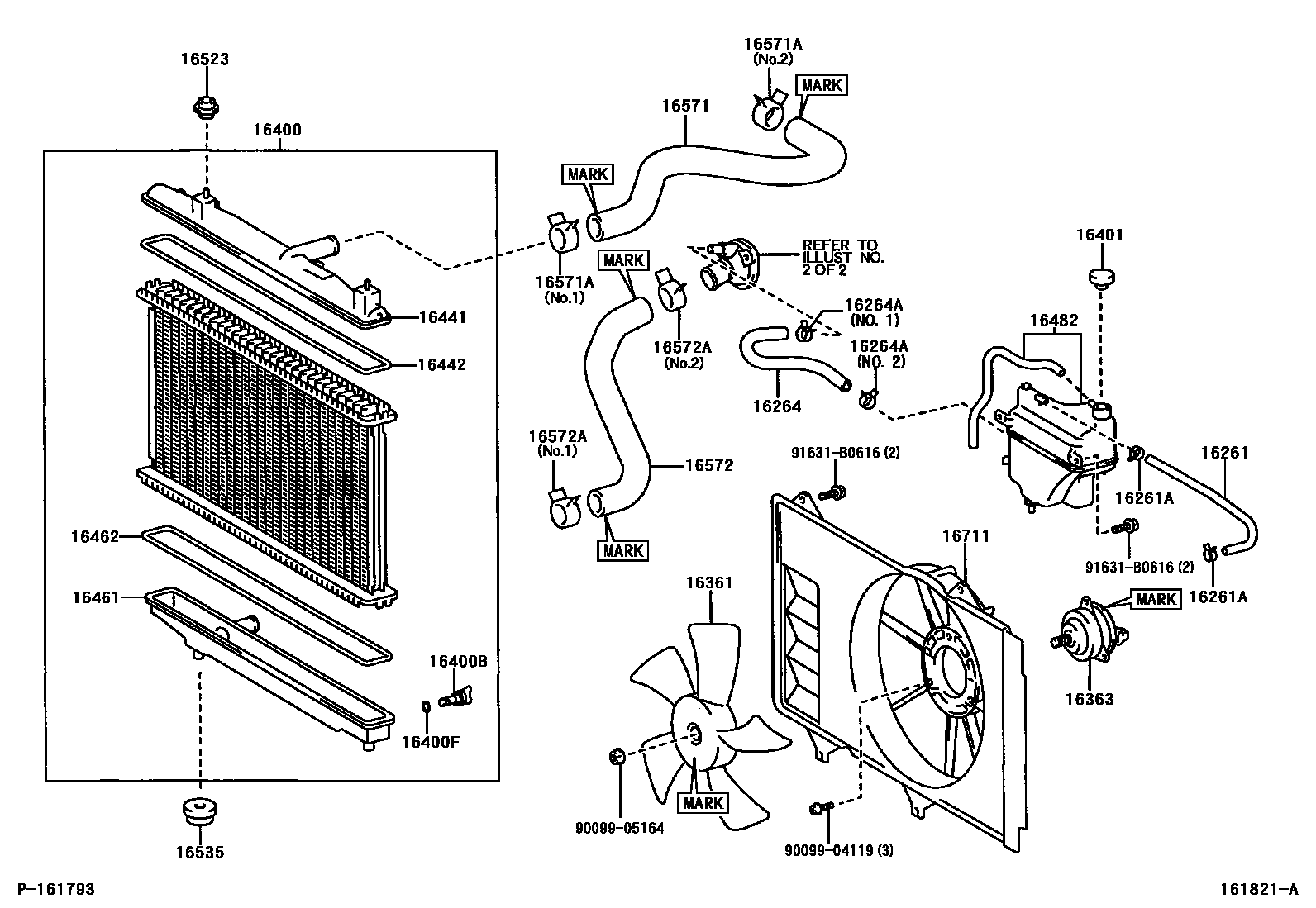

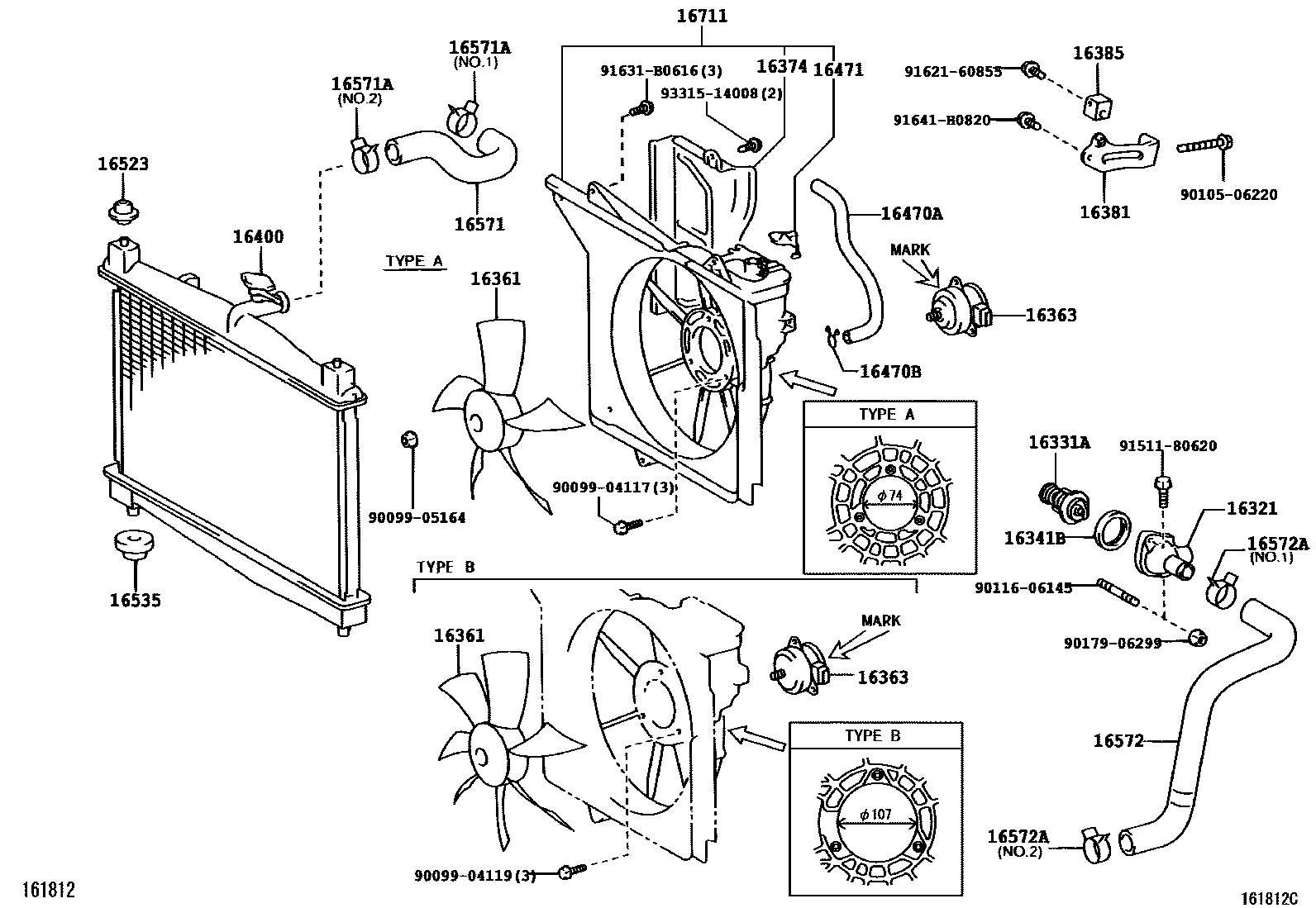

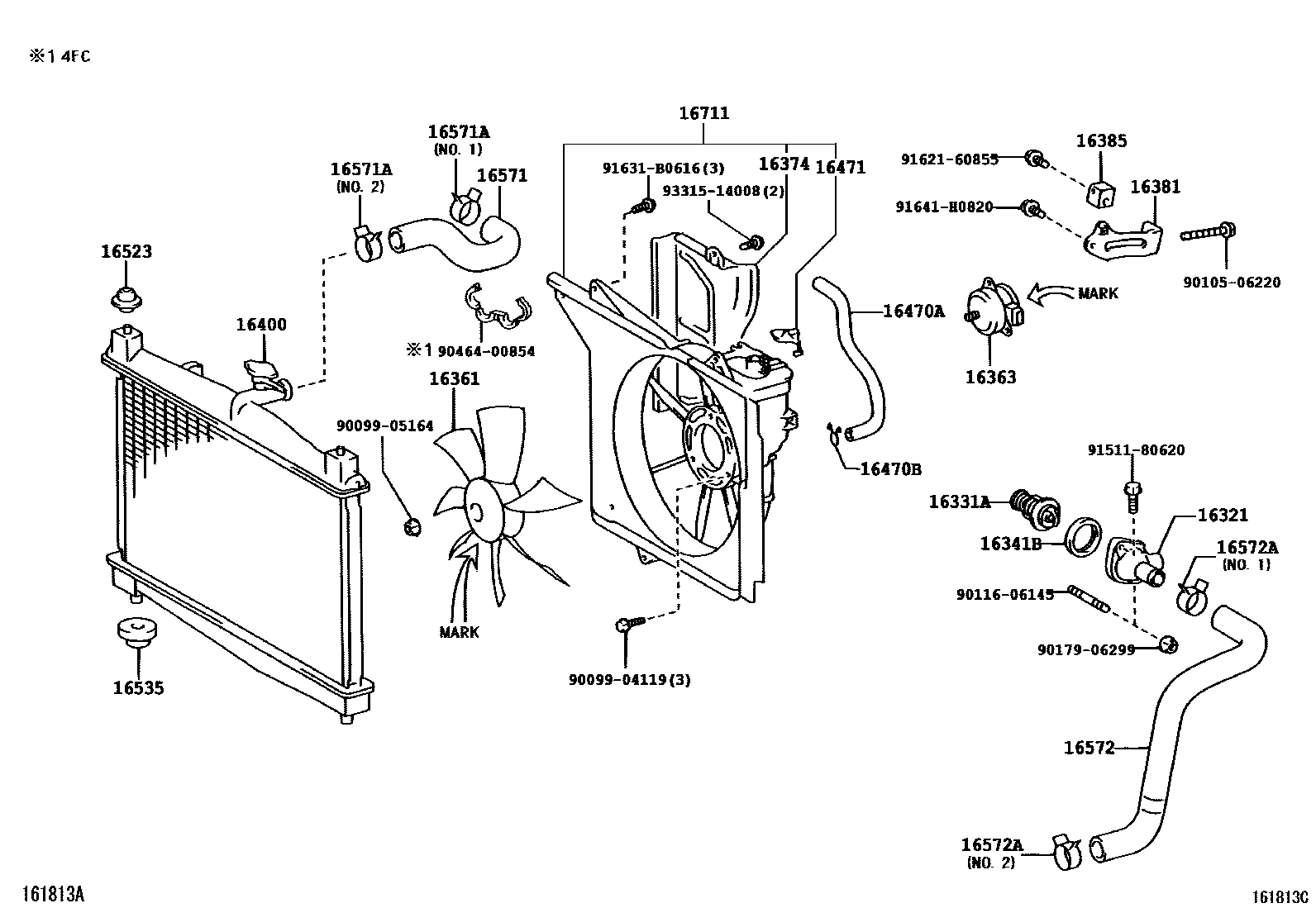

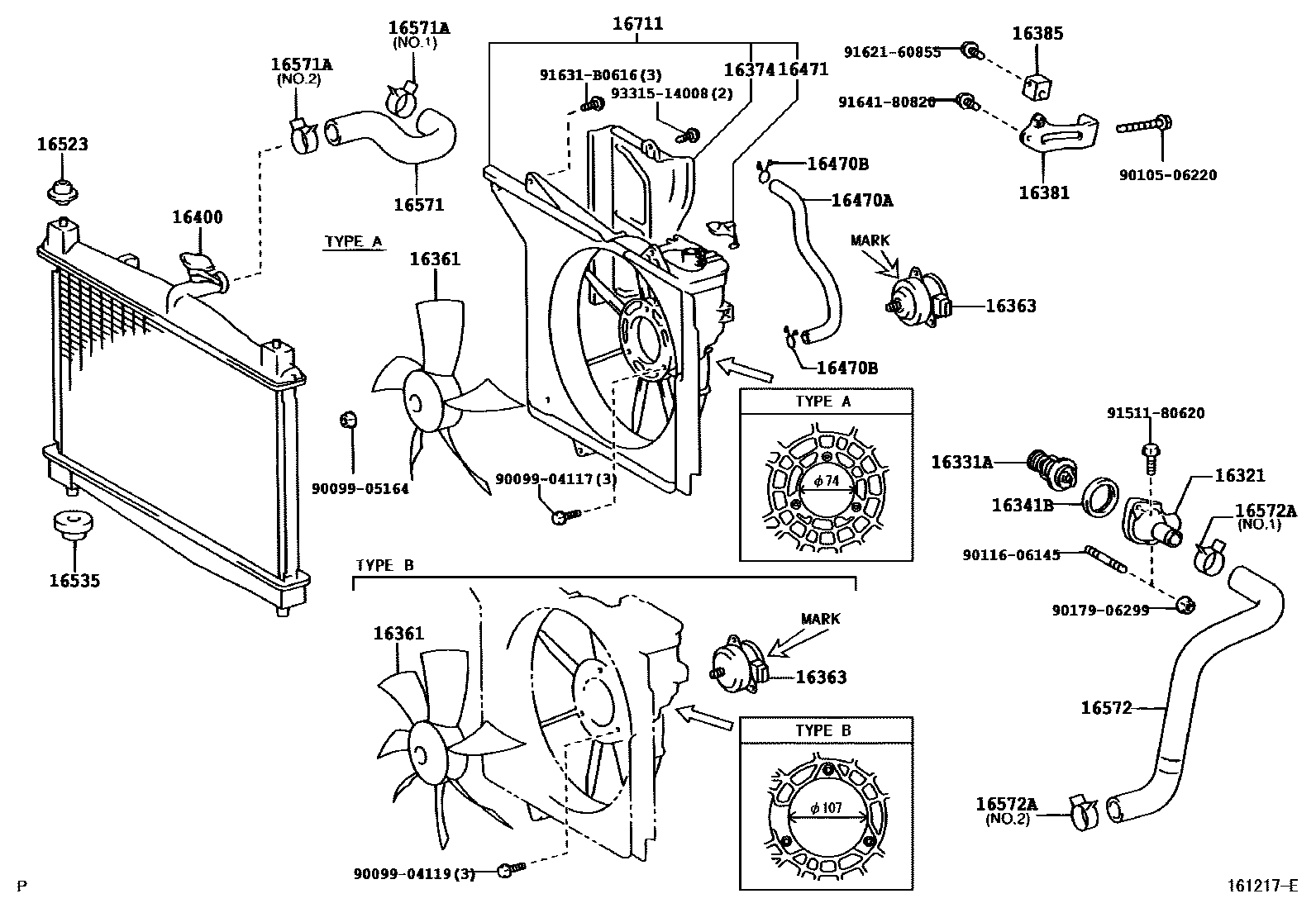

Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603
Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 8 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-0N010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96135-51300 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0N010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-21001 · 90467-21010 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-33010 |
| 16268G | Gasket (for water bypass pipe) | 16258-0D020 · 16258-21020 |
| 16321 | water inlet | 16031-33010 · 16321-0J010 · 16321-23010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0D010 |
| 16331A | thermostat | 90916-03093 · 90916-03122 |
| 16341B | water inlet gasket | 16341-35010 |
| 16361 | Fan | 16361-0J010 · 16361-0J020 · 16361-0N010 · 16361-21050 · 16361-23050 · 16361-28050 |
| 16363 | cooling fan motor | 16363-0G050 · 16363-0H030 · 16363-0J010 · 16363-0J020 · 16363-23010 · 16363-23020 · 16363-23030 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-0J010 · 16366-23010 |
| 16381 | Fan belt adjustment lever | 16381-0J010 · 16381-0N010 |
| 16385 | Fan belt adjustment slider | 16385-23010 |
| 16400 | Radiator assembly | 16400-0J010 · 16400-0J020 · 16400-0J050 · 16400-0N011 |
| 16400B | Radiator drain switch screw plug | 90080-34010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-53010 · 16401-62100 |
| 16403F | Radiator core sub-assembly | 16403-0J010 · 16403-0J020 |
| 16406A | Bracket (for transmission oil cooler) | 16406-74520 |
| 16441 | Radiator water tank | 16441-0J010 · 16441-0N011 |
| 16442 | O-ring (for radiator tank) | 16442-02370 · 16442-0J010 |
| 16461 | Radiator lower tank | 16461-0J010 · 16461-0N010 · 16461-23090 |
| 16462 | O-ring (for radiator lower tank) | 16442-02370 · 16442-0J010 · 16462-23090 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-0J010 |
| 16482 | Radiator reservoir sub-assembly | 16482-33010 |
| 16491 | Oil cooler (for ATM) | 16491-23091 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-74520 |
| 16495A | No. 2 oil pipe nut (for automatic transmission oil cooler) | 16495-70420 |
| 16523 | Secondary radiator bracket buffer pad | 16523-0J010 |
| 16535 | Radiator lower support | 90080-48061 |
| 16571 | Radiator water inlet hose | 16571-0J010 · 16571-0N010 · 16571-23040 · 16571-23060 · 16571-33040 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-31003 · 90467-33006 · 90467-34003 · 90467-34004 |
| 16572 | Radiator outlet hose | 16572-0J010 · 16572-0N010 · 16572-21020 · 16572-23030 · 16572-23050 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-31003 · 90467-33006 · 90467-34003 · 90467-34004 |
| 16711 | fan cover | 16711-0J010 · 16711-0J020 · 16711-0N011 |
