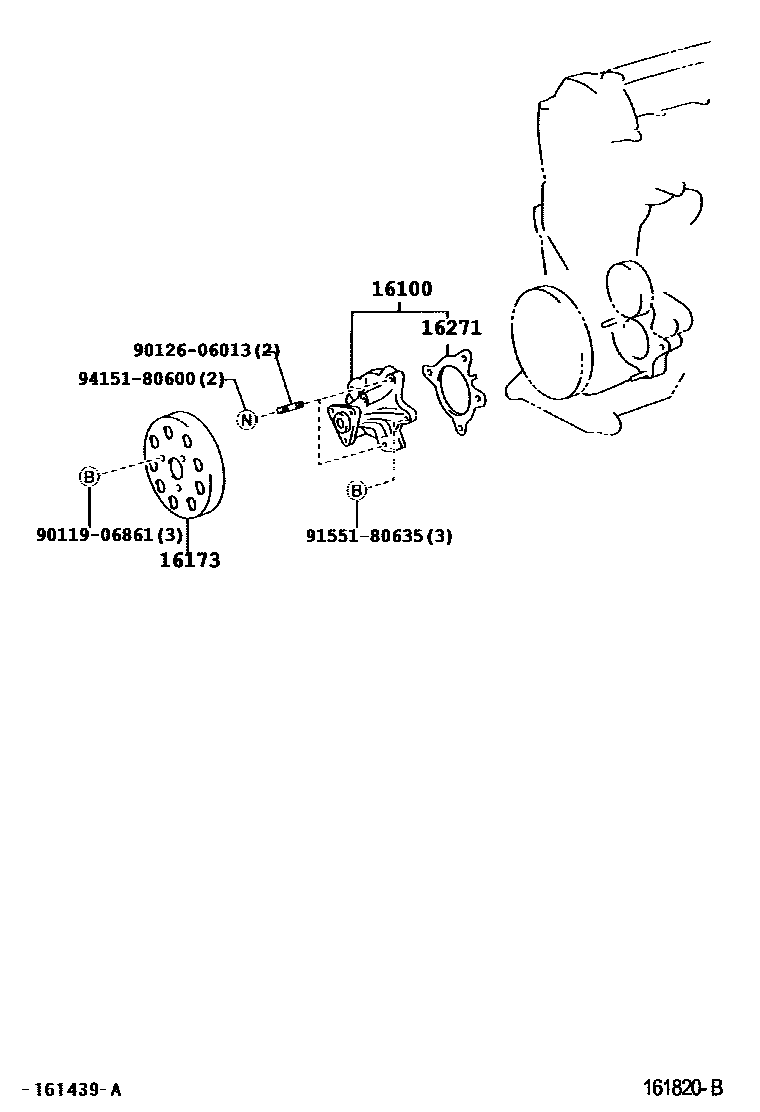

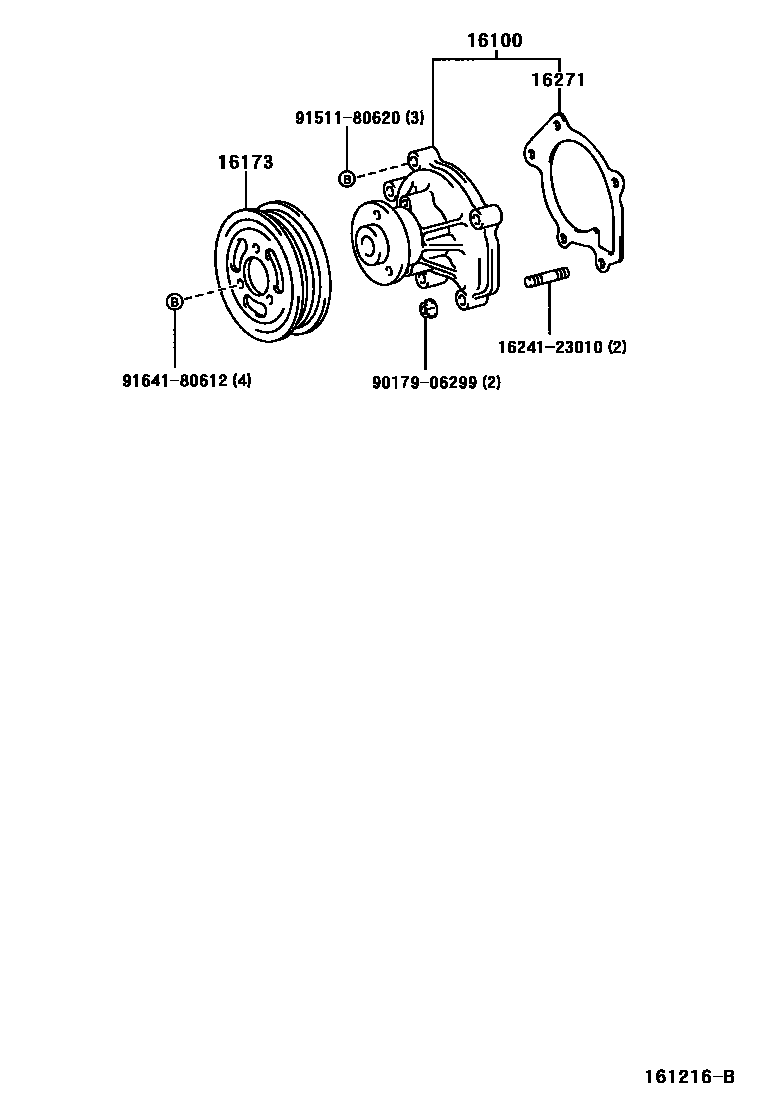

Toyota YARIS Water Pump — Figure 1601
Toyota YARIS EPC diagram 1601, Water Pump, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09140 · 16100-09141 · 16100-29195 · 16100-29196 |
| 16173 | water pump pulley | 16173-0J010 · 16173-23030 · 16173-33010 |
| 16271 | water pump gasket | 16271-0J010 · 16271-23020 · 16271-33020 |
