Toyota YARIS Oil Filter — Figure 1502

Toyota YARIS EPC diagram 1502, Oil Filter, with 3 images and 6 PNC and OE references.

Toyota YARIS Oil Filter EPC diagram — 150313
Oil Filter — 150313 (200101 – 200302)
Toyota YARIS Oil Filter EPC diagram — 150547
Oil Filter — 150547 (200302 – 999999)

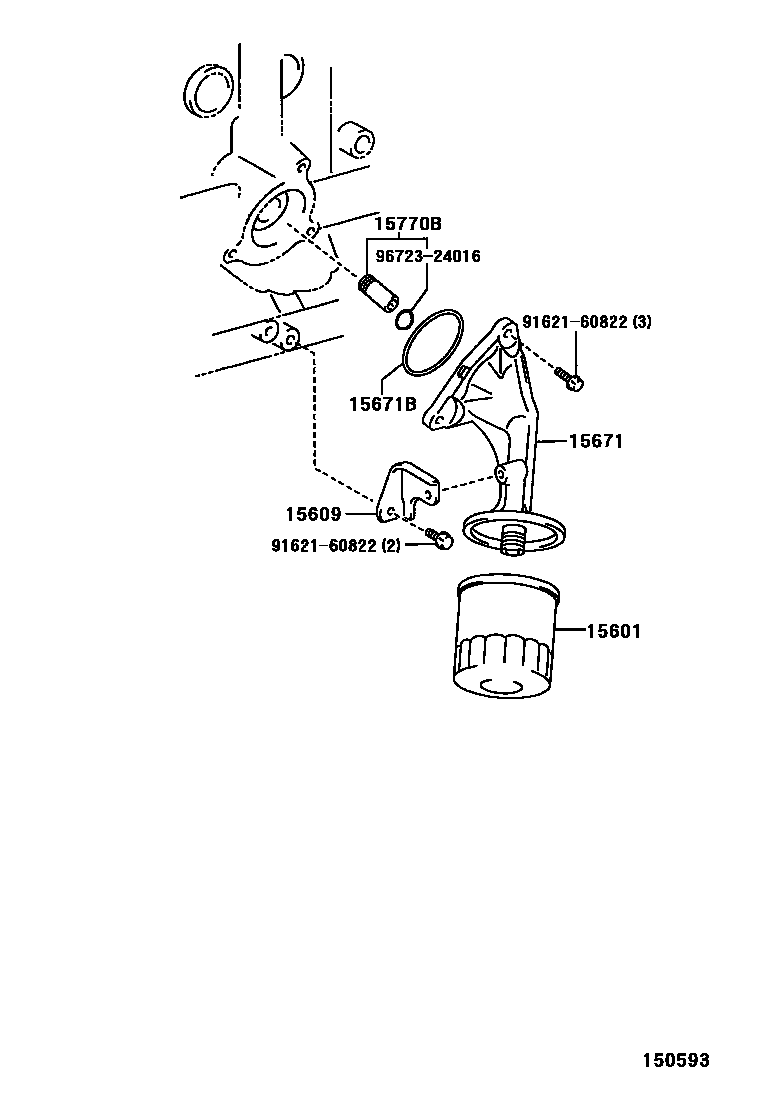

Toyota YARIS Oil Filter EPC diagram — 150593
Oil Filter — 150593 (200205 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19013 · 90904-04004
15601Oil filter sub-assembly90915-10003 · 90915-20003
15609Oil filter bracket sub-assembly15671-0J010
15671Oil filter bracket15677-23010
15671BOil filter holder gasket90301-58004
15770BOil pipe assembly15770-23010
