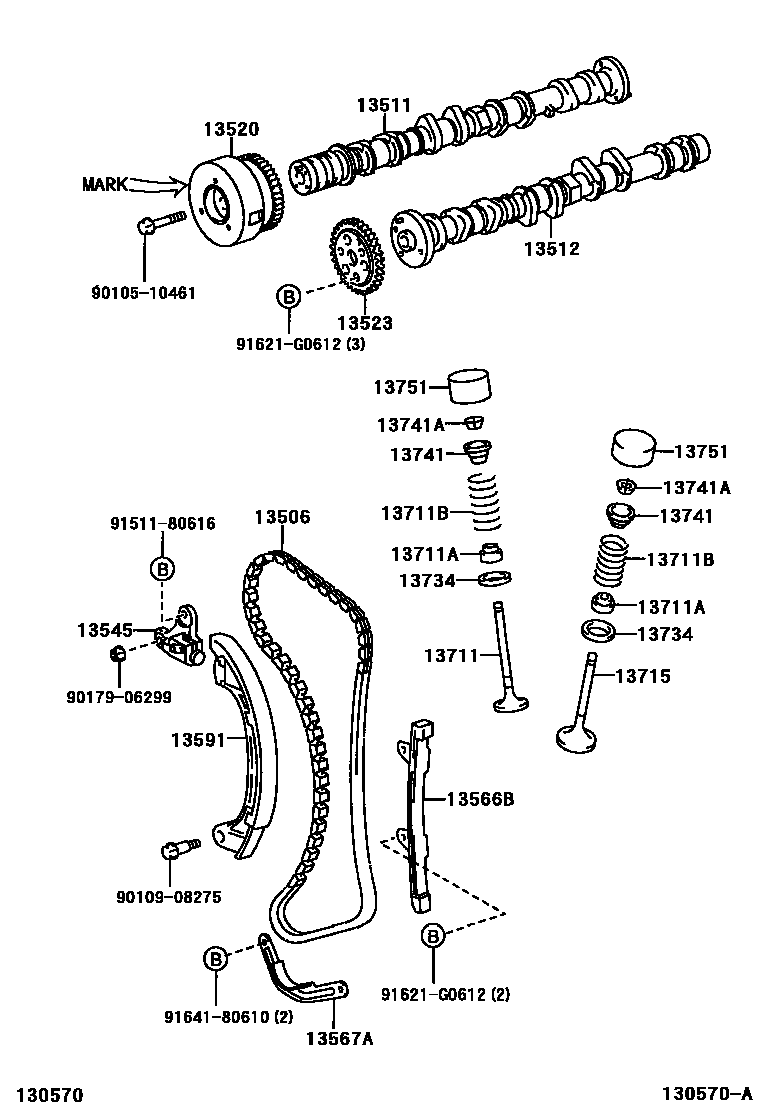

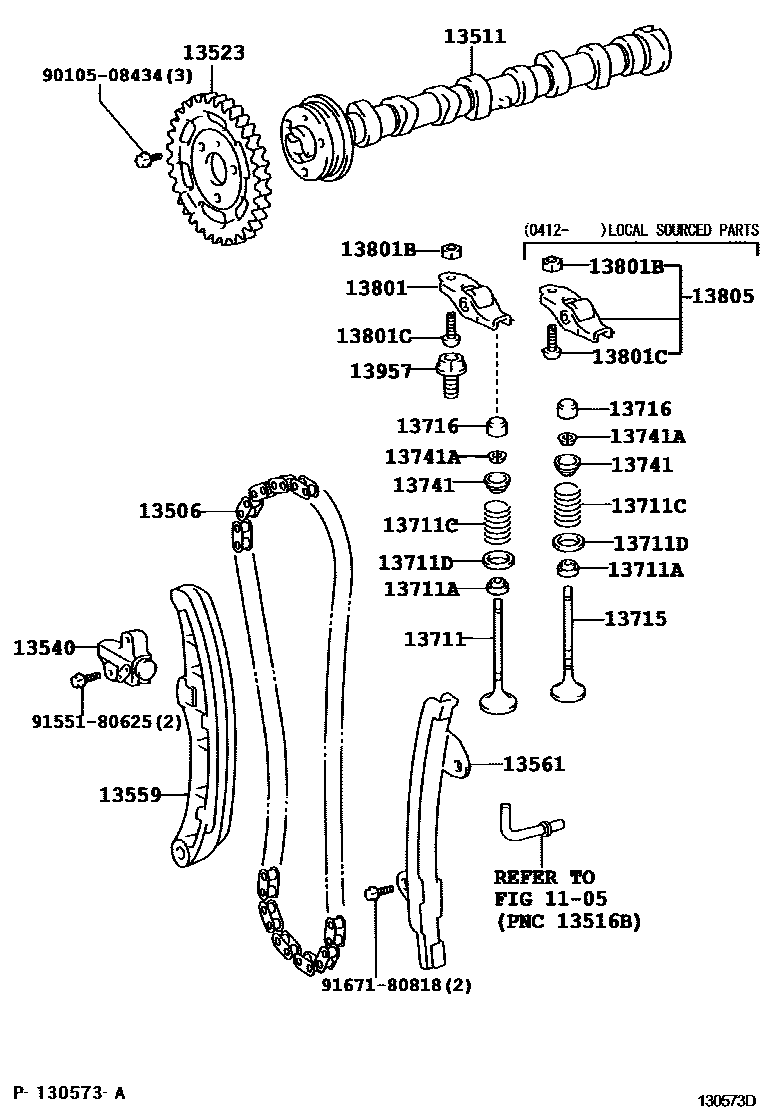

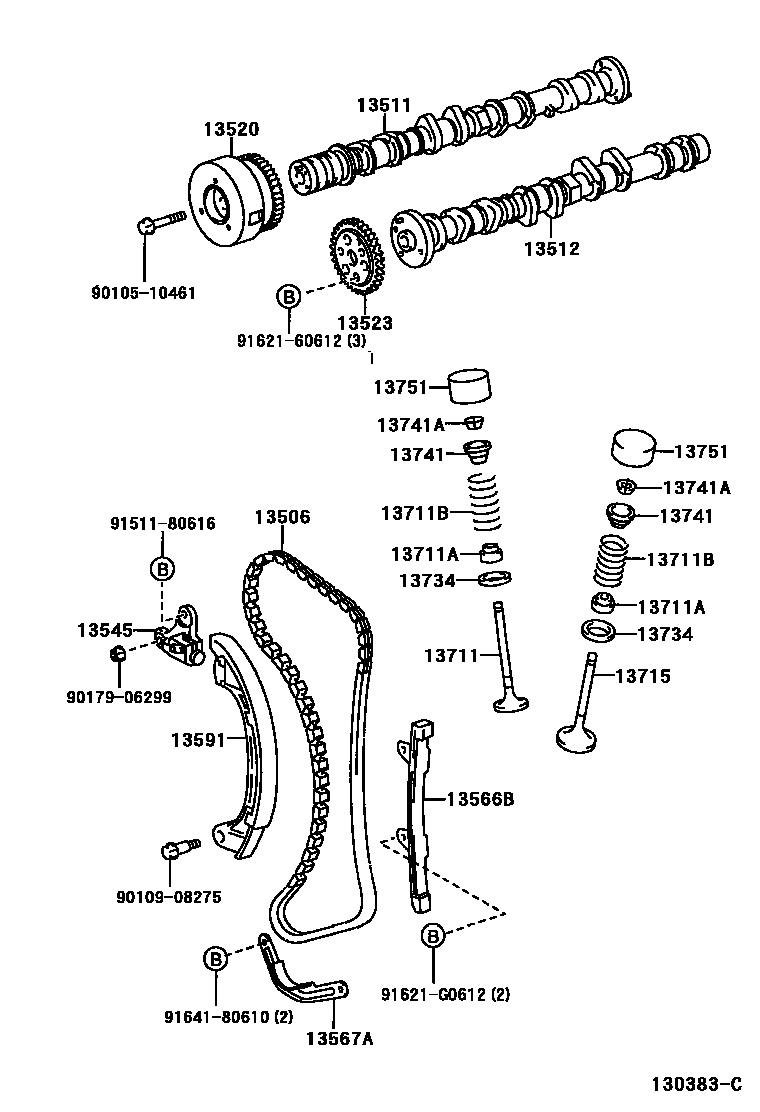

Toyota YARIS Camshaft & Valve — Figure 1302
Toyota YARIS EPC diagram 1302, Camshaft & Valve, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13506 | Chain sub-assembly | 13506-0N010 · 13506-23010 · 13506-23020 |
| 13511 | camshaft | 13501-0J010 · 13501-23030 · 13501-33010 |
| 13512 | Camshaft No. 2 | 13502-0J010 · 13502-23010 |
| 13520 | Camshaft timing sprocket assembly | 13520-0J010 · 13520-0J011 · 13520-23020 · 13520-23021 |
| 13523 | Camshaft timing gear or sprocket | 13523-0J010 · 13523-23050 · 13523-33020 · 13523-33021 |
| 13540 | No. 1 chain tensioner assembly | 13540-0N010 |
| 13545 | chain tensioner plunger | 13545-0J010 · 13545-23010 |
| 13559 | chain tensioner guide plate | 13559-0N010 |
| 13561 | No. 1 chain shock absorber | 13561-0N010 |
| 13566B | Timing chain guide plate | 13566-0J010 · 13566-23010 · 13566-23011 · 13566-23020 |
| 13567A | No. 2 timing chain guide plate | 13567-23010 |
| 13591 | Timing chain tensioner arm | 13591-0J010 · 13591-23010 · 13591-23020 |
| 13711 | intake valve | 13711-0J010 · 13711-23040 · 13711-33030 |
| 13711A | Oil seal or O-ring (for valve stem) | 90080-31064 · 90080-31065 · 90913-02120 · 90913-02121 |
| 13711B | Compression spring (for inner side) | 90080-50273 |
| 13711C | Compression spring (for outside) | 90501-36006 · 90501-W0008 |
| 13711D | Flat washer (for valve spring seat) | 90201-19008 |
| 13715 | exhaust valve | 13715-0J010 · 13715-23030 · 13715-33040 |
| 13716 | valve stem cover | 13716-33010 |
| 13734 | Valve spring seat | 13734-23010 |
| 13741 | Valve spring seat ring | 13741-10020 · 13741-23030 |
| 13741A | Valve spring seat lock plate | 90080-38141 · 90913-03021 · 90913-03032 |
| 13751 | valve lifter | 13751-0J020 · 13751-0J030 · 13751-0J040 · 13751-0J050 · 13751-0J060 · 13751-0J070 · 13751-0J080 · 13751-0J090 · 13751-0J100 · 13751-0J110 · 13751-0J120 · 13751-0J130 · 13751-0J140 · 13751-0J150 · 13751-0J160 · 13751-0J170 · 13751-0J180 · 13751-0J190 · 13751-0J200 · 13751-0J210 · 13751-0J220 · 13751-0J230 · 13751-0J240 · 13751-0J250 · 13751-0J260 · 13751-0J270 · 13751-0J280 · 13751-0J290 · 13751-0J300 · 13751-23030 · 13751-23040 · 13751-23050 · 13751-23060 · 13751-23070 · 13751-23080 · 13751-23090 · 13751-23100 · 13751-23110 · 13751-23120 · 13751-23130 · 13751-23140 · 13751-23150 · 13751-23160 · 13751-23170 · 13751-23180 · 13751-23190 · 13751-23200 · 13751-23210 · 13751-23220 · 13751-23230 · 13751-23240 · 13751-23250 · 13751-23260 · 13751-23270 · 13751-23280 · 13751-23290 · 13751-23300 · 13751-23310 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-33020 |
| 13801B | Hex nut (for valve adjustment) | 90170-07004 |
| 13801C | valve adjustment screw | 13788-33010 |
| 13805 | Valve rocker arm assembly | 13805-0N010 |
| 13957 | valve rocker arm pivot | 13957-33010 |
