Toyota YARIS Partial Engine Assembly — Figure 1101

Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

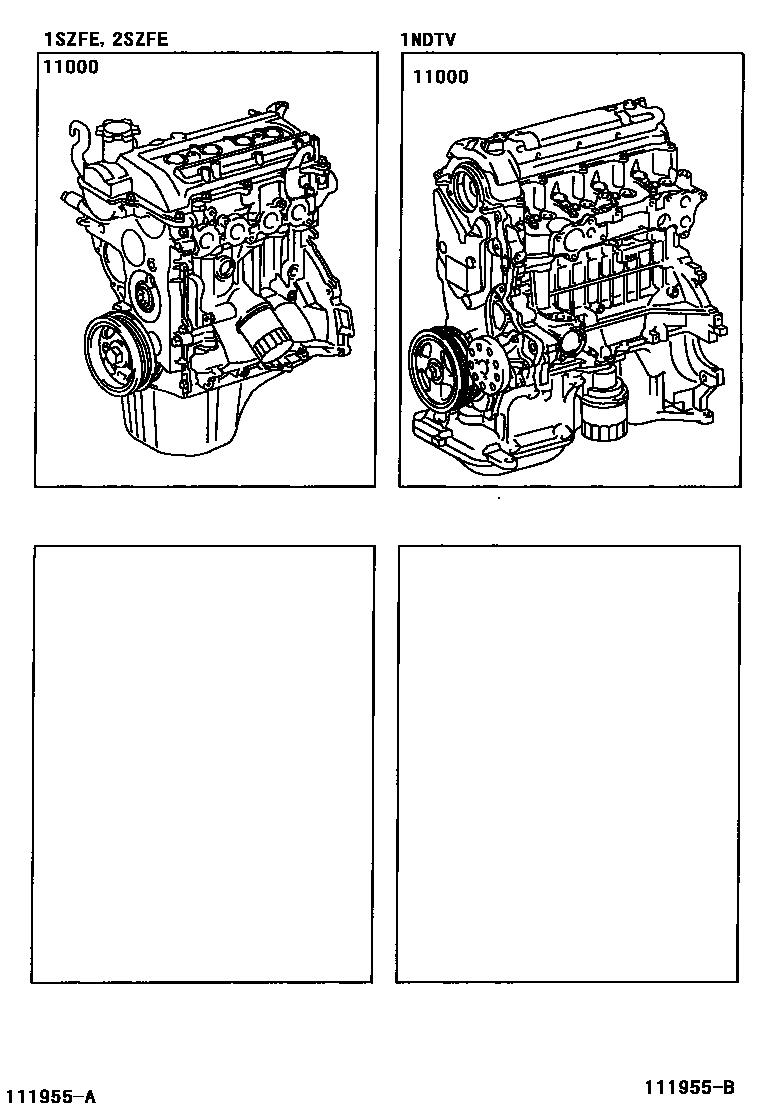

Toyota YARIS Partial Engine Assembly EPC diagram — 111955B
Partial Engine Assembly — 111955B (200101 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0J010 · 19000-0J020 · 19000-0J030 · 19000-0J040 · 19000-0J050 · 19000-0N010
