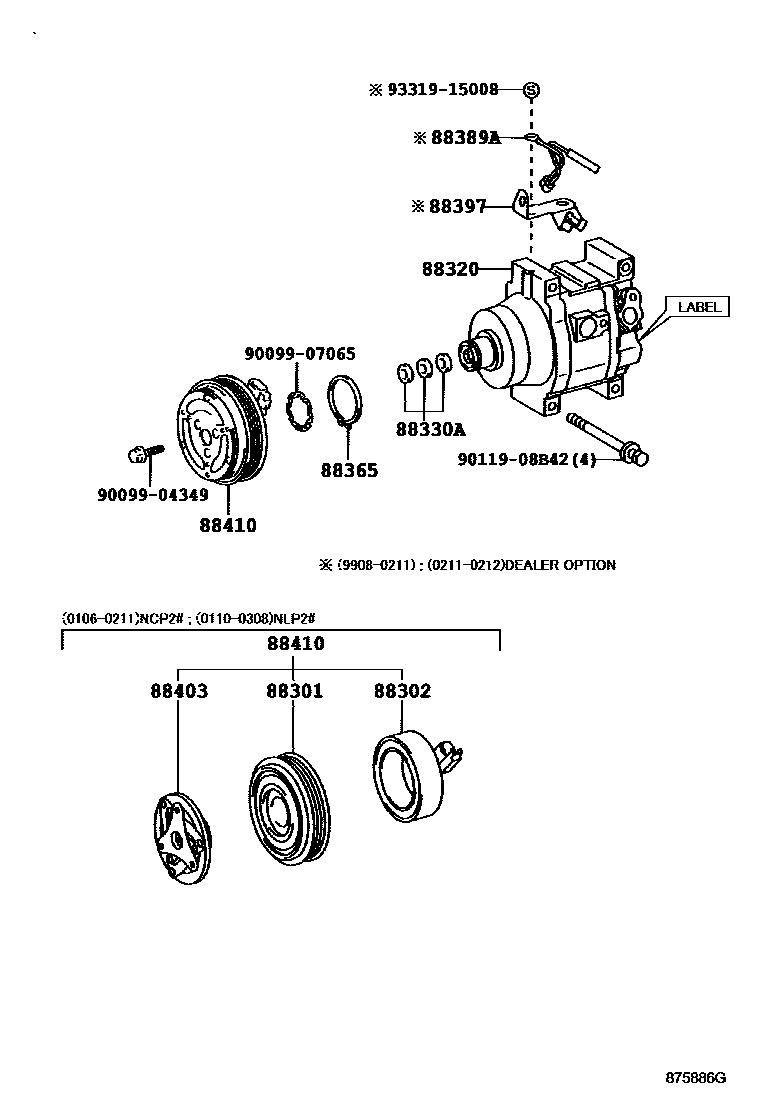

Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719
Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-1A160 · 88412-52040 · 88412-52100 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-16070 · 88411-1A050 |
| 88320 | Cooler Compressor Assembly | 88320-52010 · 88320-52040 · 88320-52080 · 88320-52120 · 88320-52370 · 88320-52400 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88365 | snap ring | 88365-87201 |
| 88389A | Compressor wiring harness | 88389-10020 |
| 88397 | Sensor clip | 88397-52020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-16020 · 88403-1A020 |
| 88410 | Magnetic Clutch Assembly | 88410-1A210 · 88410-2B260 · 88410-2B280 · 88410-52050 · 88410-52110 · 88410-52130 · 88410-52131 · 88410-52140 · 88410-52230 · 88410-52290 |
