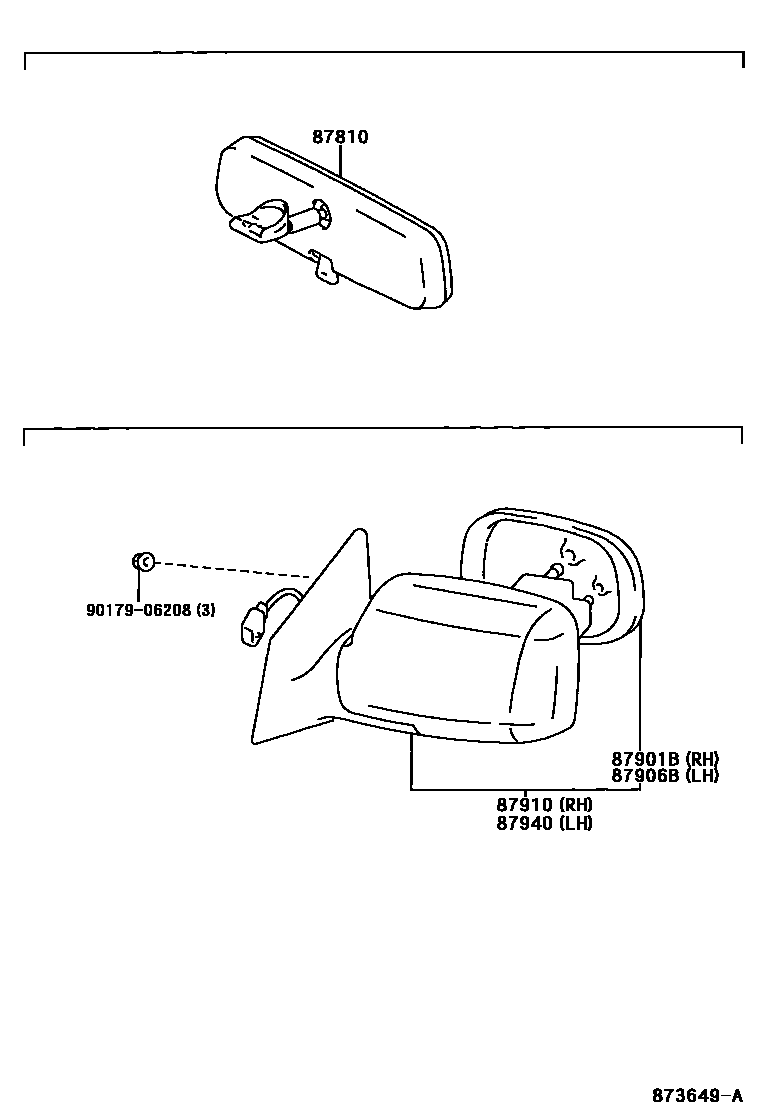

Toyota YARIS 后视镜 — Figure 8701
Toyota YARIS EPC diagram 8701, 后视镜, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0W030 · 87810-52040 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-44010 · 87931-44040 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-44010 · 87961-44040 |
| 87910 | Right exterior rearview mirror assembly | 87910-52010 · 87910-52140 · 87910-52160 · 87910-52170 · 87910-52180 |
| 87940 | Left exterior rearview mirror assembly | 87940-52010 · 87940-52120 · 87940-52140 · 87940-52150 · 87940-52160 |
