Toyota YARIS antenna — Figure 8604

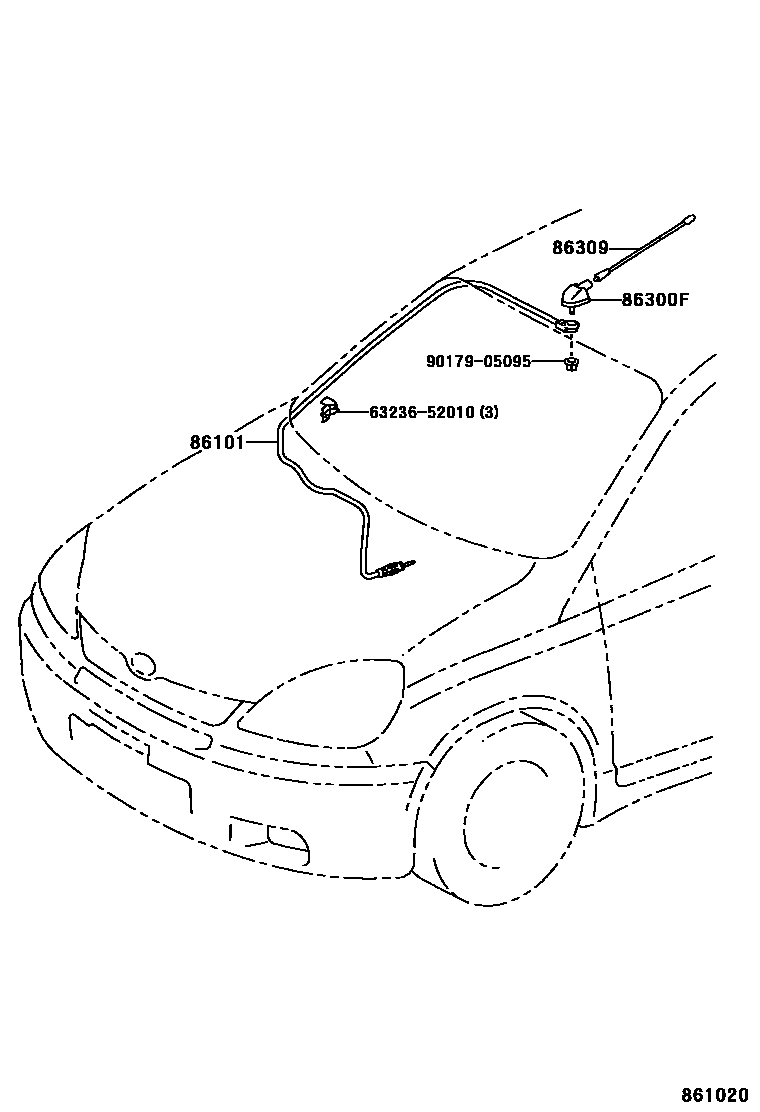

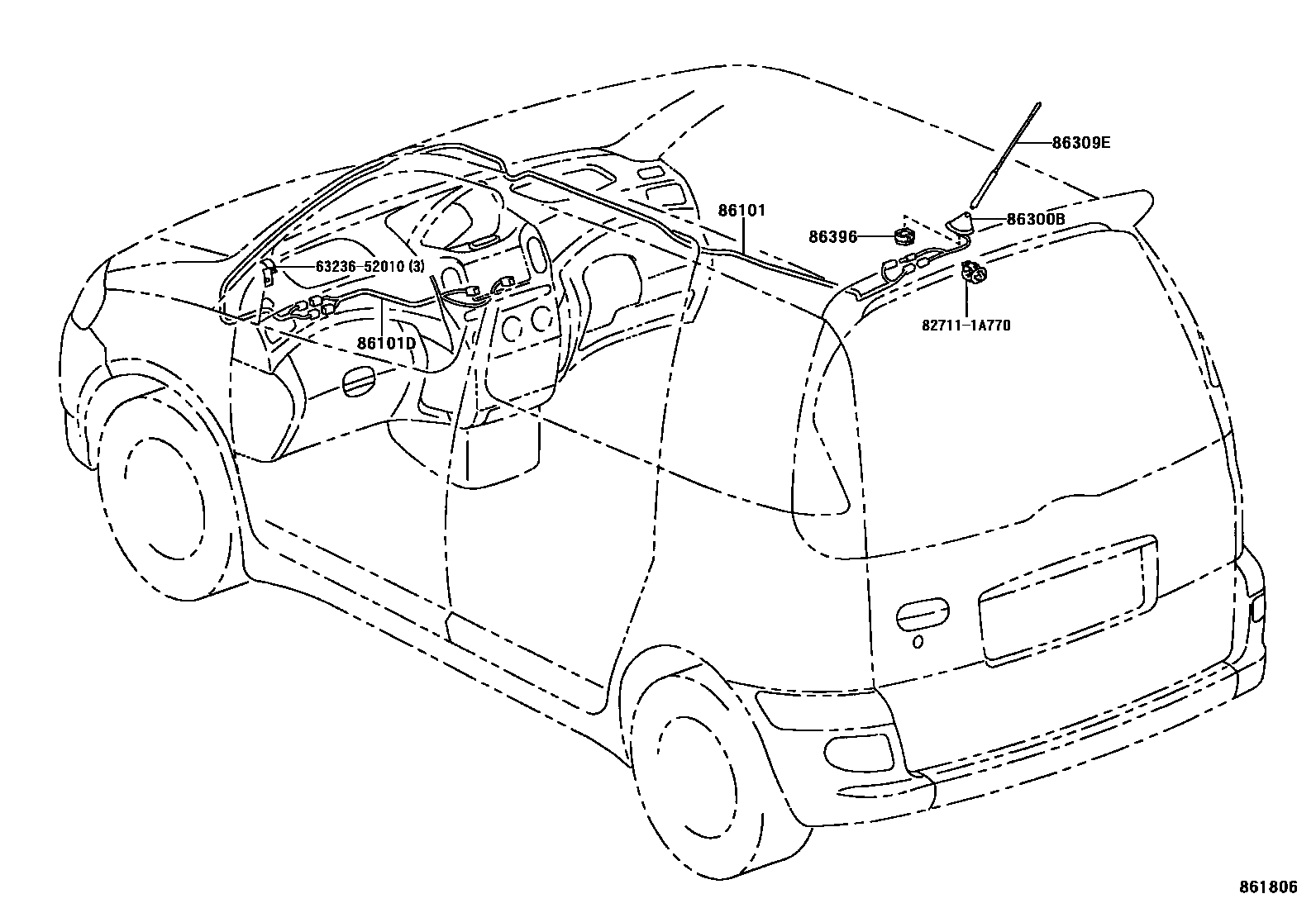

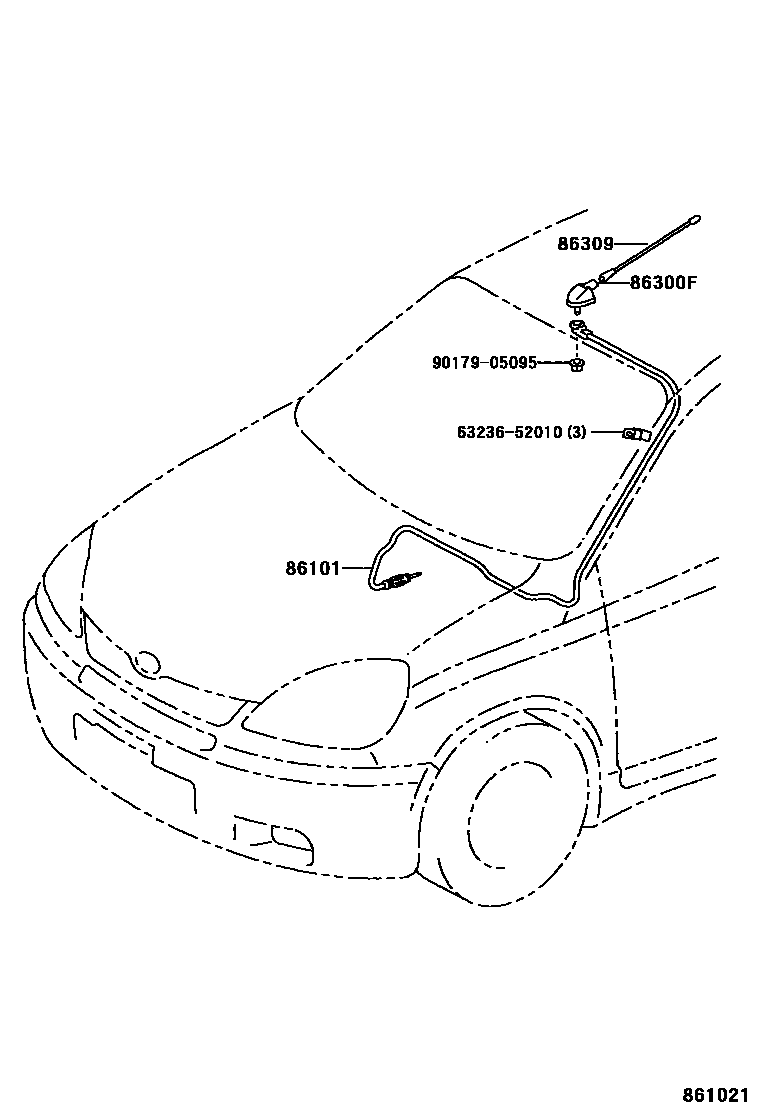

Toyota YARIS EPC diagram 8604, antenna, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0W030 · 86101-0W040 · 86101-52160 · 86101-52170 · 86101-52180 · 86101-52190 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-52200 · 86101-52210 |
| 86300B | Amplifier antenna assembly | 86300-52110 |
| 86300F | Antenna fixing assembly (wire/antenna mast separation type) | 86300-0W020 |
| 86309 | Cylindrical antenna sub-assembly | 86309-0W020 · 86309-0W040 |
| 86309E | Roof antenna sub-assembly | 86309-52040 |
| 86396 | Antenna nut | 86396-20040 |
