Toyota YARIS 导航和前监视器显示屏 — Figure 8603

Toyota YARIS EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 2 PNC and OE references.

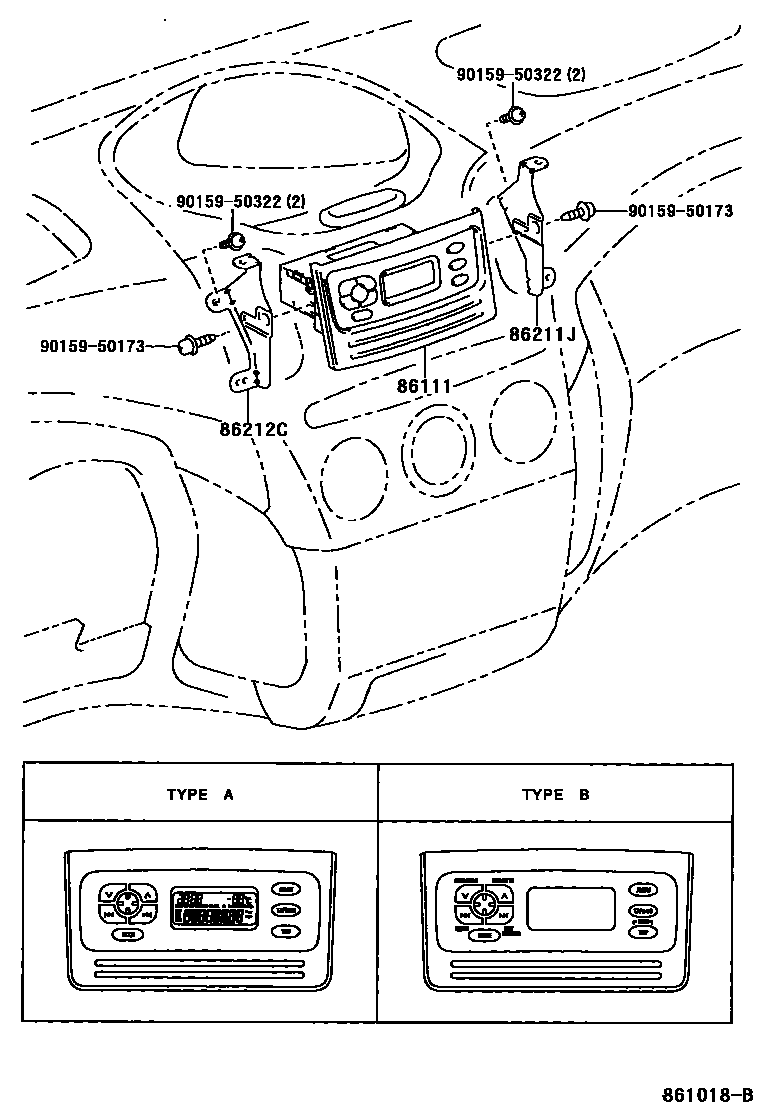

Toyota YARIS 导航和前监视器显示屏 EPC diagram — 861018B
导航和前监视器显示屏 — 861018B (199908 – 200211)

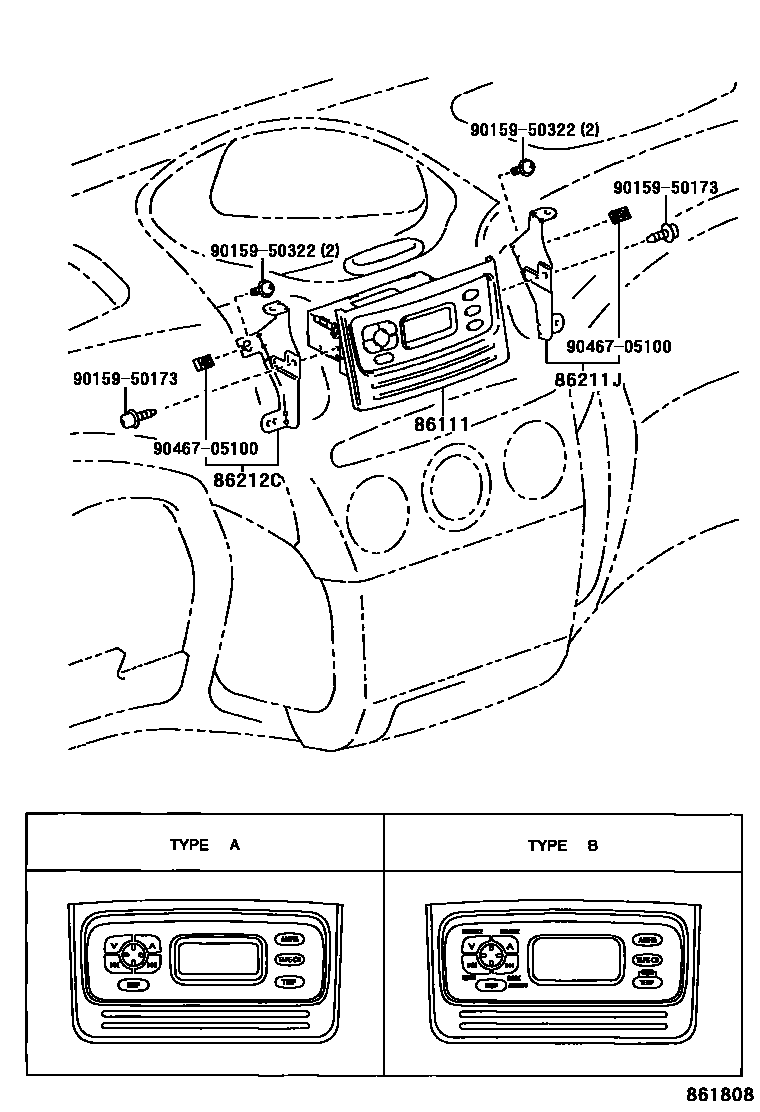

Toyota YARIS 导航和前监视器显示屏 EPC diagram — 861808
导航和前监视器显示屏 — 861808 (200211 – 200509)

PNC and OE references

PNCPart nameOE numbers
86211JNo. 1 radio bracket86211-52050 · 86211-52051
86212CNo. 2 radio bracket86212-52050 · 86212-52051
