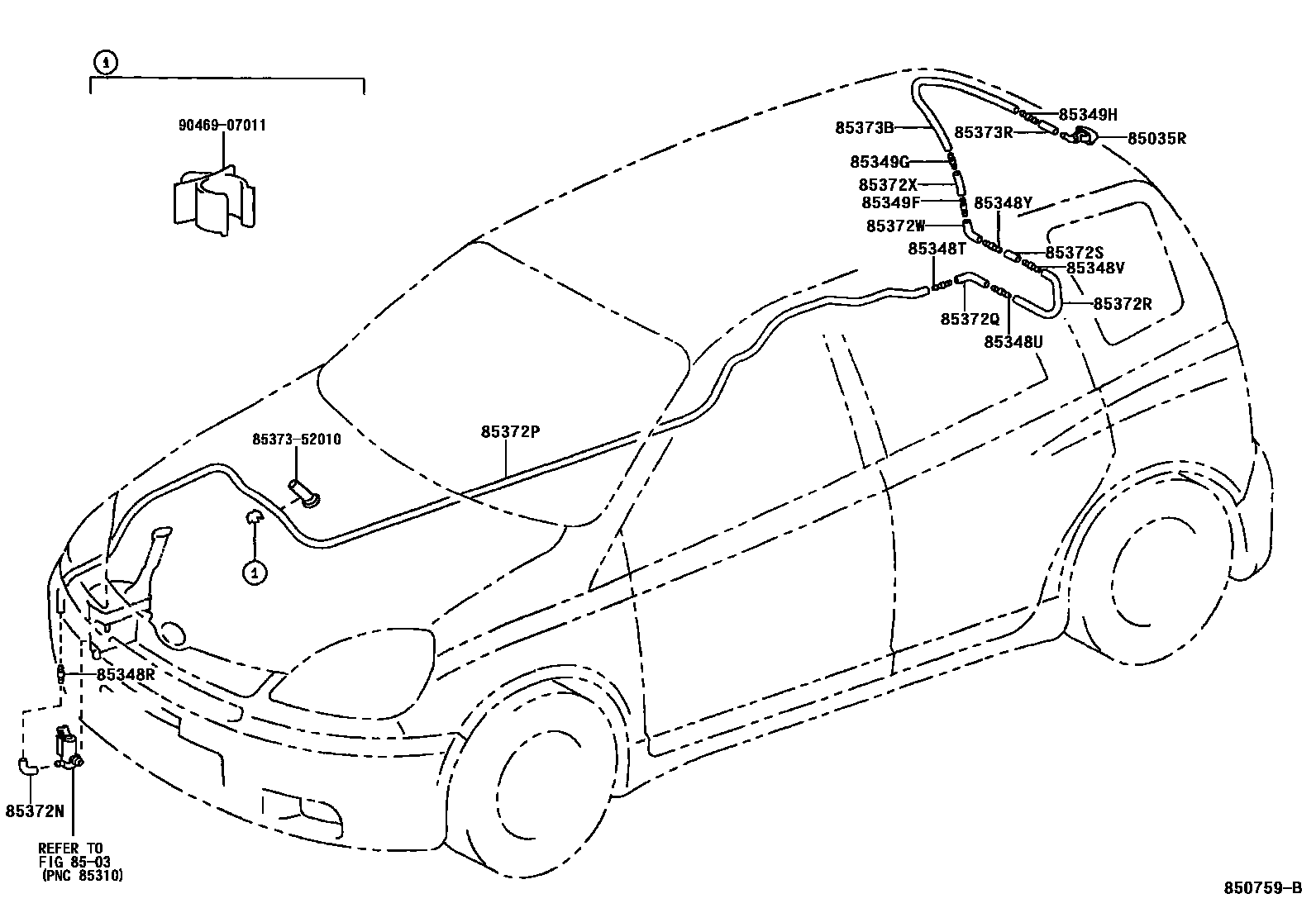

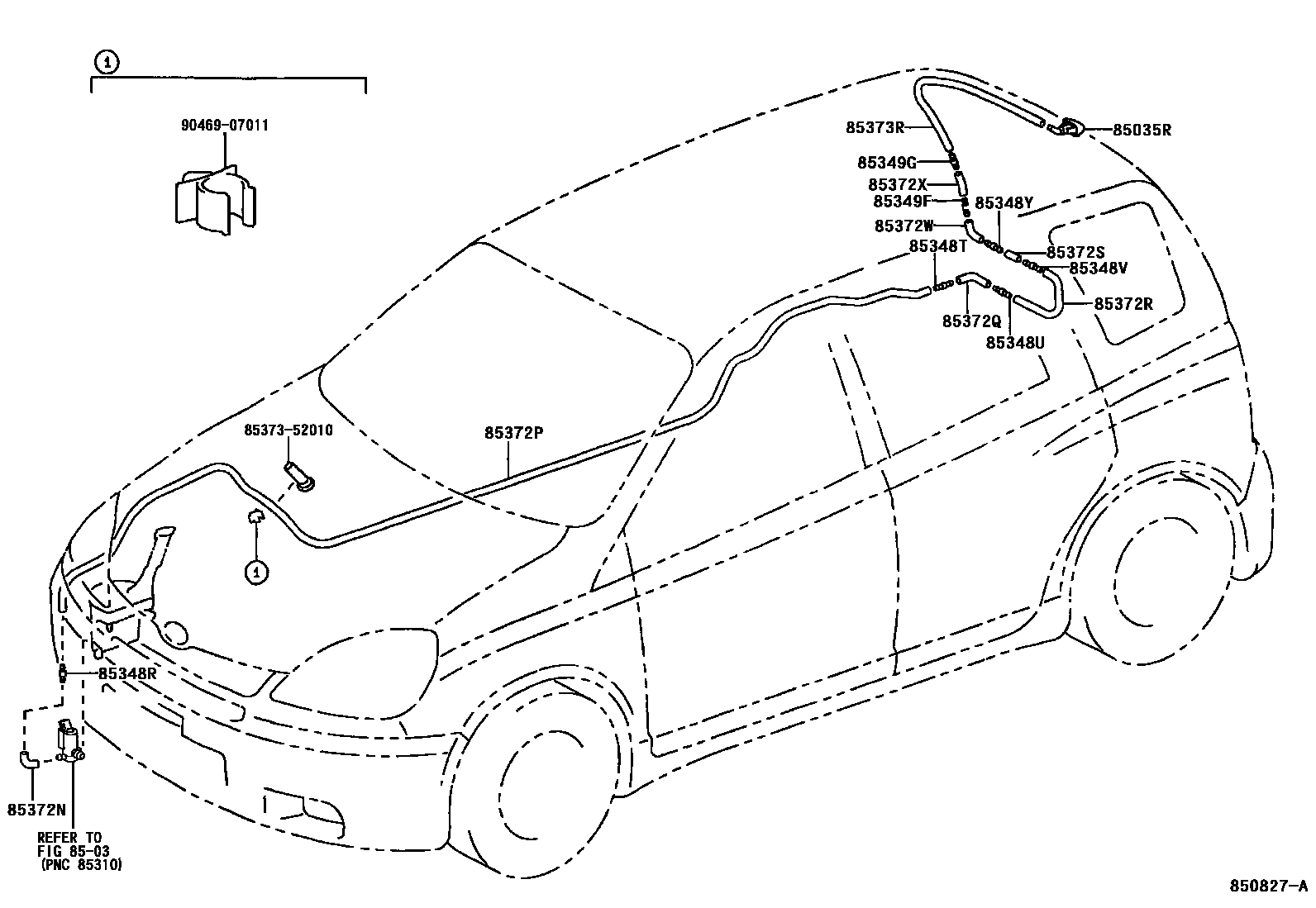

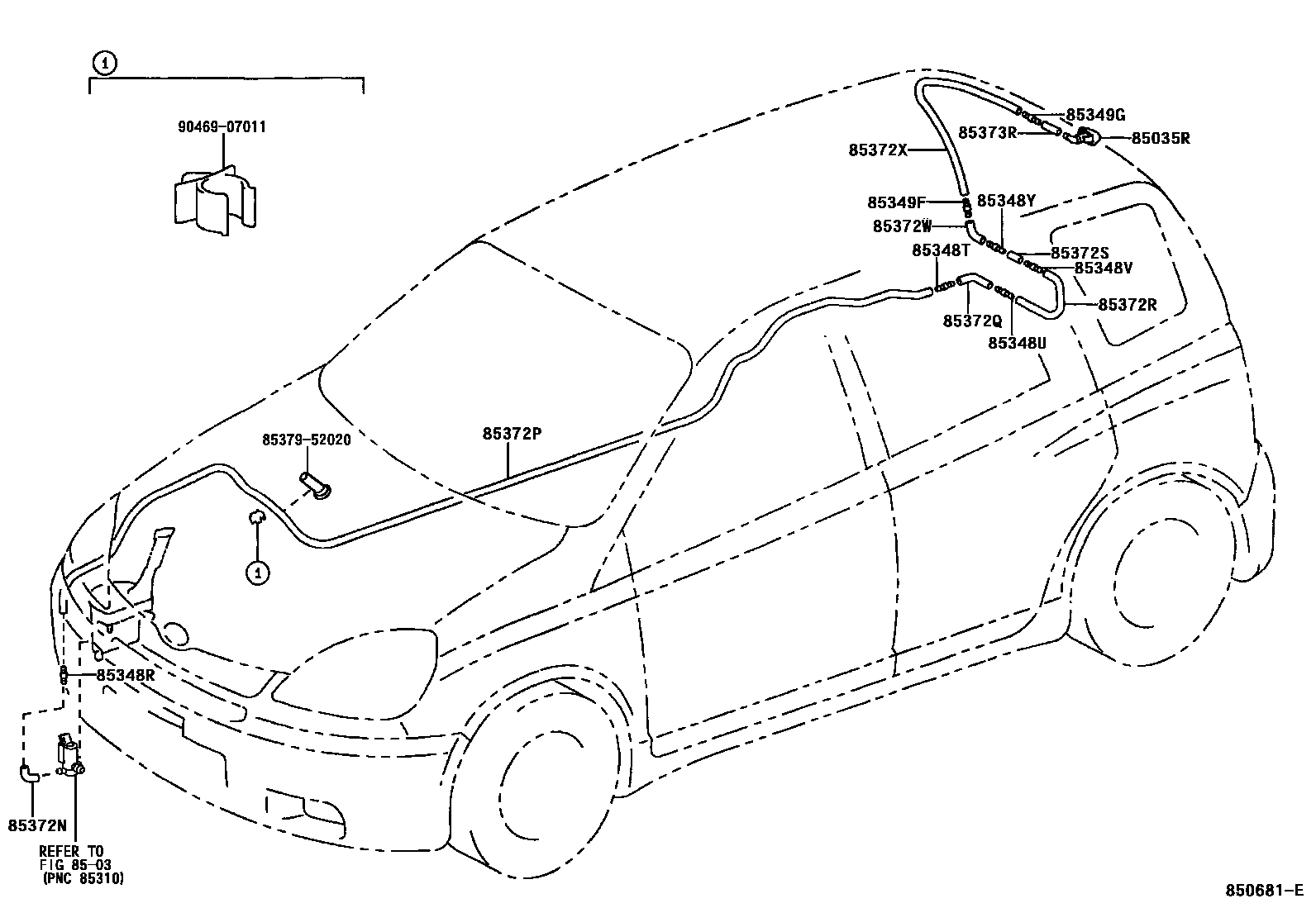

Toyota YARIS 后清洗器 — Figure 8504
Toyota YARIS EPC diagram 8504, 后清洗器, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-52020 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 |
| 85348U | No. 3 rear washer hose connector | 85349-89122 · 85375-10260 |
| 85348V | No. 4 rear washer hose connector | 85375-10260 |
| 85348Y | No. 5 rear washer hose connector | 85375-10260 |
| 85349F | No. 1 rear washer hose connector | 85349-89122 · 85375-10260 |
| 85349G | No. 2 rear washer hose connector | 85375-10260 |
| 85349H | No. 3 rear washer hose connector | 85375-10260 |
