Toyota YARIS 后刮水器 — Figure 8502

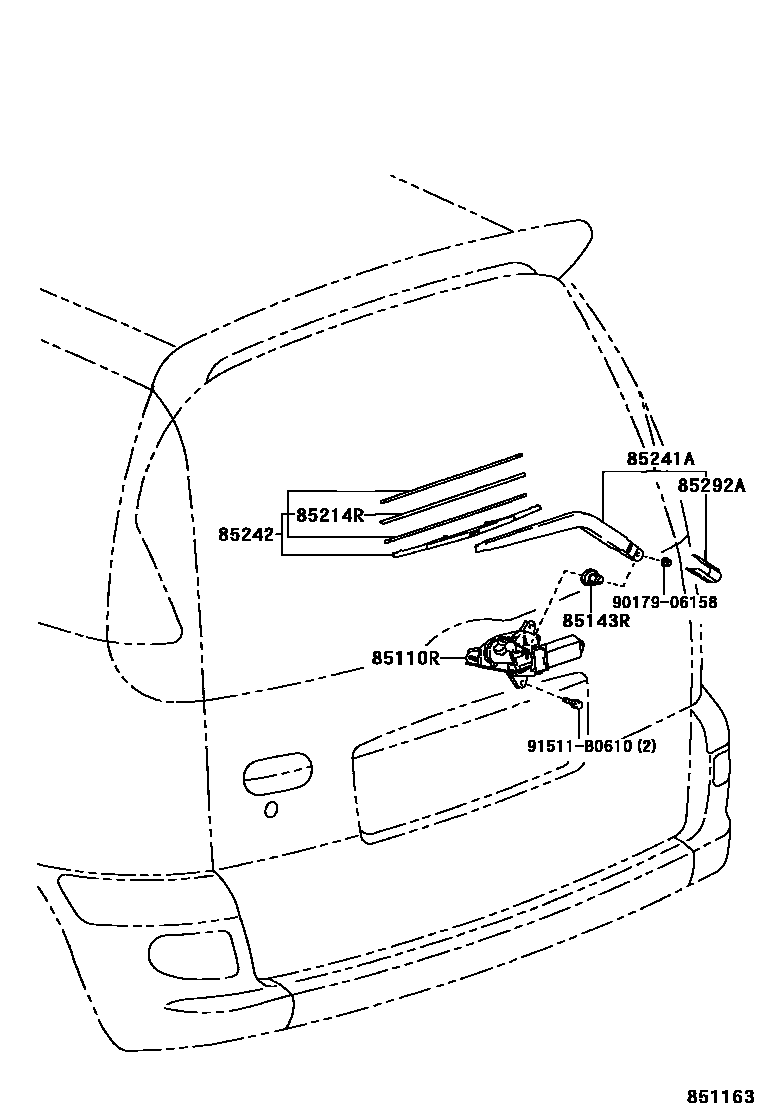

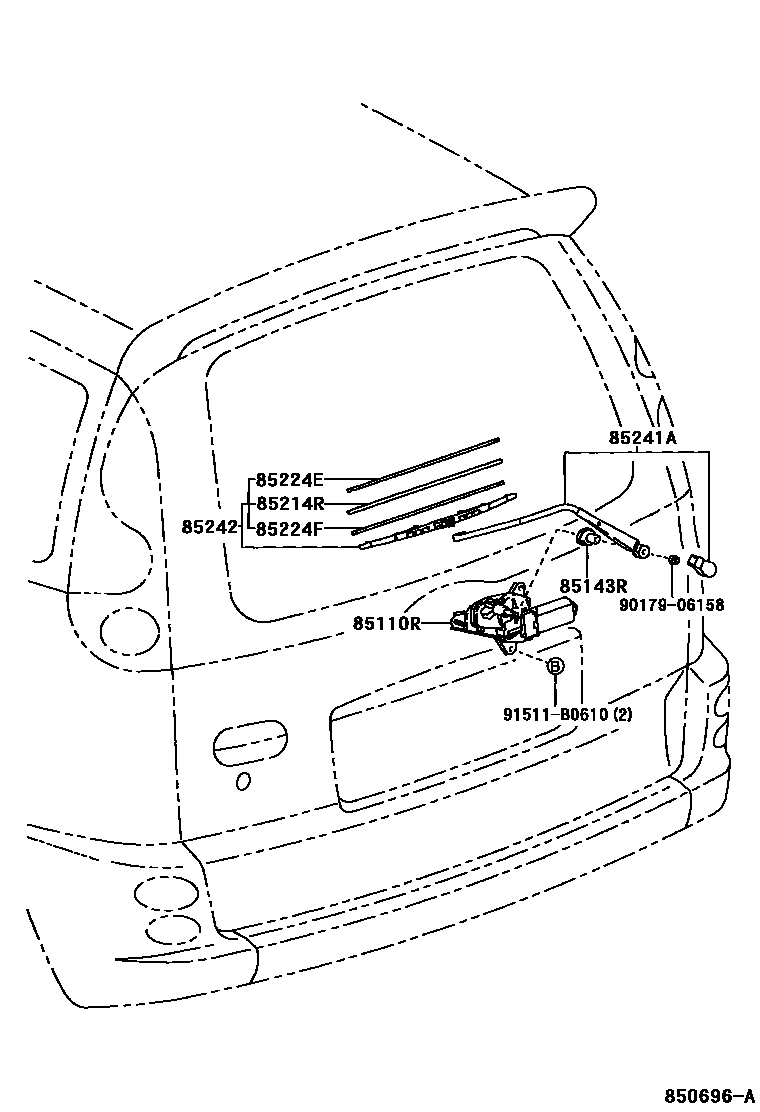

Toyota YARIS EPC diagram 8502, 后刮水器, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-52020 · 85130-52080 |
| 85143R | Rear wiper motor seal | 85143-35060 · 85143-52030 |
| 85214R | Rear wiper rubber strip | 85214-10100 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-10200 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-10200 |
| 85241A | rear wiper arm | 85241-52030 · 85241-52070 |
| 85242 | Rear wiper blade | 85242-10020 · 85242-28060 |
| 85292A | Rear wiper arm cap | 85292-28040 |
