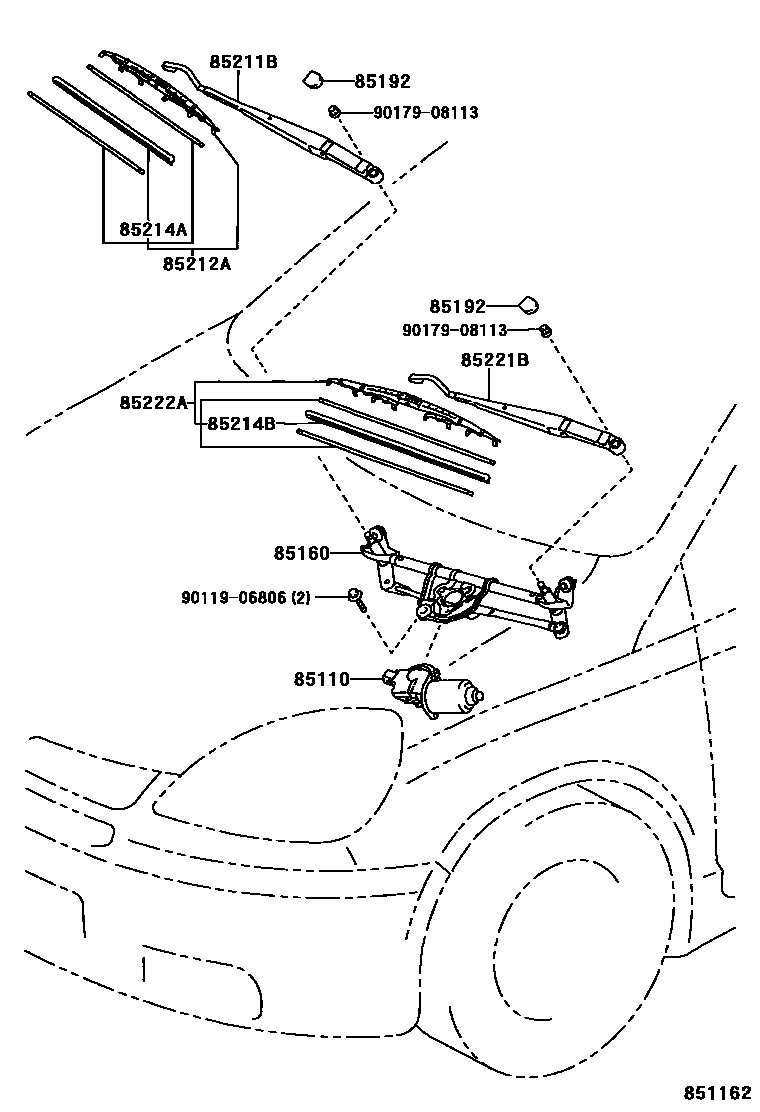

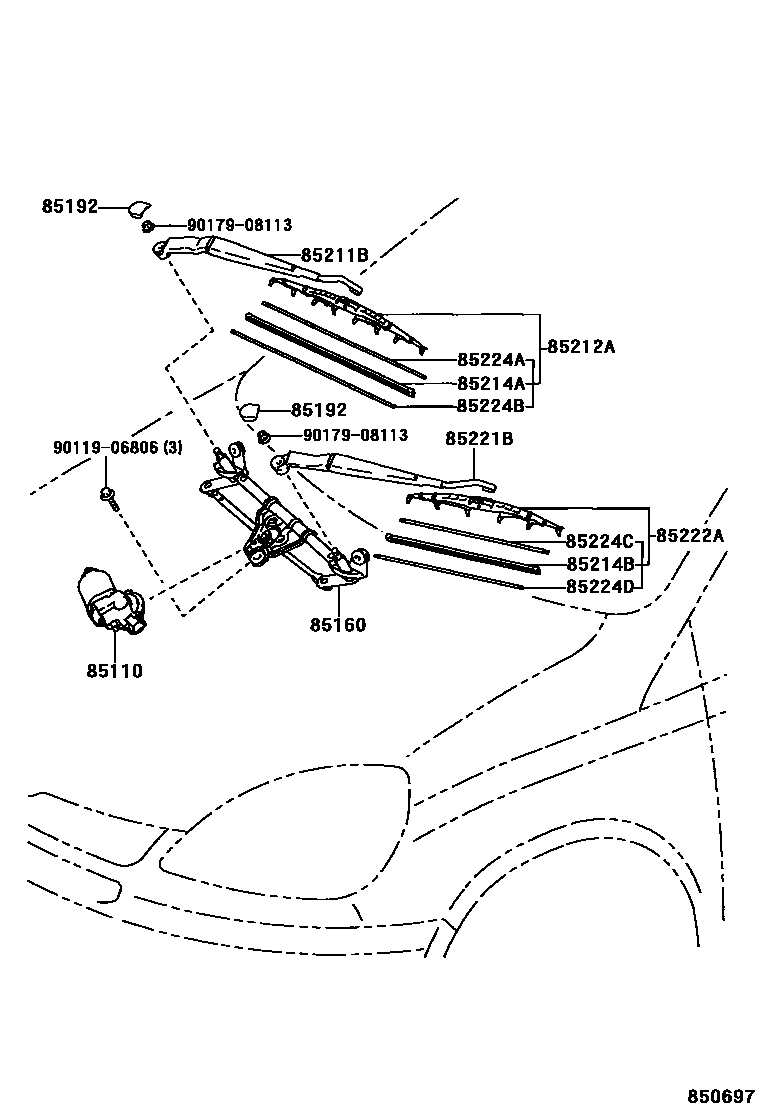

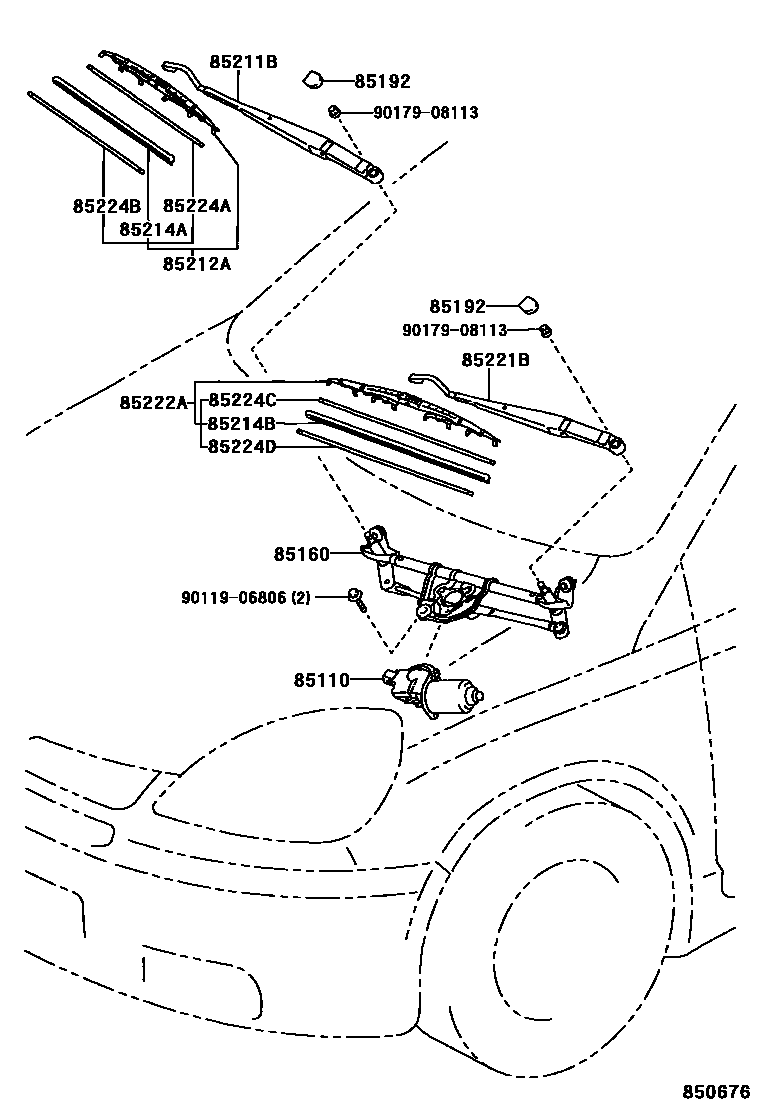

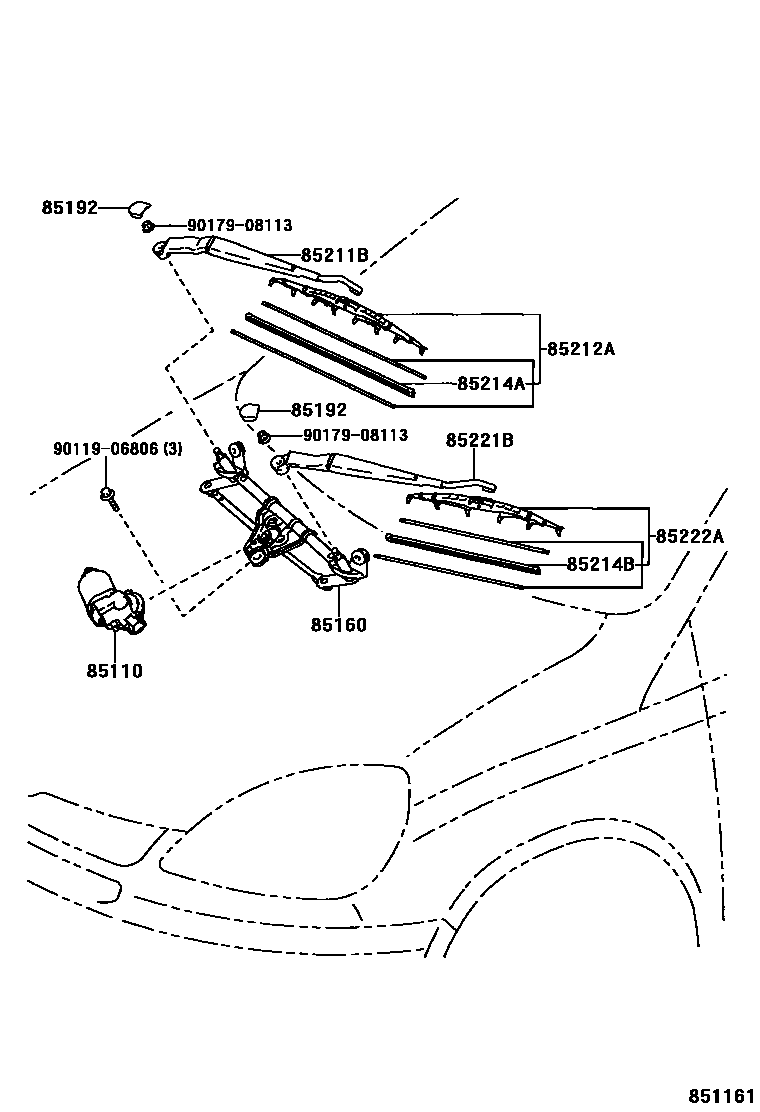

Toyota YARIS 挡风玻璃刮水器 — Figure 8501
Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-52080 · 85110-52090 |
| 85160 | Windshield wiper connecting rod assembly | 85150-52050 · 85150-52060 |
| 85192 | windshield wiper arm cover | 85192-12800 |
| 85211B | Right front wiper arm | 85211-52070 · 85211-52080 |
| 85212A | Right front wiper blade | 85212-52050 · 85212-52070 · 85212-52080 |
| 85214A | Right wiper rubber strip | 85214-33100 · 85214-44020 · 85214-48010 · 85214-50060 · 85214-50130 |
| 85214B | Left wiper rubber strip | 85214-33100 · 85214-44020 · 85214-48010 · 85214-50060 · 85214-50130 |
| 85221B | Left front wiper arm | 85221-52070 · 85221-52080 |
| 85222A | Left front wiper blade | 85222-52040 · 85222-52050 · 85222-52150 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-33040 · 85224-44030 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-33040 · 85224-44030 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-33040 · 85224-44020 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-33040 · 85224-44020 |
