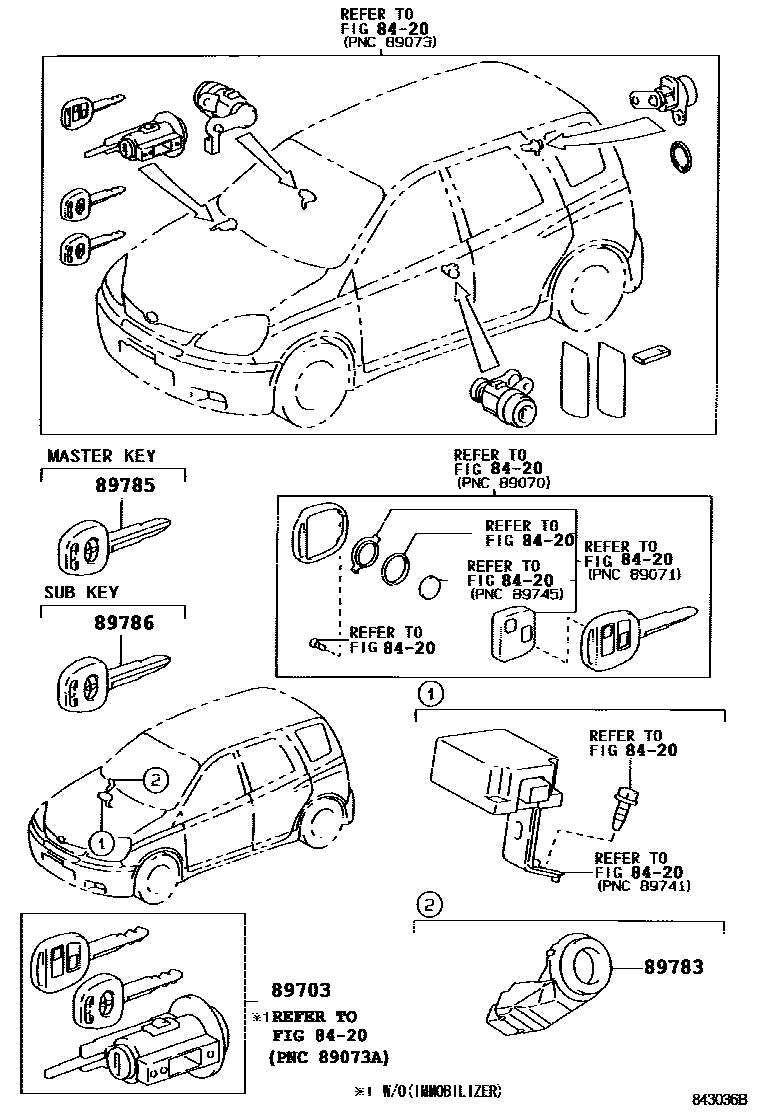

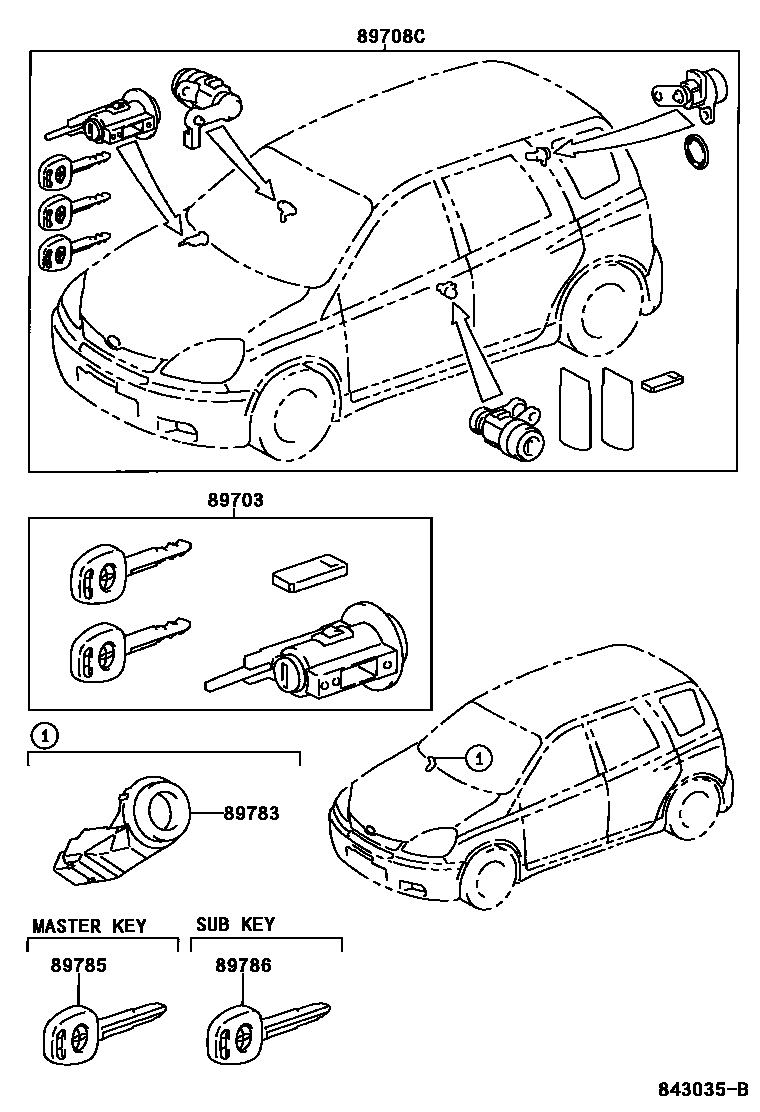

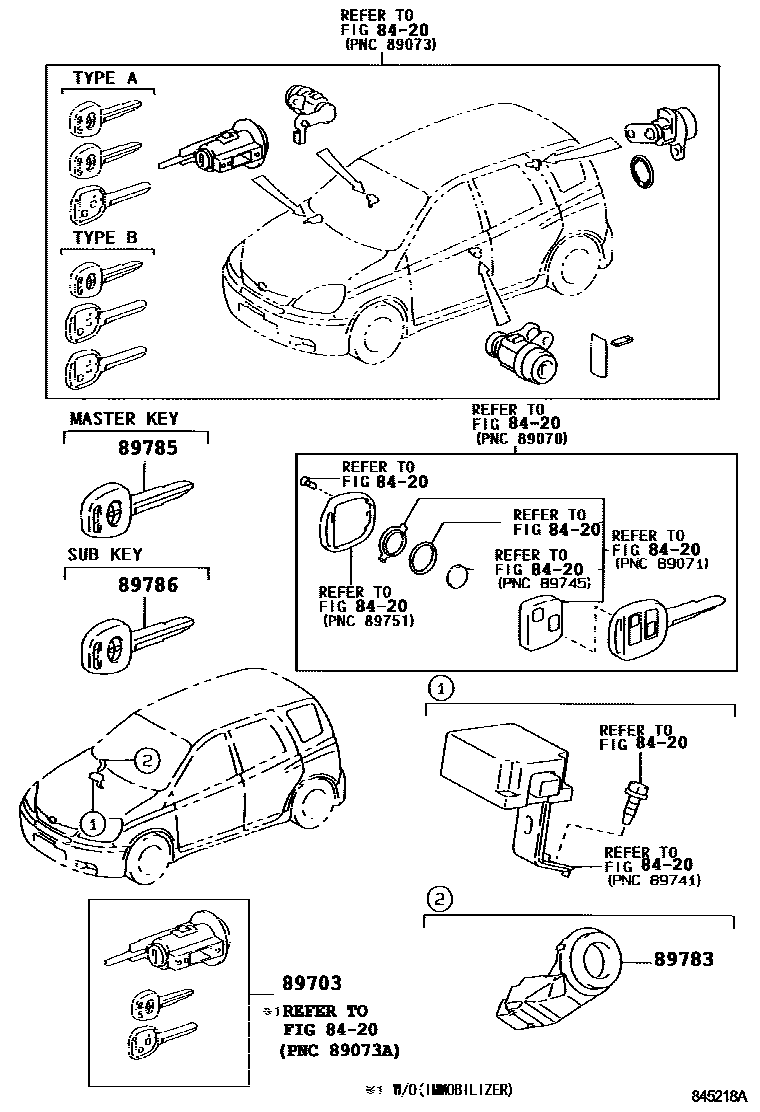

Toyota YARIS 防盗装置 — Figure 8424
Toyota YARIS EPC diagram 8424, 防盗装置, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89703 | Ignition lock cylinder and key assembly with transceiver | 69057-52190 · 69057-52201 · 89073-52010 · 89073-52011 · 89073-52020 · 89073-52030 · 89073-52040 · 89073-52110 · 89073-52120 · 89703-52010 |
| 89708C | Key lock cylinder assembly with transceiver transmitter | 69005-52650 · 89708-52020 |
| 89783 | transceiver key amplifier | 89783-52020 |
| 89785 | transceiver key master transmitter | 89785-17020 · 89785-26020 |
| 89786 | transceiver key secondary transmitter | 89786-17020 · 89786-60050 |
