Toyota YARIS 空气囊 — Figure 8421

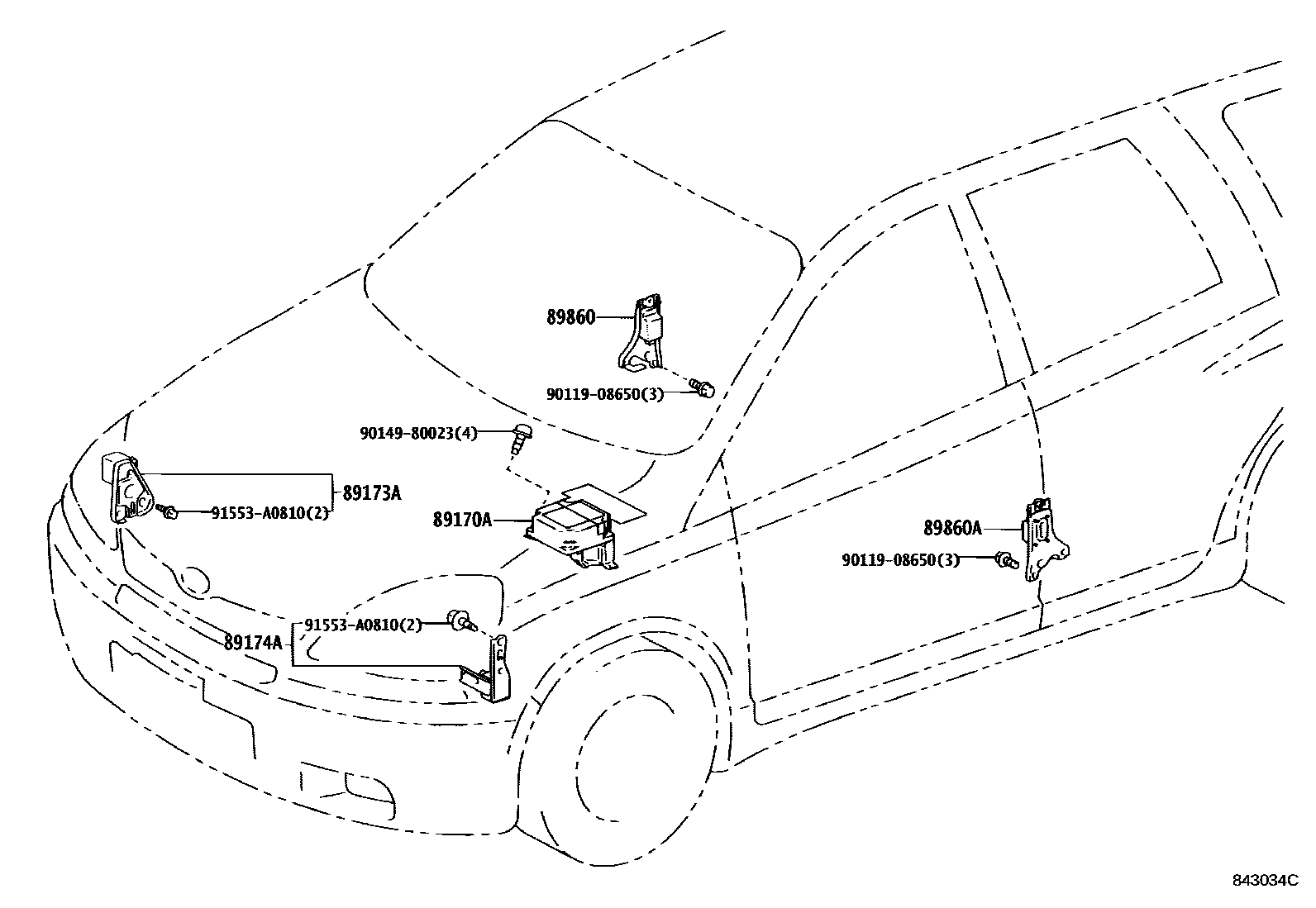

Toyota YARIS EPC diagram 8421, 空气囊, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-52060 · 89170-52070 · 89170-52080 · 89170-52330 · 89170-52340 · 89170-52350 |
| 89173A | Right front air bag sensor | 89173-59055 · 89173-59125 · 89173-59225 |
| 89174A | Left front air bag sensor | 89174-59015 · 89174-59065 · 89174-59155 |
| 89860 | Right side airbag sensor assembly | 89860-52010 · 89860-52050 |
| 89860A | Left side air bag sensor assembly | 89830-52010 · 89830-52050 |
