Toyota YARIS ABS 和 VSC — Figure 8414

Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 2 images and 12 PNC and OE references.

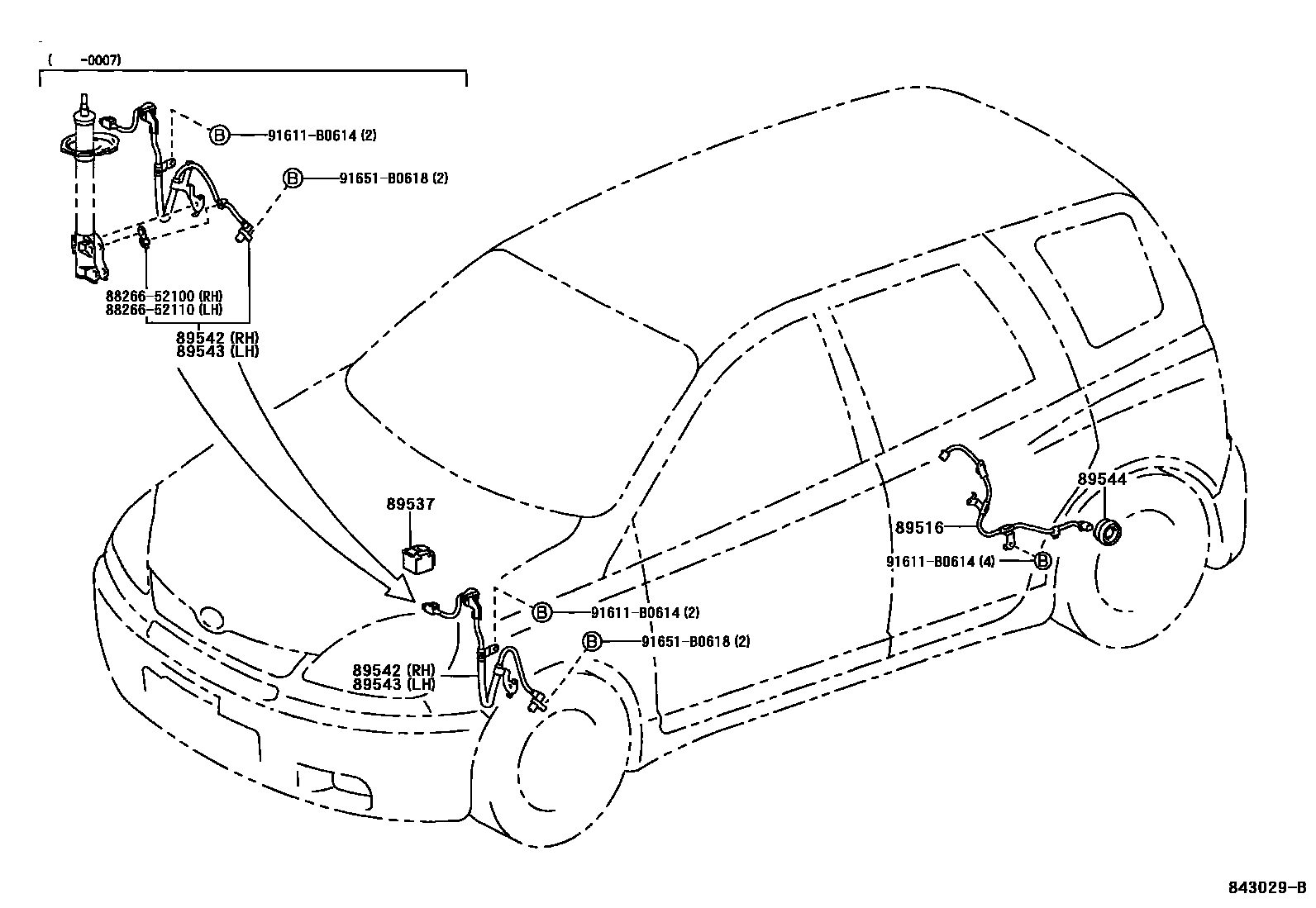

Toyota YARIS ABS 和 VSC EPC diagram — 843029B
ABS 和 VSC — 843029B (199908 – 200211)

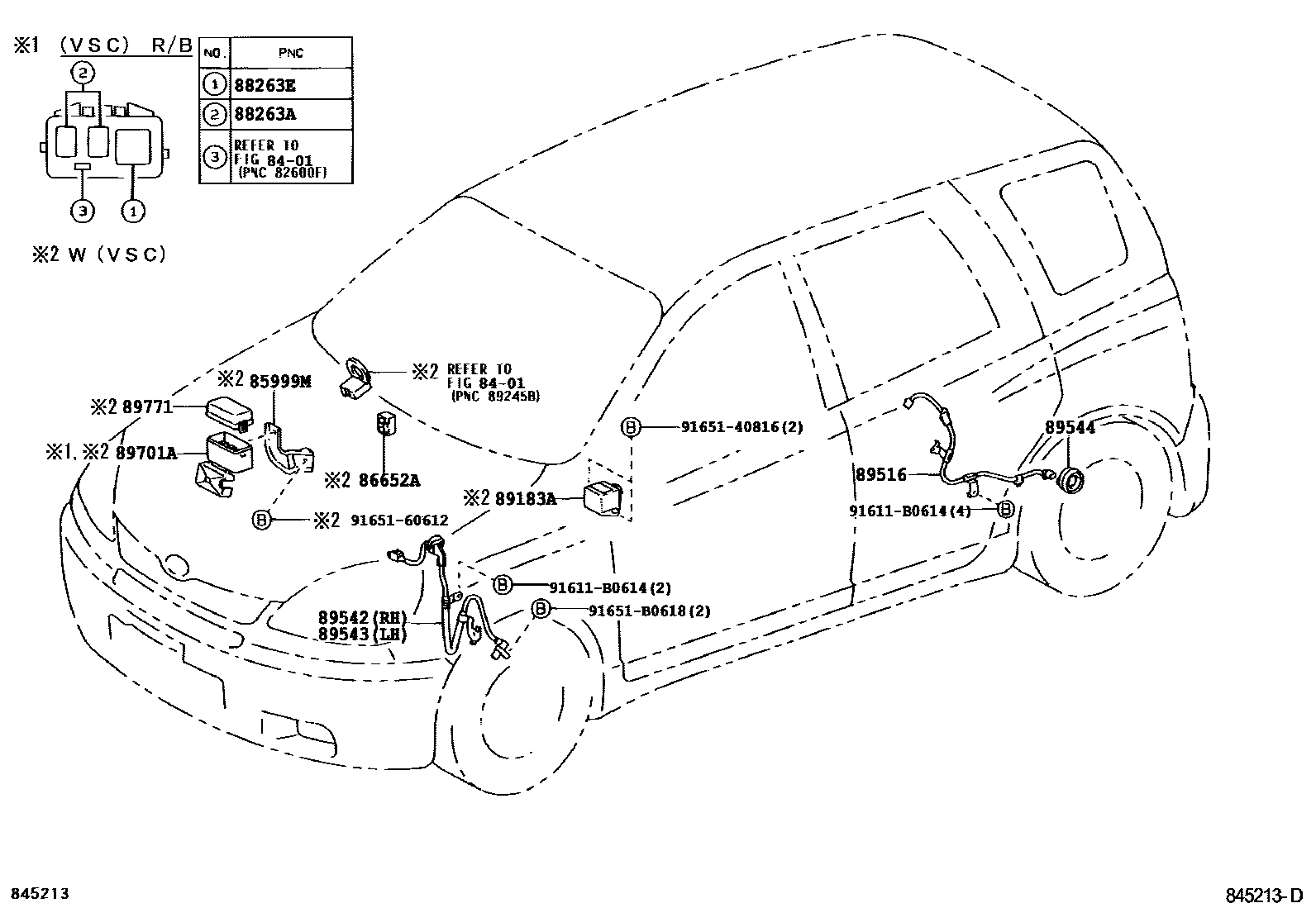

Toyota YARIS ABS 和 VSC EPC diagram — 845213D
ABS 和 VSC — 845213D (200211 – 200509)

PNC and OE references

PNCPart nameOE numbers
85999MRelay bracket85999-52020
86652AAnti-skid control buzzer assembly86652-48010
88263AAnti-skid control relay88263-32070
88263ENo. 2 anti-skid control relay88263-21010
89183AYaw rate sensor89183-48010
89516Anti-skid control sensor wiring harness89516-52010 · 89516-52020
89537Active headlight relay89537-52020
89542Right front wheel speed sensor04895-52010 · 89542-52010
89543Left front wheel speed sensor04895-52020 · 89543-52010
89544Anti-skid control sensor89544-12010 · 89544-52010 · 89544-52020 · 89544-52030
89701AABS relay box sub-assembly89701-21020
89771ABS relay box upper cover89771-21020
