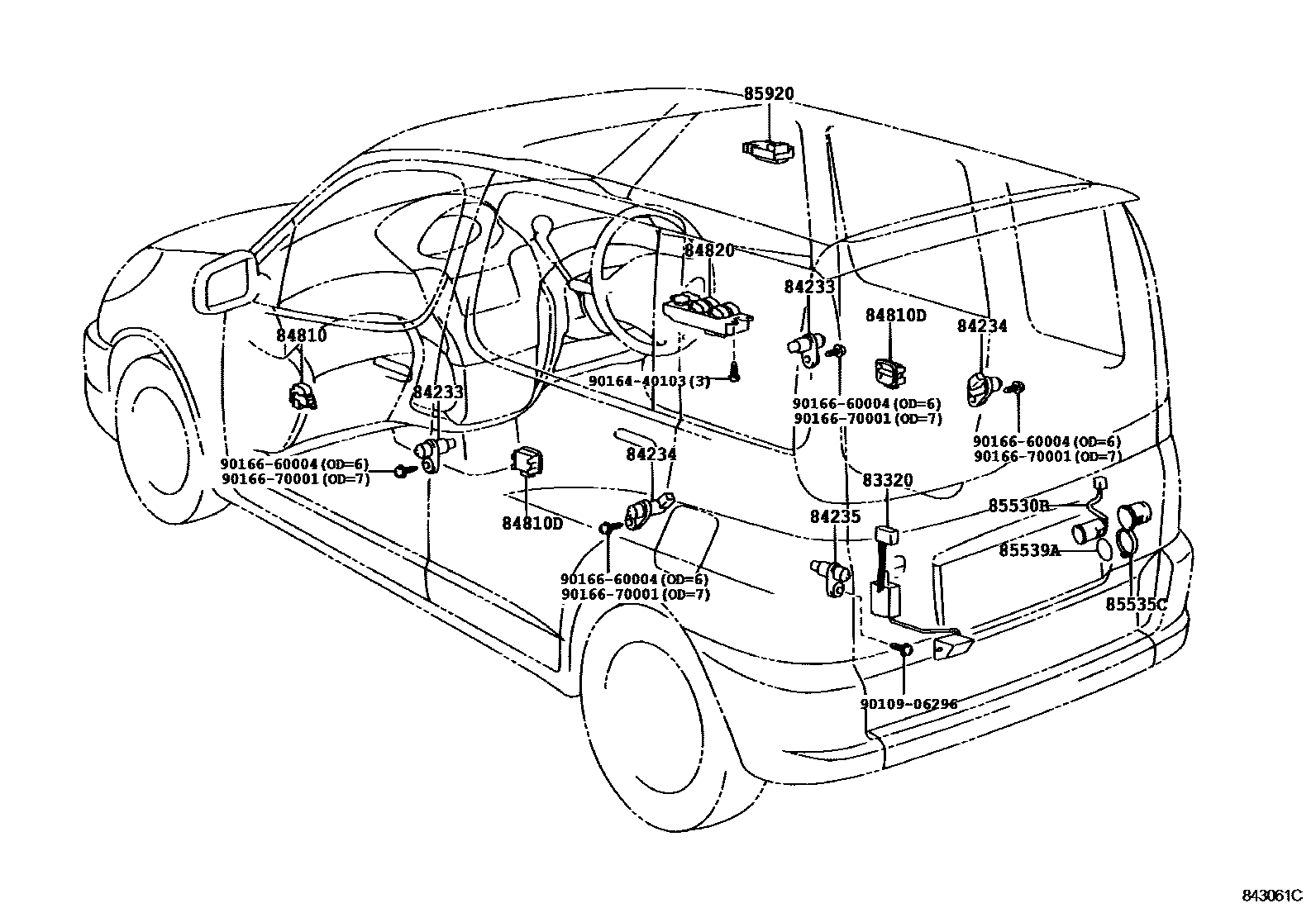

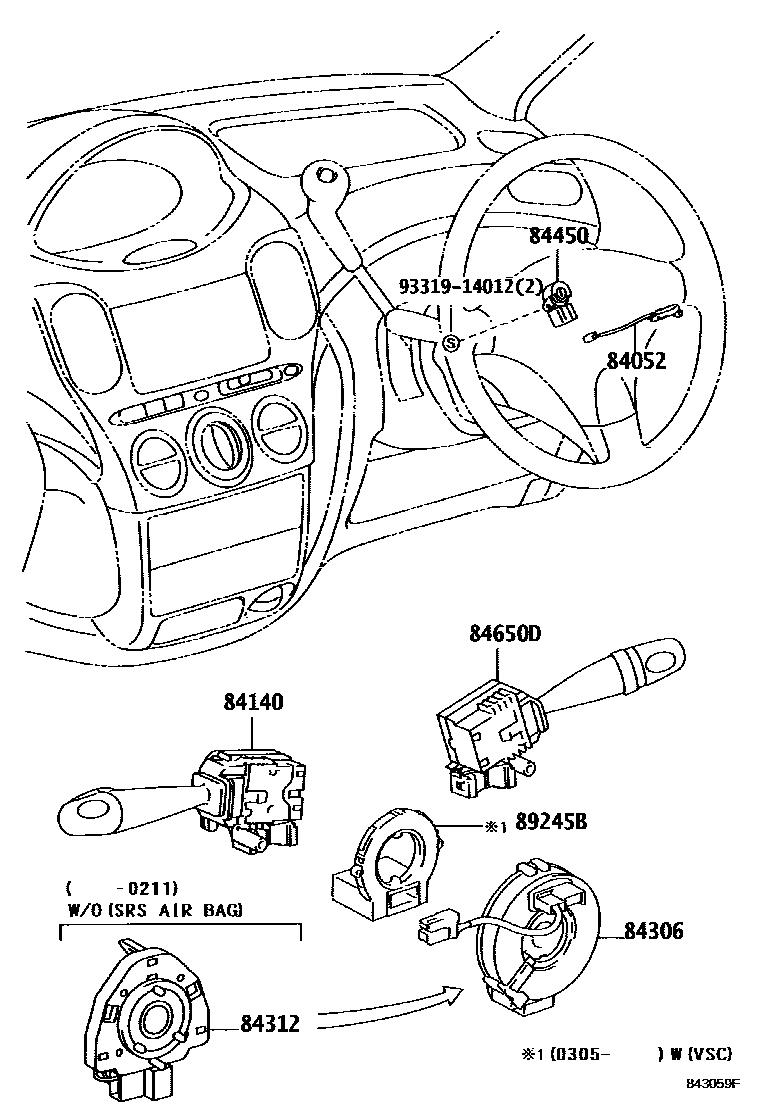

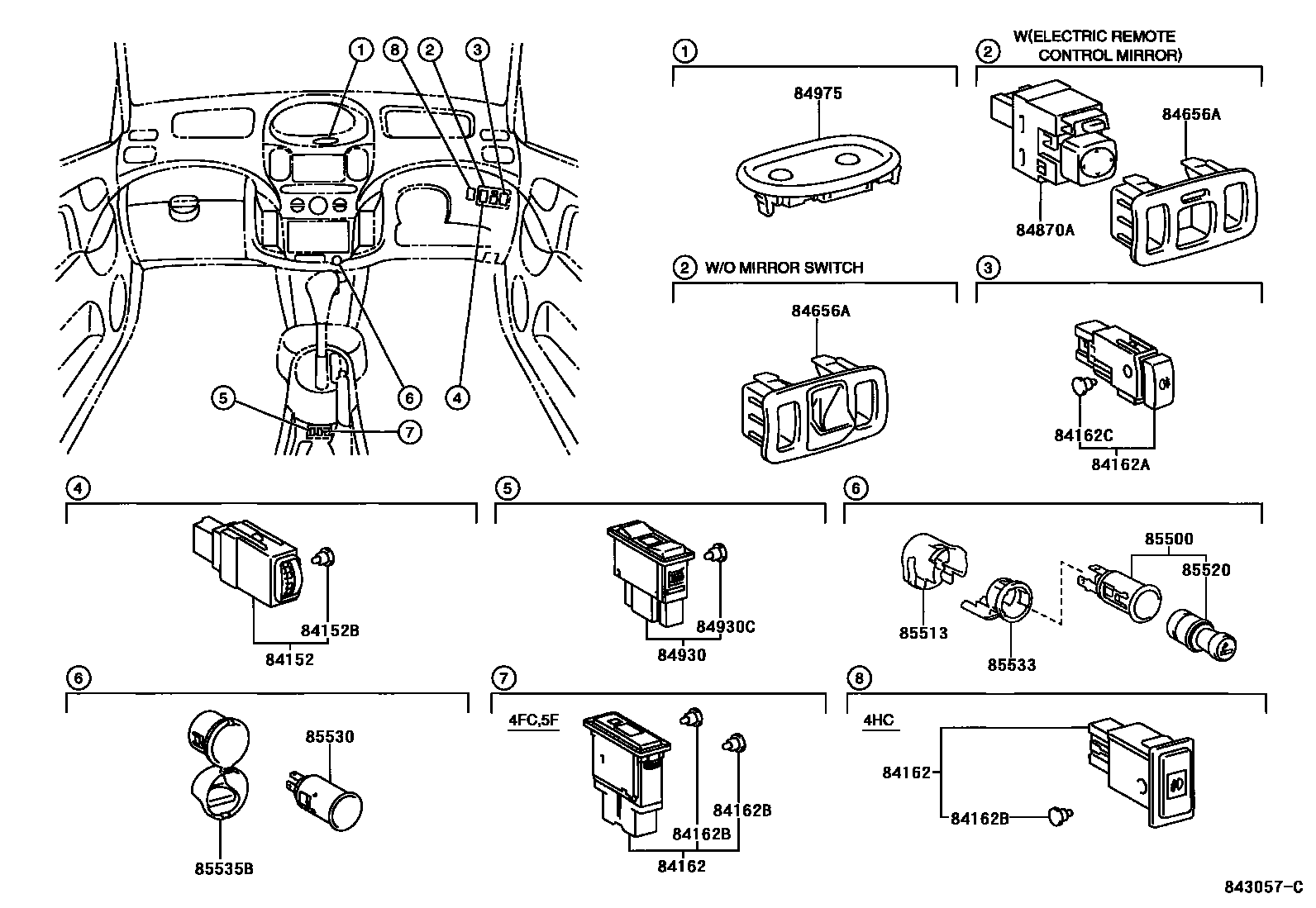

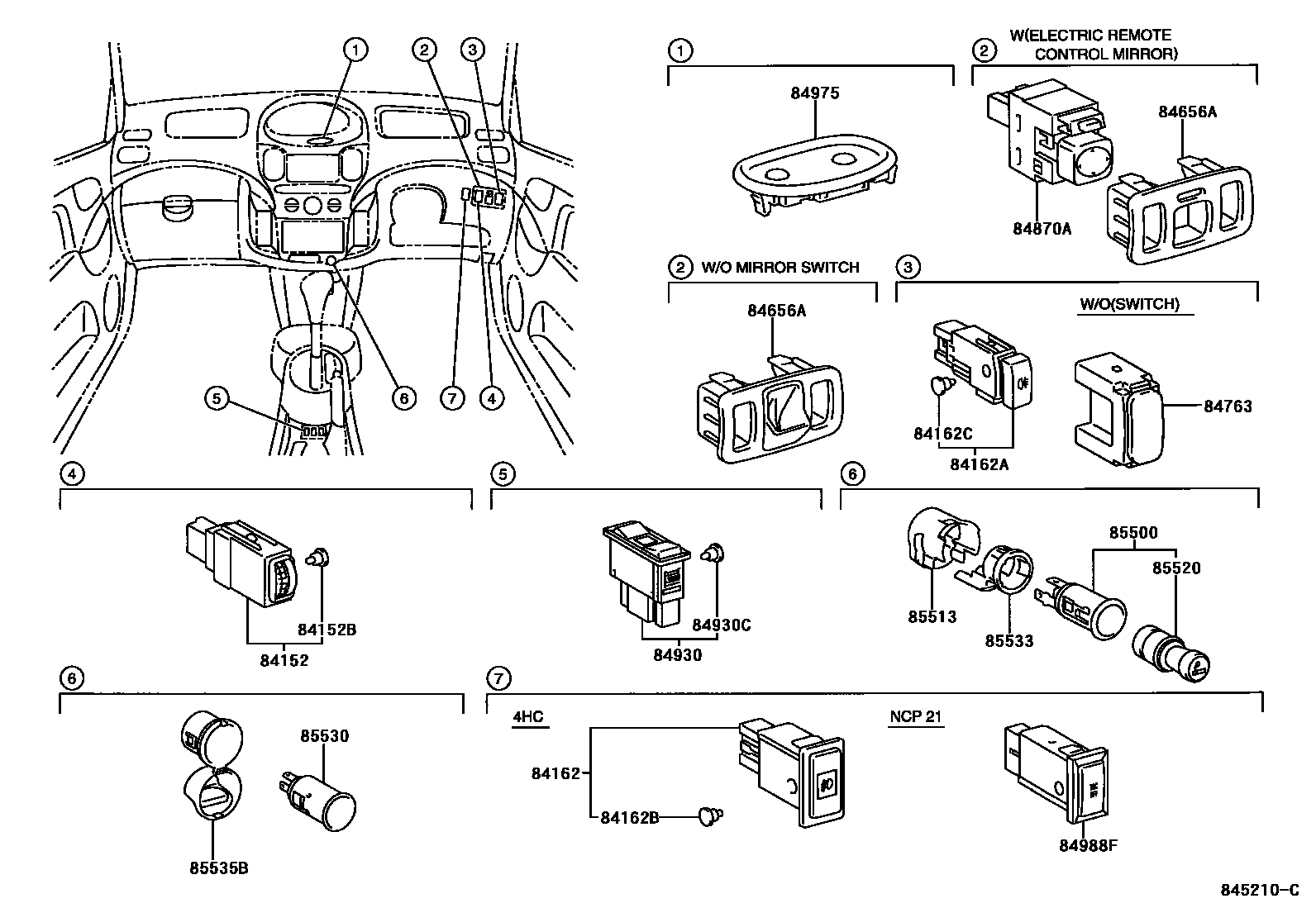

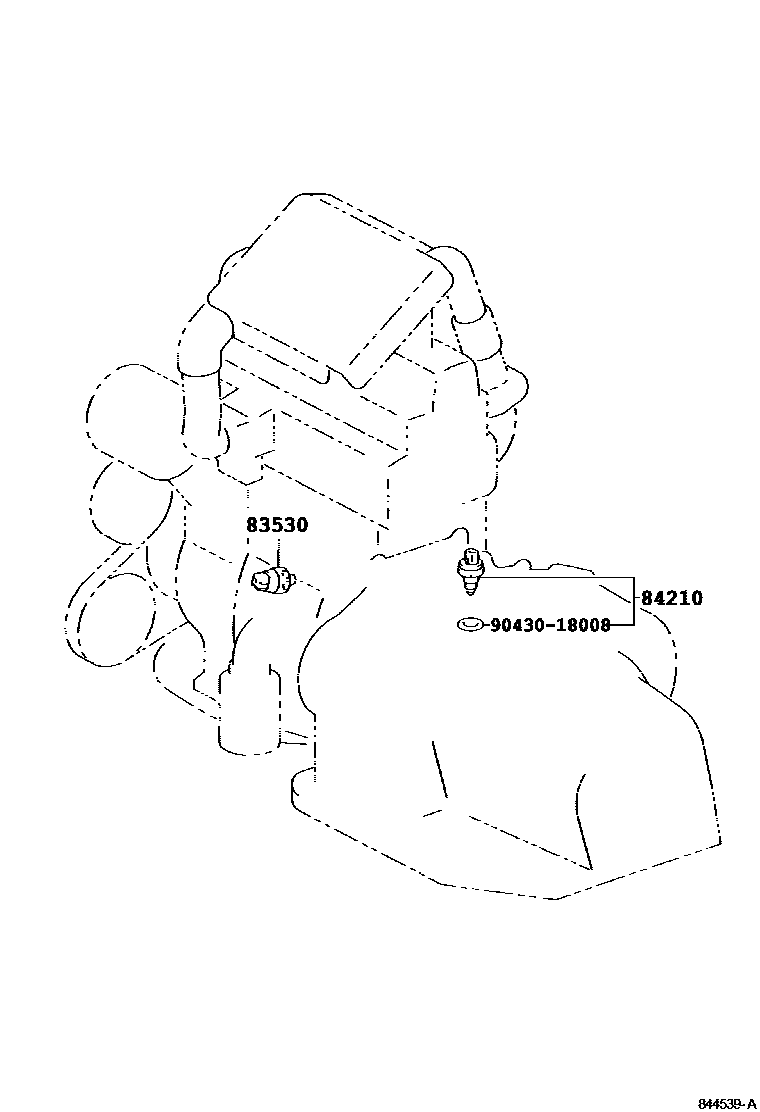

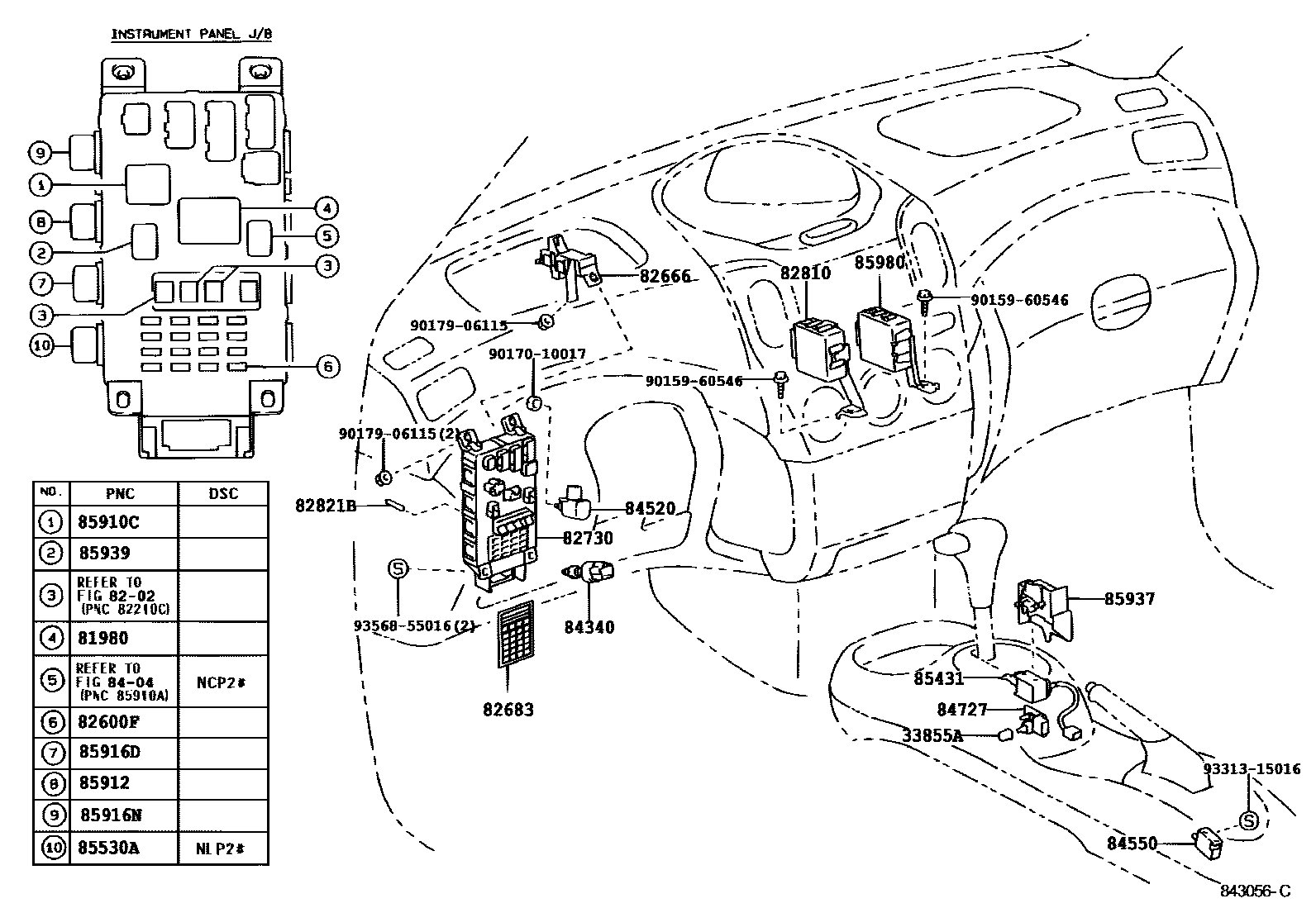

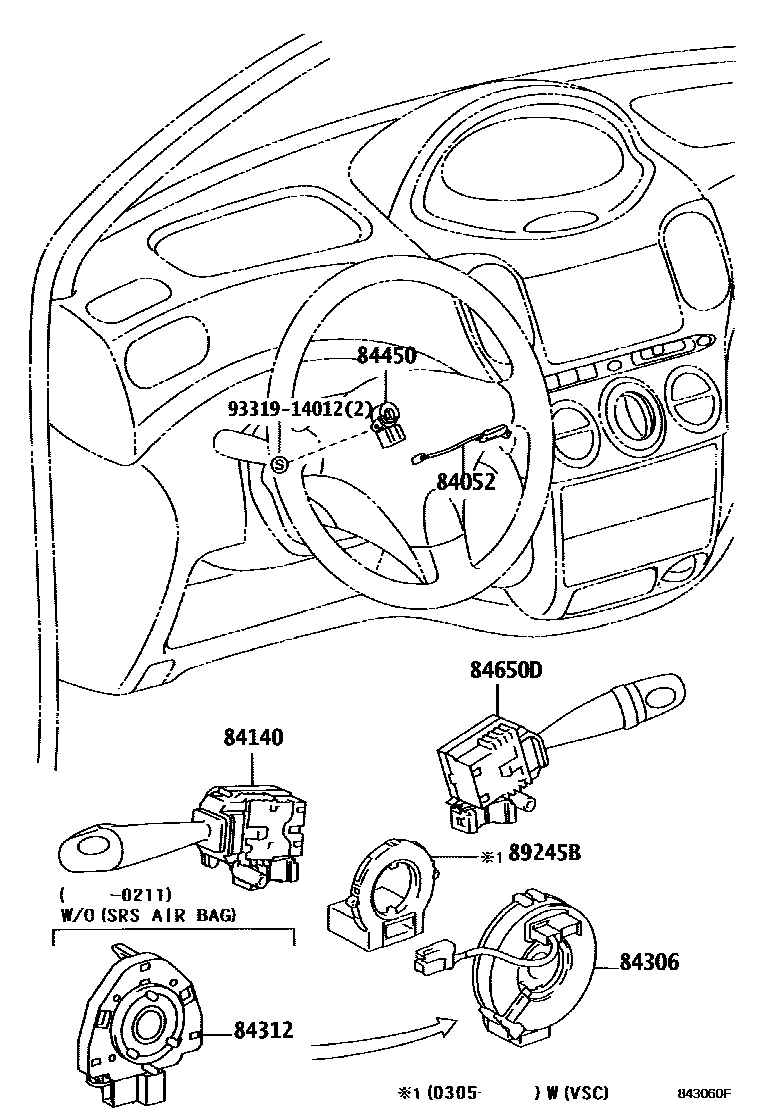

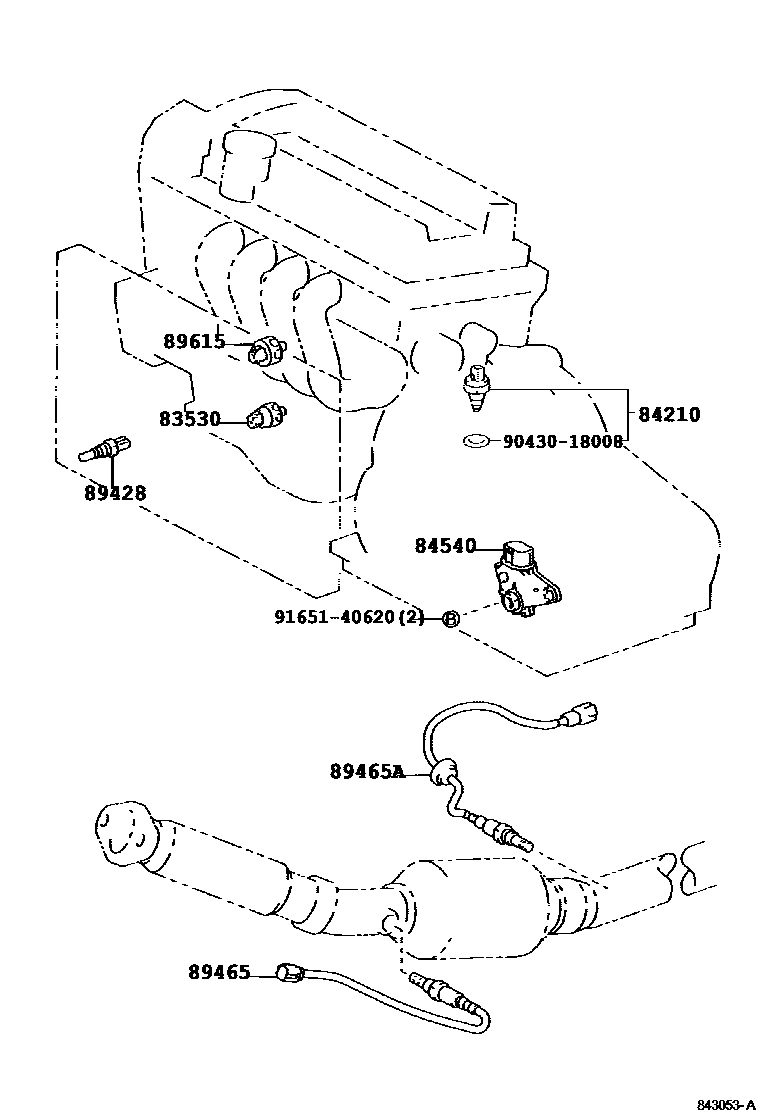

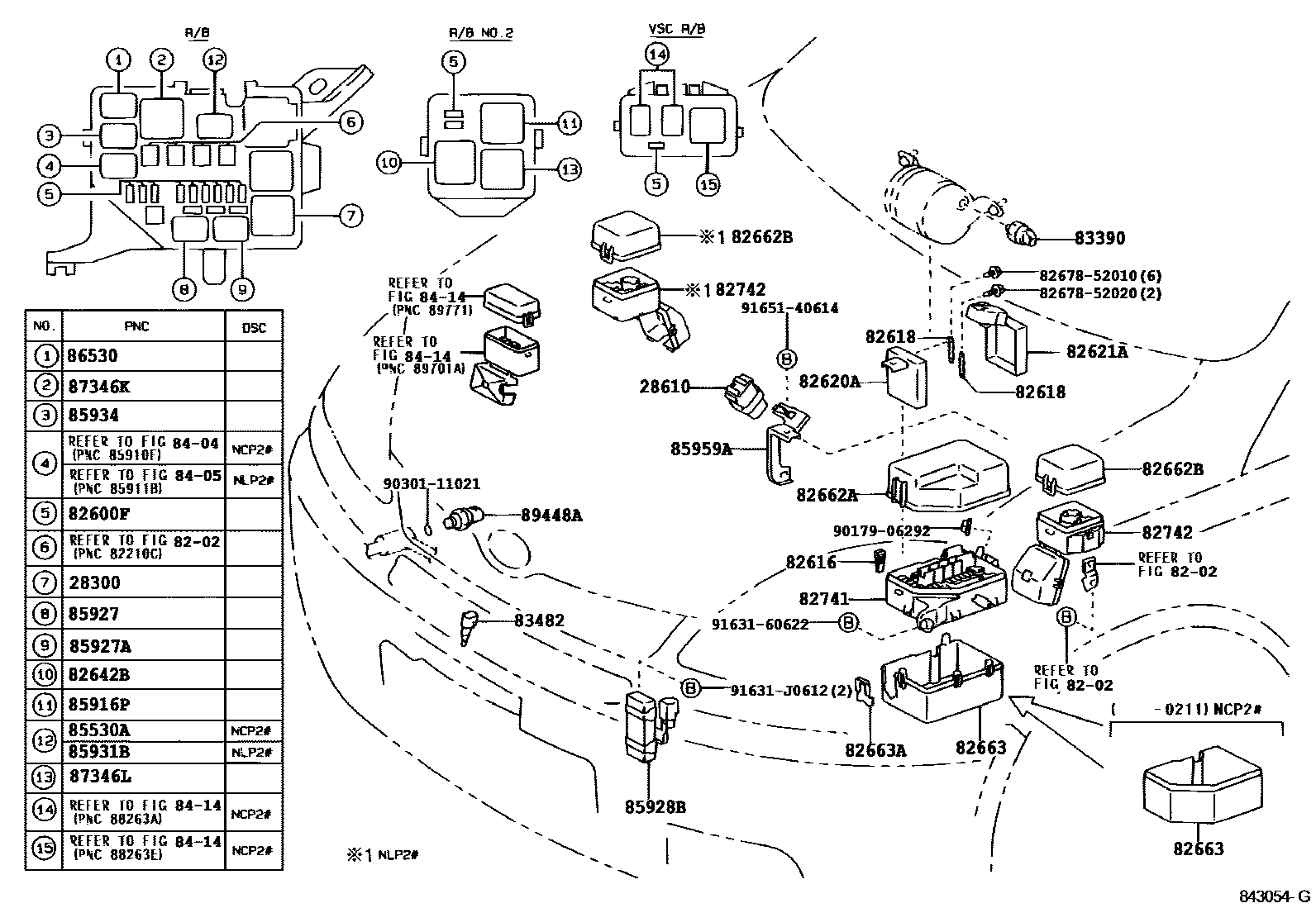

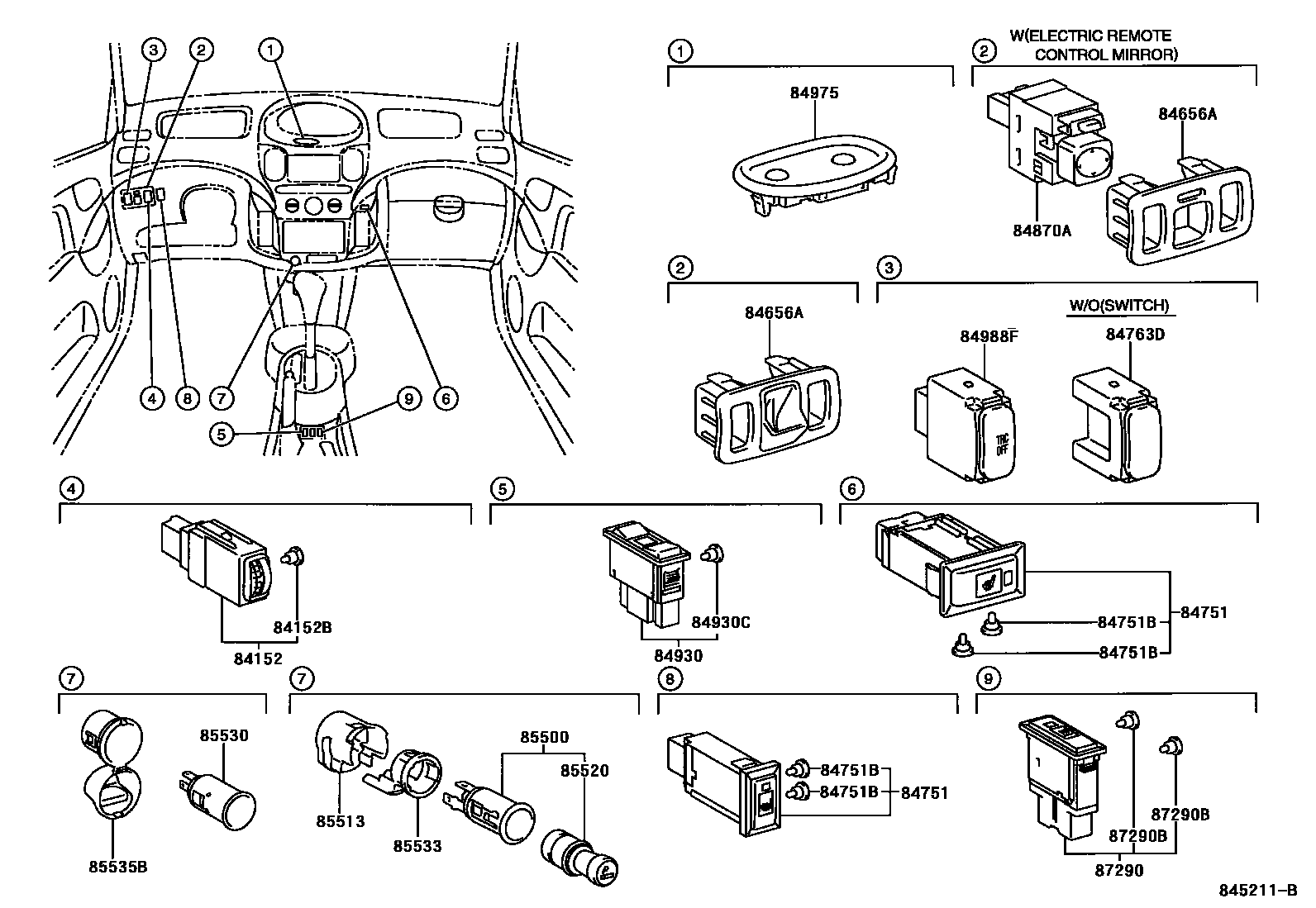

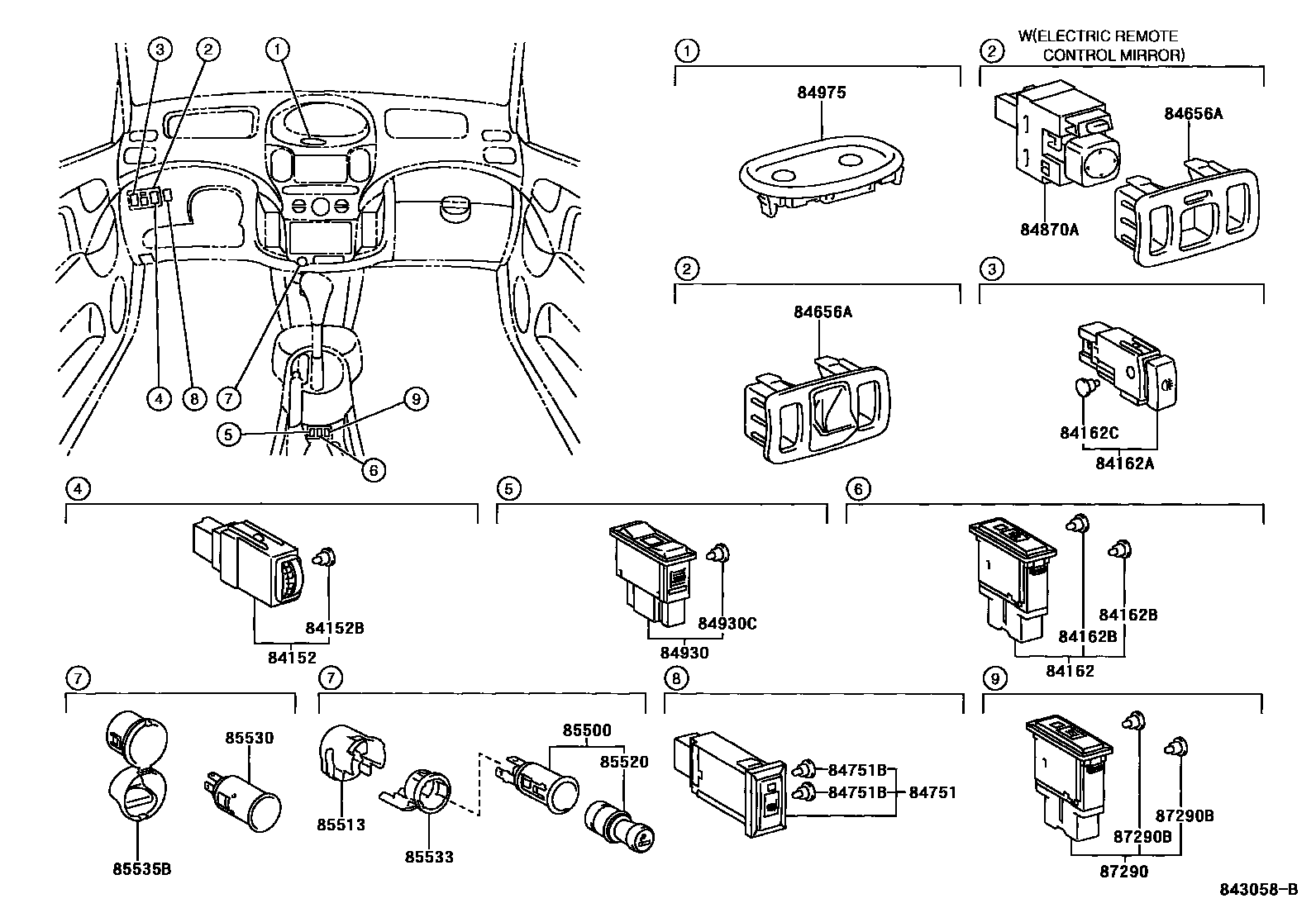

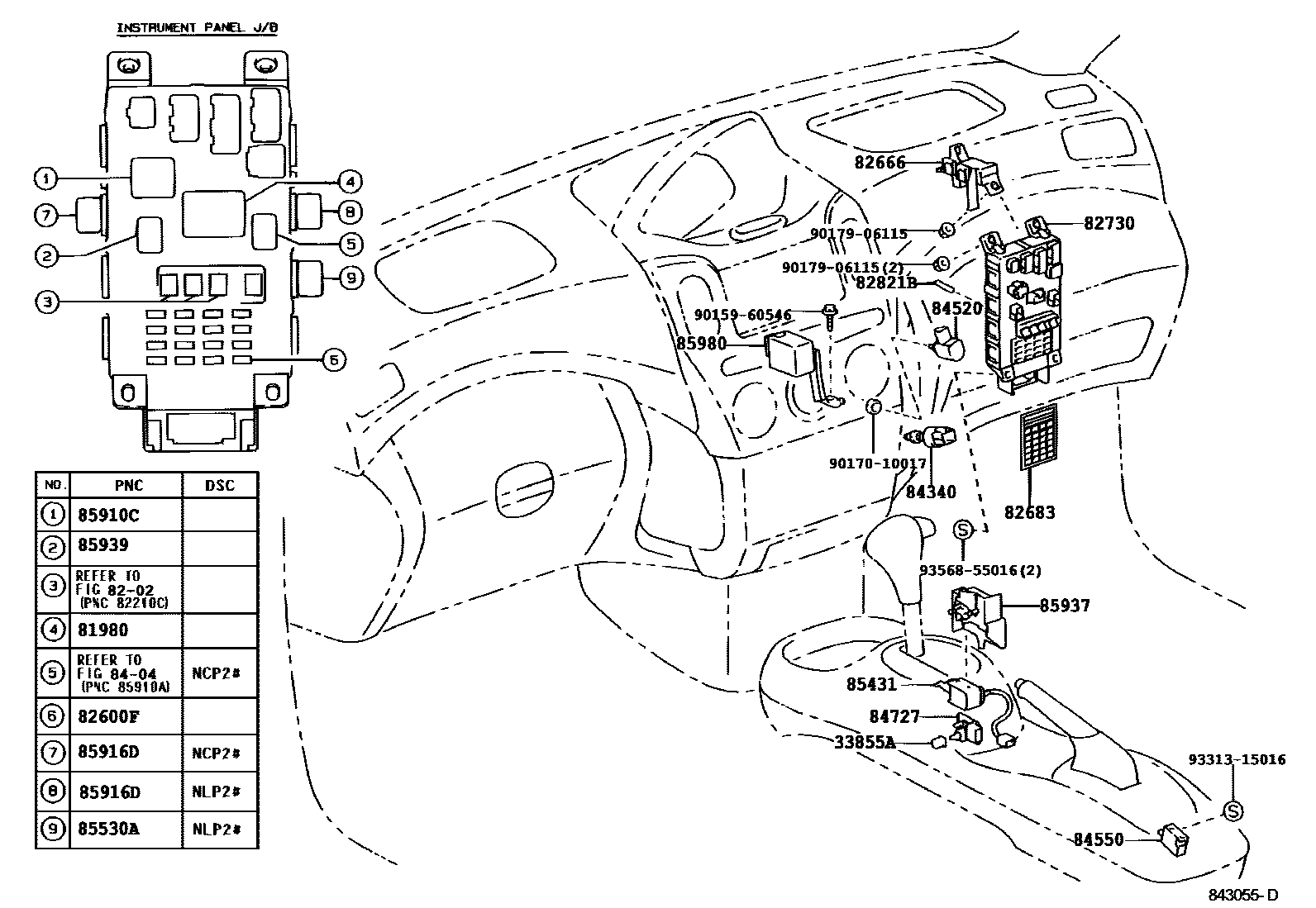

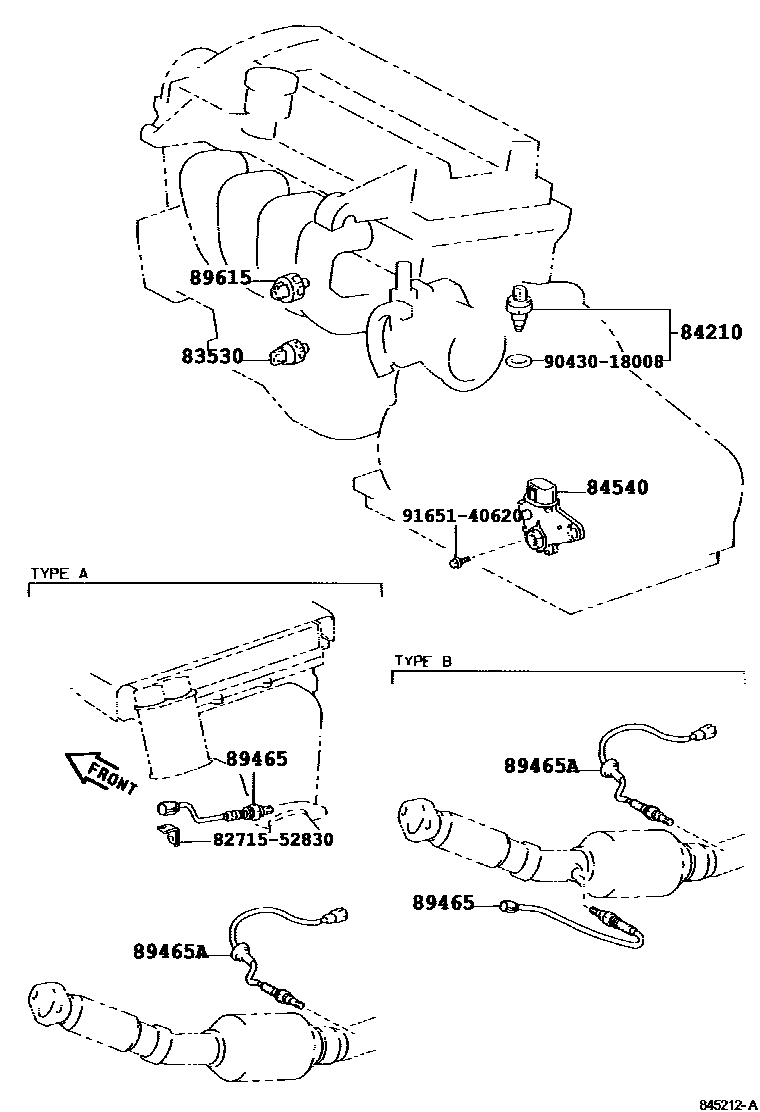

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 13 images and 91 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28610 | Glow plug relay assembly | 28610-67010 |
| 33855A | Shift lock unit cover | 33855-52010 |
| 81980 | Turn signal flasher relay assembly | 81980-50030 |
| 82600F | Spare fuse | 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011 · 90982-09012 · 90982-09013 |
| 82616 | fuse puller | 82616-20010 |
| 82618 | Spare fuse | 82618-52010 · 82618-52030 · 82618-52040 |
| 82620A | Fuse box assembly | 82620-52010 · 82620-52011 |
| 82621A | Fuse cover | 82621-52020 · 82621-52021 · 82621-52030 · 82621-52031 · 82621-52080 |
| 82642B | No. 1 daytime running light relay | 90987-04006 · 90987-04010 |
| 82662A | No. 1 relay box upper cover | 82662-52070 · 82662-52080 · 82662-52110 · 82662-52111 · 82662-52160 · 82662-52260 |
| 82662B | No. 2 relay box upper cover | 82662-52050 · 82662-52051 |
| 82663 | Relay box lower cover | 82663-52010 · 82663-52040 |
| 82663A | No. 2 relay box lower cover | 82663-52050 |
| 82666 | Connector holder | 82666-52010 |
| 82683 | Fuse box warning nameplate | 82683-52040 · 82683-52041 · 82683-52050 · 82683-52051 |
| 82730 | Instrument panel junction box assembly | 82732-52020 · 82732-52030 |
| 82741 | Engine room relay box | 82741-52010 |
| 82742 | Engine room No. 2 relay box | 82742-52010 |
| 82810 | Driving light relay assembly | 82810-52020 |
| 82821B | Connector cover | 82821-52020 |
| 83320 | Fuel gauge sensor assembly | 83320-52060 · 83320-52061 · 83320-52100 · 83320-52170 |
| 83390 | Vacuum warning switch assembly | 83390-30100 |
| 83482 | Outside car ambient temperature sensor | 83482-02010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28010 · 83530-28020 · 83530-60010 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-60010 |
| 84140 | Headlight dimmer switch assembly | 84140-12510 · 84140-52020 · 84140-52030 · 84140-52040 |
| 84152 | Headlight beam height adjustment switch | 84152-52020 · 84152-52021 · 84152-52040 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 84999-10540 |
| 84162 | front fog light switch | 84160-52020 · 84160-52030 |
| 84162A | Rear fog light switch | 84165-52020 |
| 84162B | fog light switch bulb | 84999-10310 · 84999-10320 |
| 84162C | Bulb (for rear fog light switch) | 90010-09005 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-52010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-52020 |
| 84235 | Door control light switch assembly (for back door) | 84231-52010 |
| 84306 | Spiral cable sub-assembly | 84306-52020 · 84306-52041 · 84306-52050 |
| 84312 | Speaker contact piece | 84312-52010 |
| 84340 | brake light switch assembly | 84340-20060 · 84340-32050 · 84340-47010 · 84340-47020 |
| 84450 | Ignition or starter switch assembly | 84450-52010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-52010 |
| 84550 | Parking brake switch assembly | 84550-30080 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-52040 · 84652-52050 · 84652-52070 · 84652-52080 |
| 84727 | Shift lock control switch | 84727-52010 |
| 84751 | Seat heater switch | 84751-48030 · 84751-52010 |
| 84751B | Seat heater switch light bulb | 84999-10310 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84810D | Rear electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-16070 · 84820-16090 · 84820-16100 · 84820-52040 · 84820-52080 · 84820-52090 · 84820-52140 · 84820-52150 · 84820-52160 · 84820-52170 |
| 84870A | Exterior rearview mirror switch assembly | 84870-12130 |
| 84930 | Door control switch assembly | 84930-52010 |
| 84930C | Light bulb (for door control switch) | 84999-10310 |
| 84975 | trip odometer switch | 84975-52060 · 84975-52070 |
| 84988F | traction control switch | 84988-20040 · 84988-52030 |
| 85431 | Shift lock solenoid valve | 85431-52010 |
| 85500 | Cigarette lighter assembly | 85500-28050 |
| 85513 | Cigarette lighter cover | 85513-12020 · 85513-28010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 |
| 85530A | power outlet relay | 90987-02012 · 90987-02022 · 90987-02027 |
| 85530B | No. 1 rear power socket assembly | 85530-30010 · 85530-33020 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-30060 |
| 85535B | No. 1 power outlet cover | 85535-52010 · 85535-52050 |
| 85539A | Note label on rear power outlet | 85539-60020 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04006 · 90987-04010 |
| 85912 | defogger relay | 90987-02012 · 90987-02027 |
| 85916D | fog light relay | 90987-02012 · 90987-02027 |
| 85916N | Tail light relay | 90987-02012 · 90987-02025 |
| 85916P | headlight relay | 90987-02016 · 90987-02027 |
| 85927 | cooling fan relay | 90987-02012 · 90987-02022 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85928B | Cooling fan resistor | 85928-52010 |
| 85931B | Fuel heater relay | 90987-02012 · 90987-02022 · 90987-02027 |
| 85934 | Electromagnetic clutch relay | 90987-02012 · 90987-02022 · 90987-02028 |
| 85937 | Shift lock control protection device | 85937-52010 |
| 85939 | Power window relay | 90987-02012 · 90987-02027 |
| 85959A | Relay mounting parts | 85959-52010 |
| 85980 | Door control relay assembly | 85980-52031 · 85980-52051 · 85980-52080 |
| 86530 | Speaker relay assembly | 90987-02012 · 90987-02022 · 90987-02027 |
| 87290 | Heater switch assembly | 87290-20020 |
| 87290B | Light bulb (for heater switch) | 84999-10310 · 90010-01049 |
| 87346K | PTC heater relay | 90987-02016 · 90987-02025 |
| 87346L | PTC heater relay | 90987-02016 · 90987-02025 |
| 89245B | steering sensor | 89245-52010 |
| 89428 | No. 2 temperature detection switch | 89428-20110 |
| 89448A | Power steering oil pressure sensor | 89448-51010 |
| 89465 | oxygen sensor | 89465-20810 · 89465-52050 · 89465-52190 |
| 89465A | Oxygen sensor No. 2 | 89465-52060 · 89465-52070 · 89465-52200 · 89465-52220 |
| 89615 | knock control sensor | 89615-22050 · 89615-52010 · 89615-52030 · 89615-52040 |
