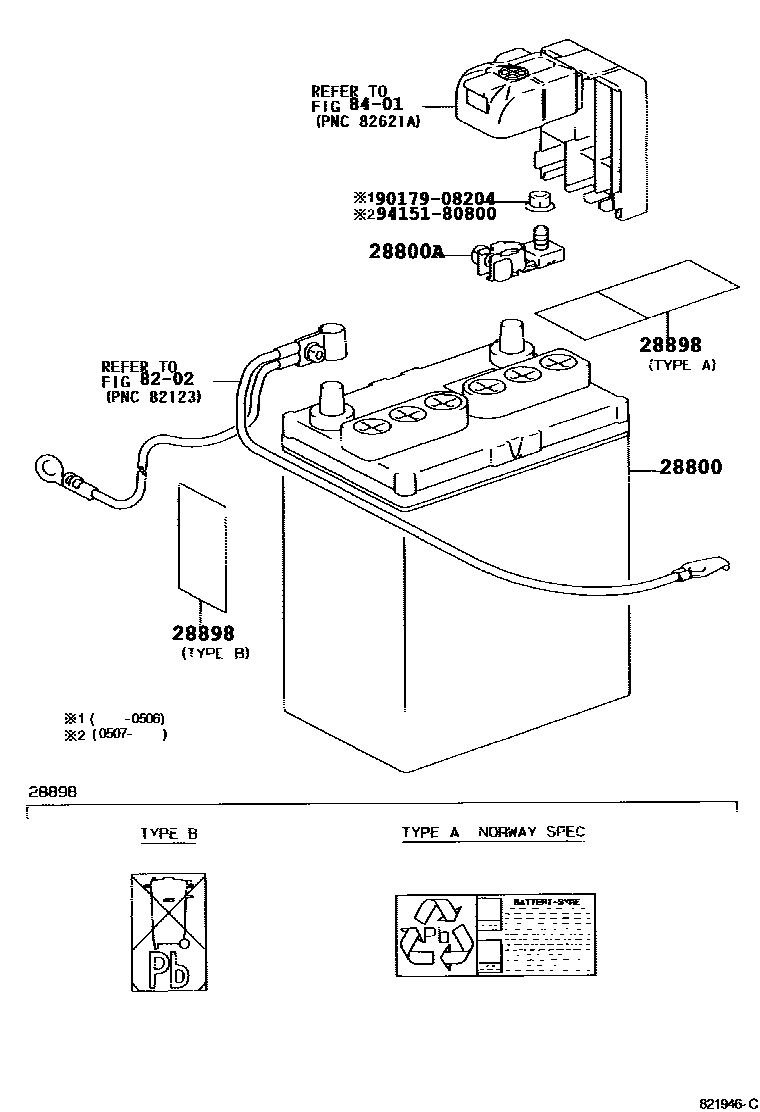

Toyota YARIS 蓄电池和蓄电池电缆 — Figure 8201
Toyota YARIS EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-15022 · 28800-21070 · 28800-21100 · 28800-46160 · 28800-54231 · 28800-67092 · 28800-67130 · 28800-74231 |
| 28800A | battery positive terminal | 90982-05053 |
| 28898 | battery plates | 28898-46010 · 28898-46020 |
