Toyota YARIS 车内灯 — Figure 8121

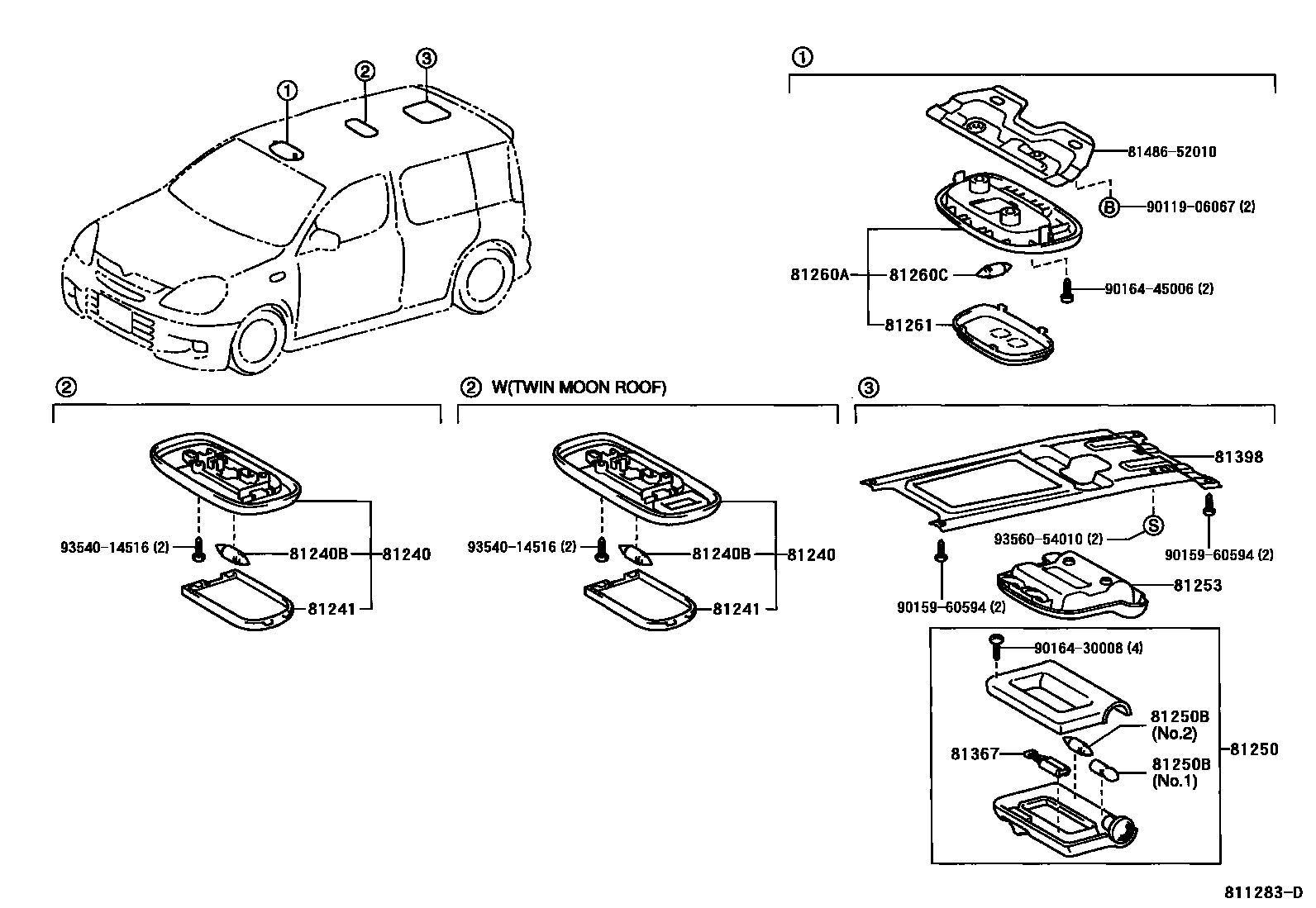

Toyota YARIS EPC diagram 8121, 车内灯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-12020 · 81241-44010 |
| 81250B | Interior light bulb No. 2 | 90981-12029 · 90981-12033 · 90981-14002 |
| 81260C | Light bulb (for reading lamp) | 90981-14004 |
| 81261 | Reading lamp shades and covers | 81261-46010 |
| 81367 | Interior light battery | 81367-52020 |
| 81398 | Rear interior light bracket | 81398-52010 · 81398-52011 · 81398-52012 |
