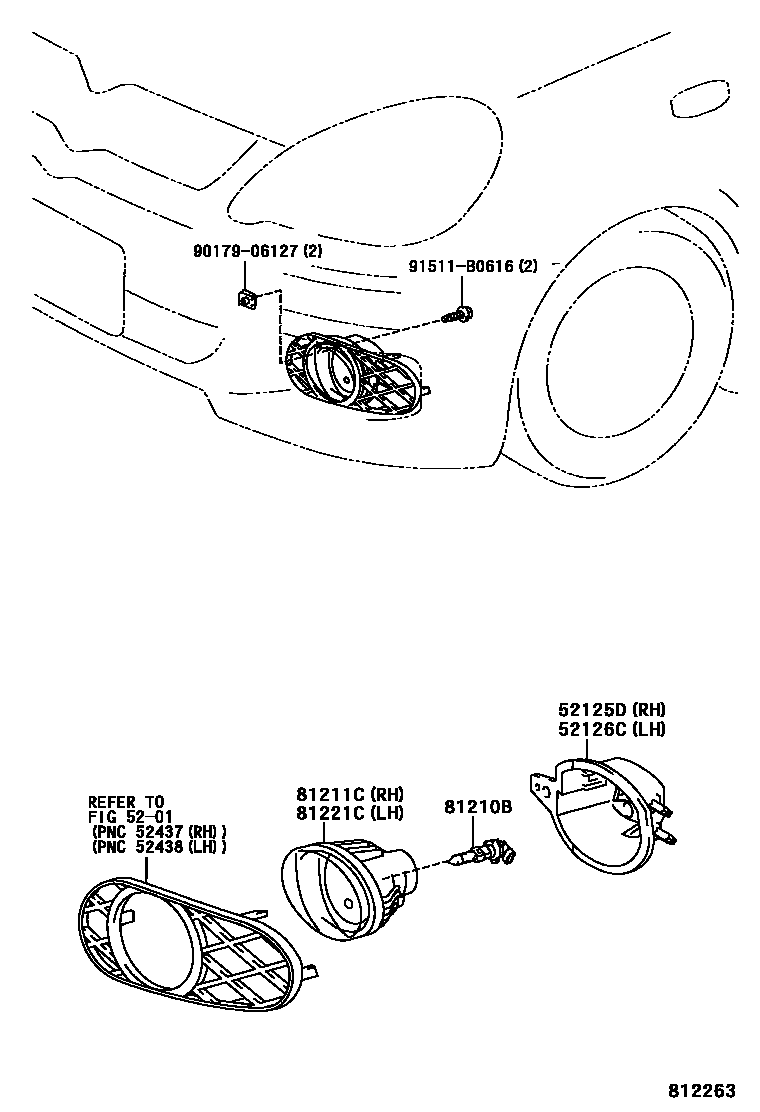

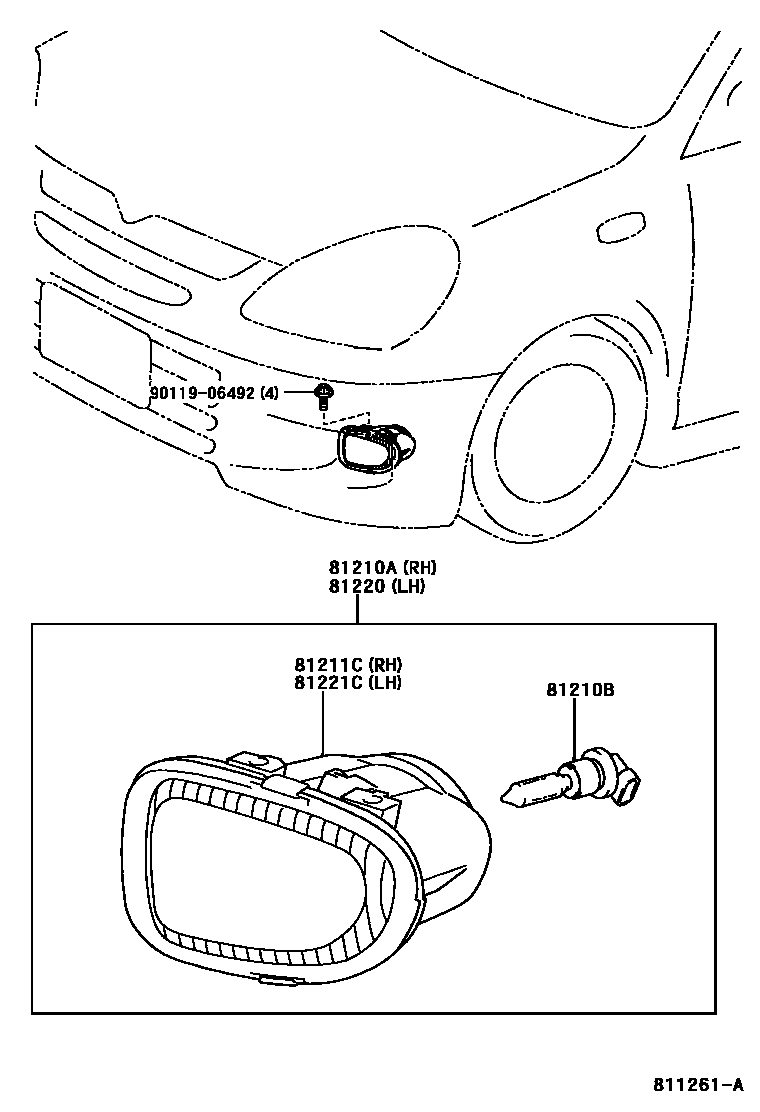

Toyota YARIS Fog Lamp — Figure 8102
Toyota YARIS EPC diagram 8102, Fog Lamp, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52125D | Right fog light mounting bracket | 52125-52010 |
| 52126C | Left fog light mounting bracket | 52126-52010 |
| 81210A | Right fog light assembly | 81210-52010 · 81210-52011 |
| 81210B | fog light bulb | 90080-81040 · 90981-13047 |
| 81211C | Right fog light assembly | 81211-52010 · 81211-52050 · 81211-52051 |
| 81220 | Left fog light assembly | 81220-52010 · 81220-52011 |
| 81221C | Left fog light assembly | 81221-52010 · 81221-52050 · 81221-52051 |
