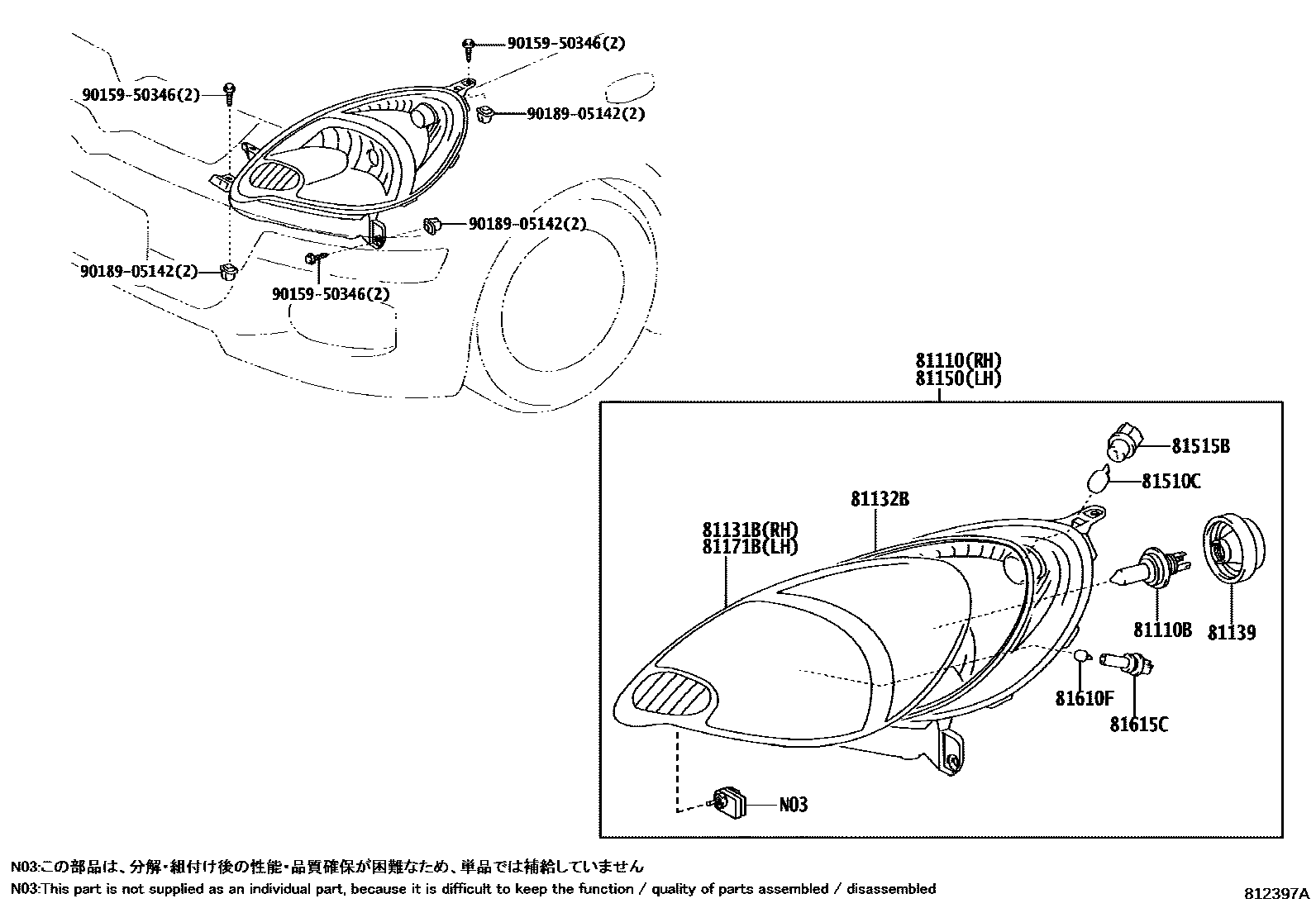

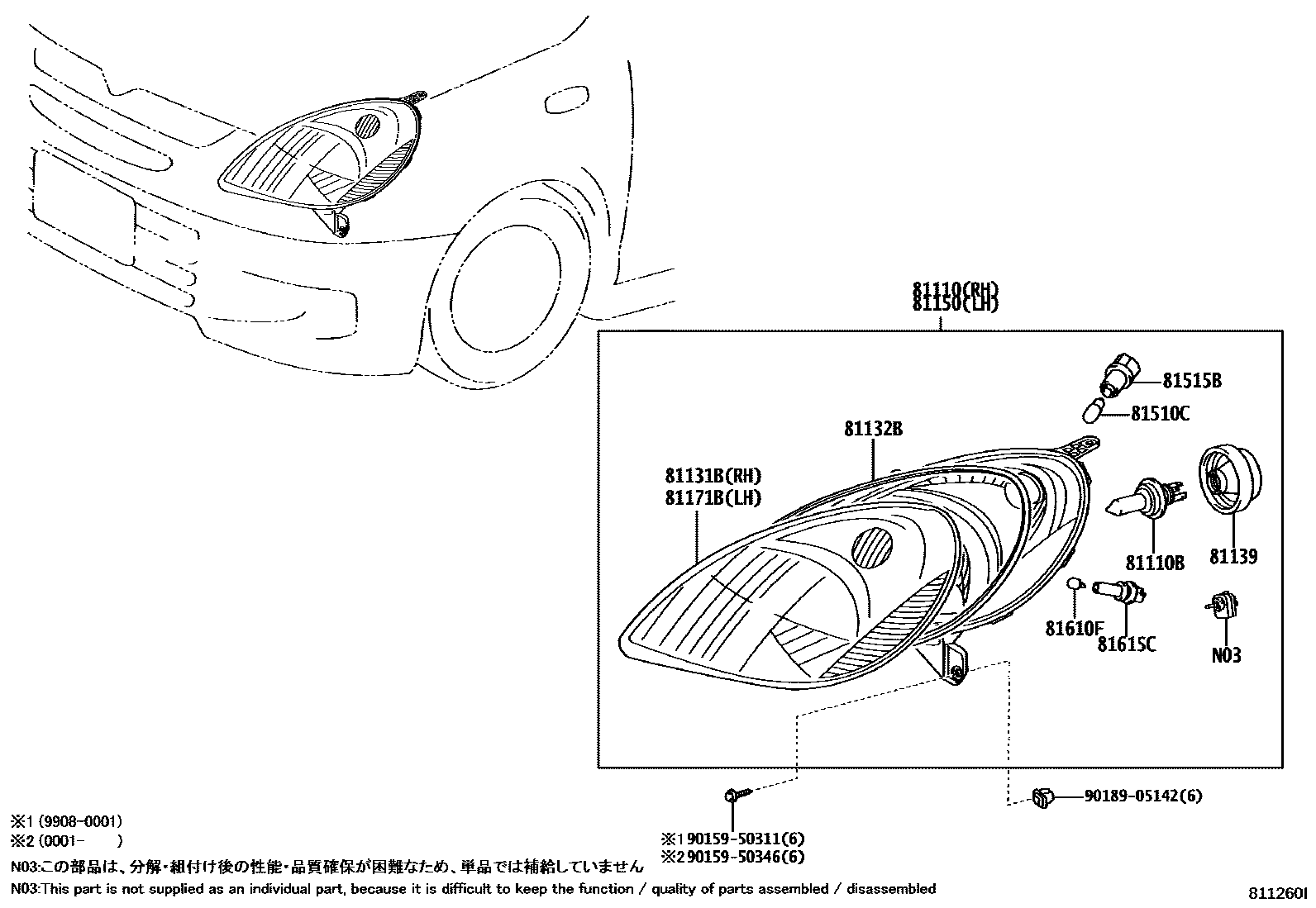

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-52070 · 81110-52071 · 81110-52080 · 81110-52081 · 81110-52390 · 81110-52400 |
| 81110B | Bulb (for headlight No. 1) | 90981-13058 · 90981-22002 |
| 81131B | Right headlight lampshade | 81131-52060 · 81131-52080 · 81131-52380 · 81131-52390 |
| 81132B | Headlight cover gasket | 81132-52060 · 81132-52380 |
| 81139 | Headlight lamp holder cover | 81139-1E340 · 81139-52060 |
| 81150 | Left headlight assembly | 81150-52070 · 81150-52071 · 81150-52080 · 81150-52081 · 81150-52390 · 81150-52400 |
| 81171B | Left headlight lampshade | 81171-52060 · 81171-52080 · 81171-52380 · 81171-52390 |
| 81510C | Bulb (for front turn signal lamp) | 90981-13050 · 90981-15011 |
| 81515B | Front turn signal lamp holder | 90075-60028 · 90075-99128 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615C | Width light lamp holder and wiring harness | 81138-52060 |
