Toyota YARIS 挡泥板和扰流板 — Figure 7601

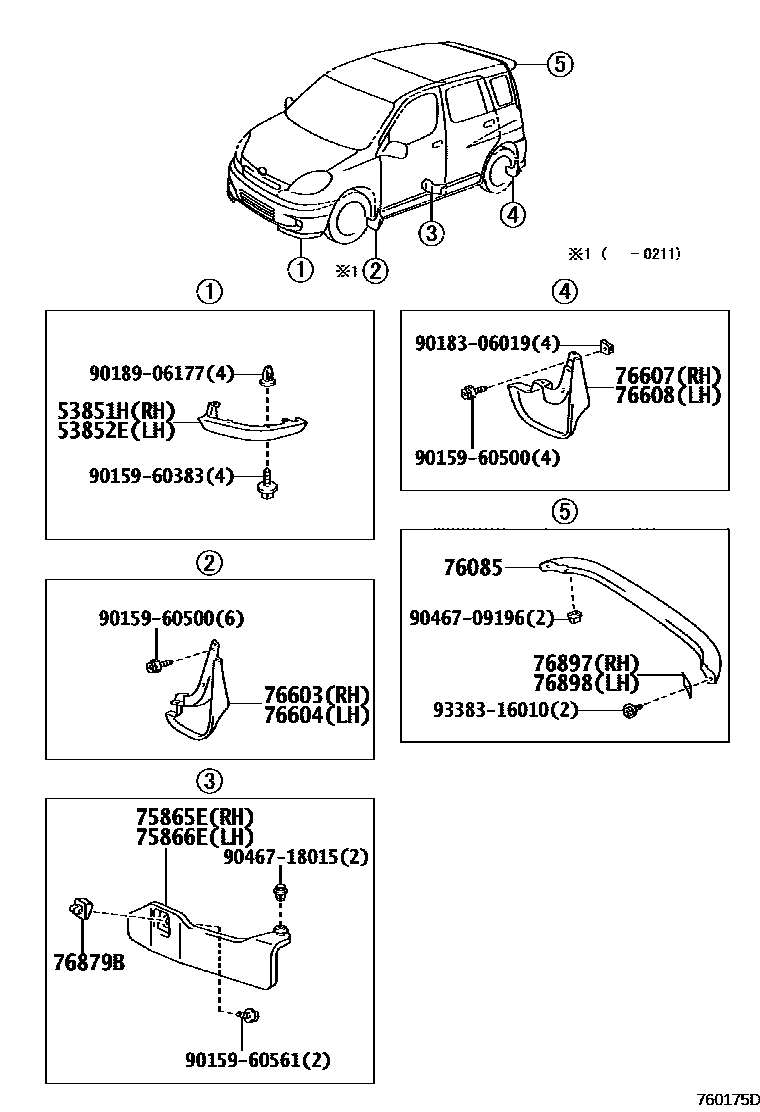

Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851H | Right front spoiler pad | 53851-52020 · 53851-52070 |
| 53852E | Left front spoiler pad | 53852-52020 · 53852-52070 |
| 75865E | Right side door sill panel protective strip protective cover | 75865-52010 |
| 75866E | Left side door sill panel protective strip protective cover | 75866-52010 |
| 76603 | Right front fender fender sub-assembly | 76621-52020 |
| 76604 | Left front fender fender sub-assembly | 76622-52020 |
| 76607 | Right rear side fender sub-assembly | 76625-52020 |
| 76608 | Left rear side fender sub-assembly | 76626-52020 |
| 76879B | No. 2 rear spoiler clip | 76879-52010 |
| 76897 | Right rear spoiler protection strip | 76897-52010 |
| 76898 | Left rear spoiler protection strip | 76898-52010 |
