Toyota YARIS 侧防护条 — Figure 7503

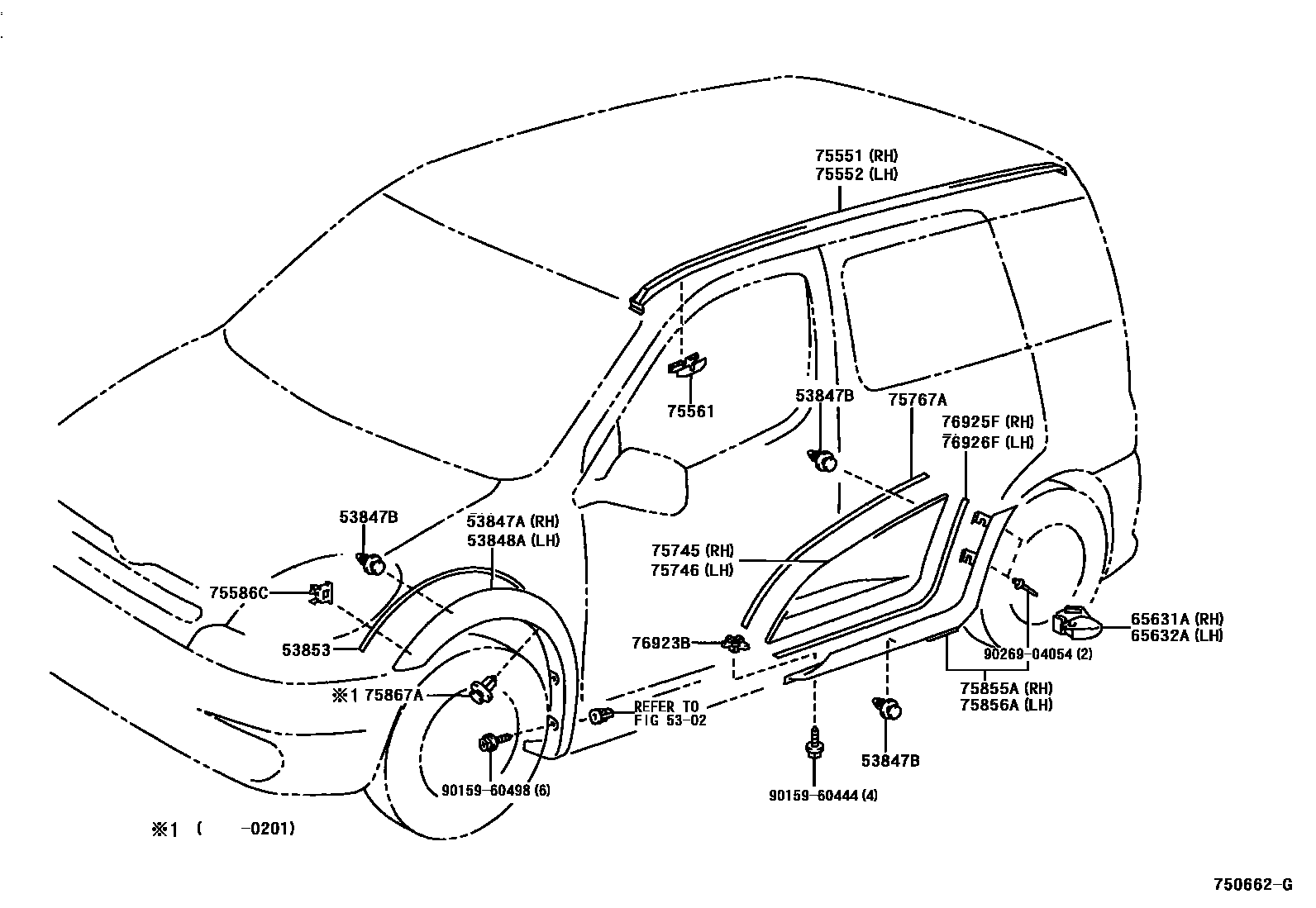

Toyota YARIS EPC diagram 7503, 侧防护条, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53847A | Right front fender or wheel arch guard strip extension | 53847-52010 |
| 53847B | Front fender external board clip | 75881-52010 · 90467-10162 |
| 53848A | Left front fender or wheel arch guard strip extension | 53848-52010 |
| 65631A | Right rear wheel house front panel | 65631-52020 |
| 65632A | Left rear wheel house front panel | 65632-52020 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-52020 · 75551-52021 · 75551-52022 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-52010 · 75552-52011 · 75552-52012 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-52010 · 75561-52020 |
| 75586C | Front fender external panel fixing parts | 53861-52010 · 75586-28010 |
| 75855A | Right rear door sill panel protective strip | 75855-52900 |
| 75856A | Left rear door sill panel protective strip | 75856-52900 |
| 75867A | Door sill panel protective strip clip | 90467-08185 |
| 76923B | Side fender fixings | 76923-52020 |
