Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.

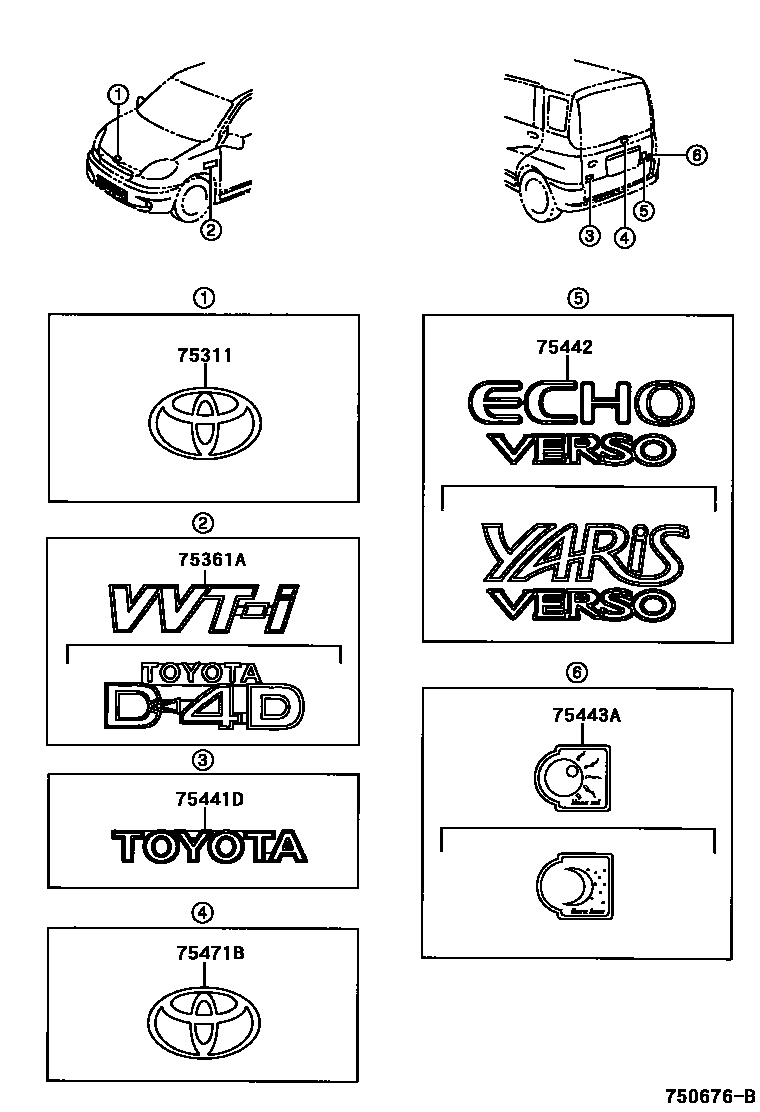

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 750676B
丰田徽标和铭牌(车外和车内) — 750676B (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75331-52040
75361AFront fender No. 1 nameplate75361-52010 · 75361-52020 · 75362-52010 · 75362-52020
75441DTrunk door No. 1 name plate75441-12650
75442Trunk door number plate No. 275442-52060 · 75442-52070 · 75442-52080
75443ATrunk door No. 3 nameplate75443-52021 · 75443-52031 · 75443-52080 · 75443-52090
75471BNo. 1 nameplate on rear body75471-13060
