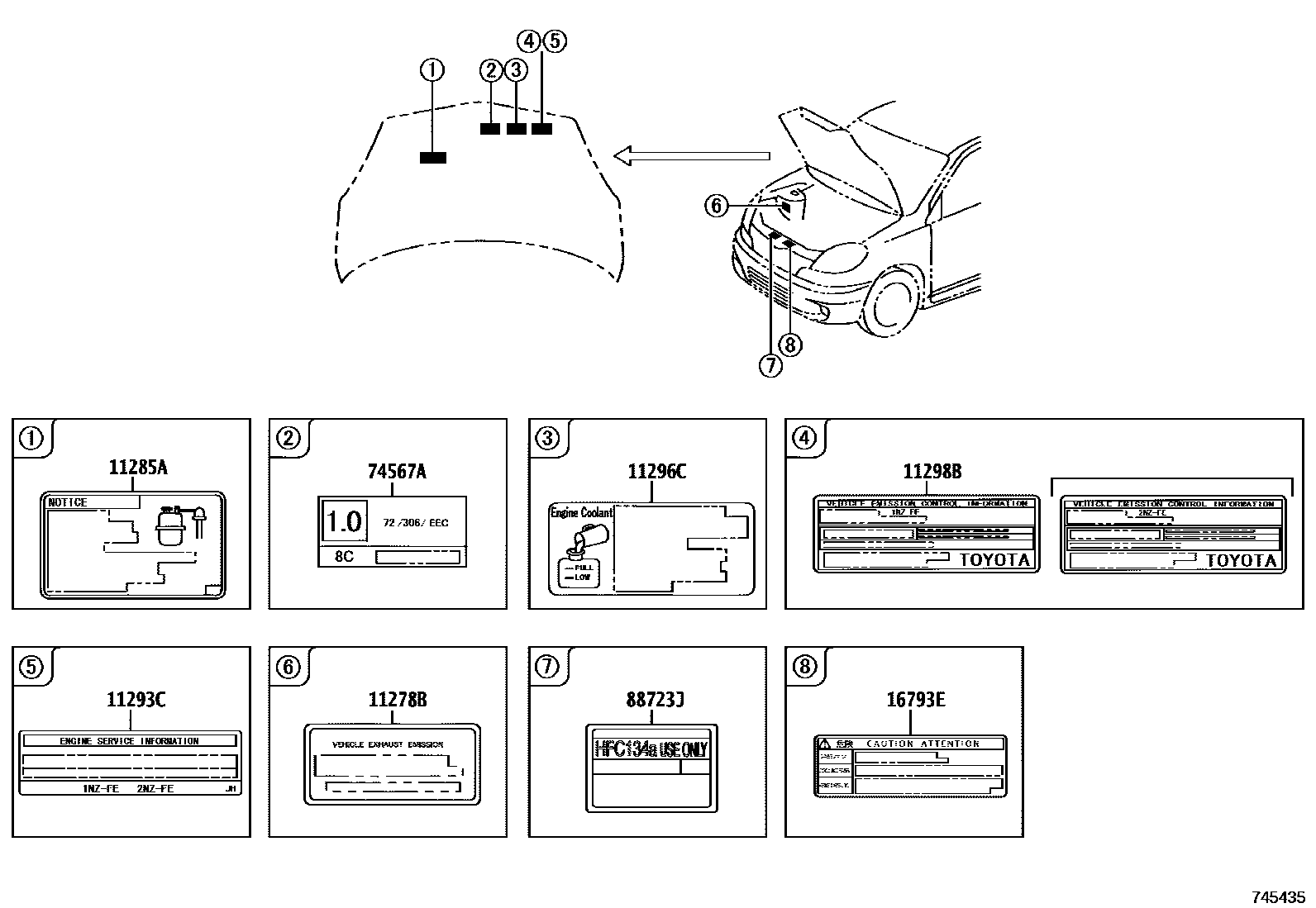

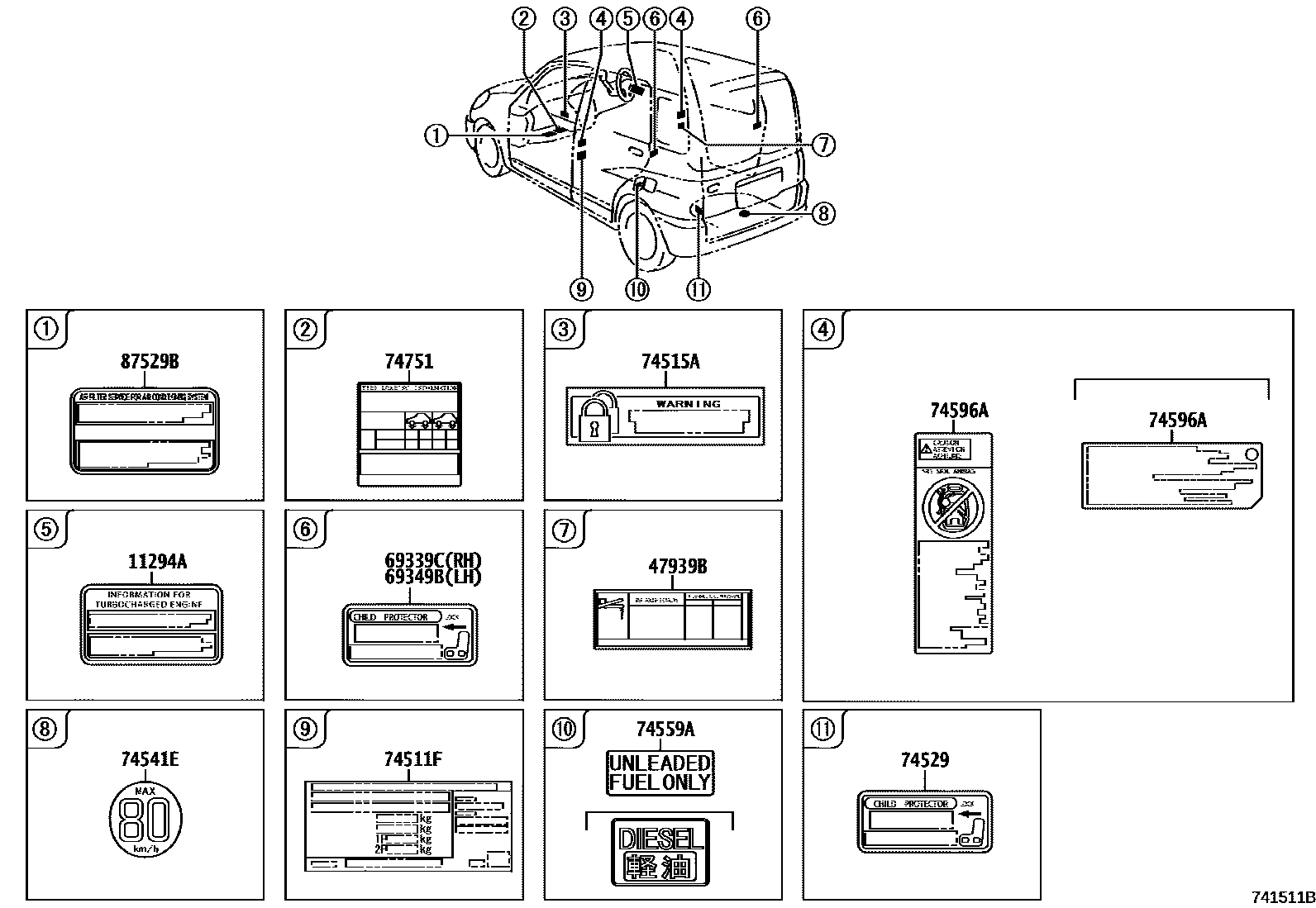

Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11278B | Engine emission standard information label | 11278-16050 |
| 11285A | Coolant System Caution Labels | 11285-33010 |
| 11293C | Adjust specification information label | 11293-21040 |
| 11294A | Turbocharger information label | 11294-64060 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 11298B | Emission Control Information Label | 11298-21040 · 11298-21050 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-46010 |
| 47939B | Load sensing valve marking information label | 47939-52010 · 47939-52030 |
| 69339C | Child Restraint Information Label | 69339-52010 |
| 69349B | Left child restraint information label | 69349-52010 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-48010 · 74511-48020 |
| 74515A | Anti-theft warning nameplate | 74515-52010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-52010 |
| 74541E | Small spare tire warning plate | 42668-20020 |
| 74559A | Fuel warning plate | 74559-14030 · 74559-14050 |
| 74567A | E.C.E approval number plate | 74567-20261 |
| 74596A | Side air bag warning label | 74596-12011 · 74596-12020 |
| 74751 | tire pressure information label | 42661-52130 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-52010 |
