Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

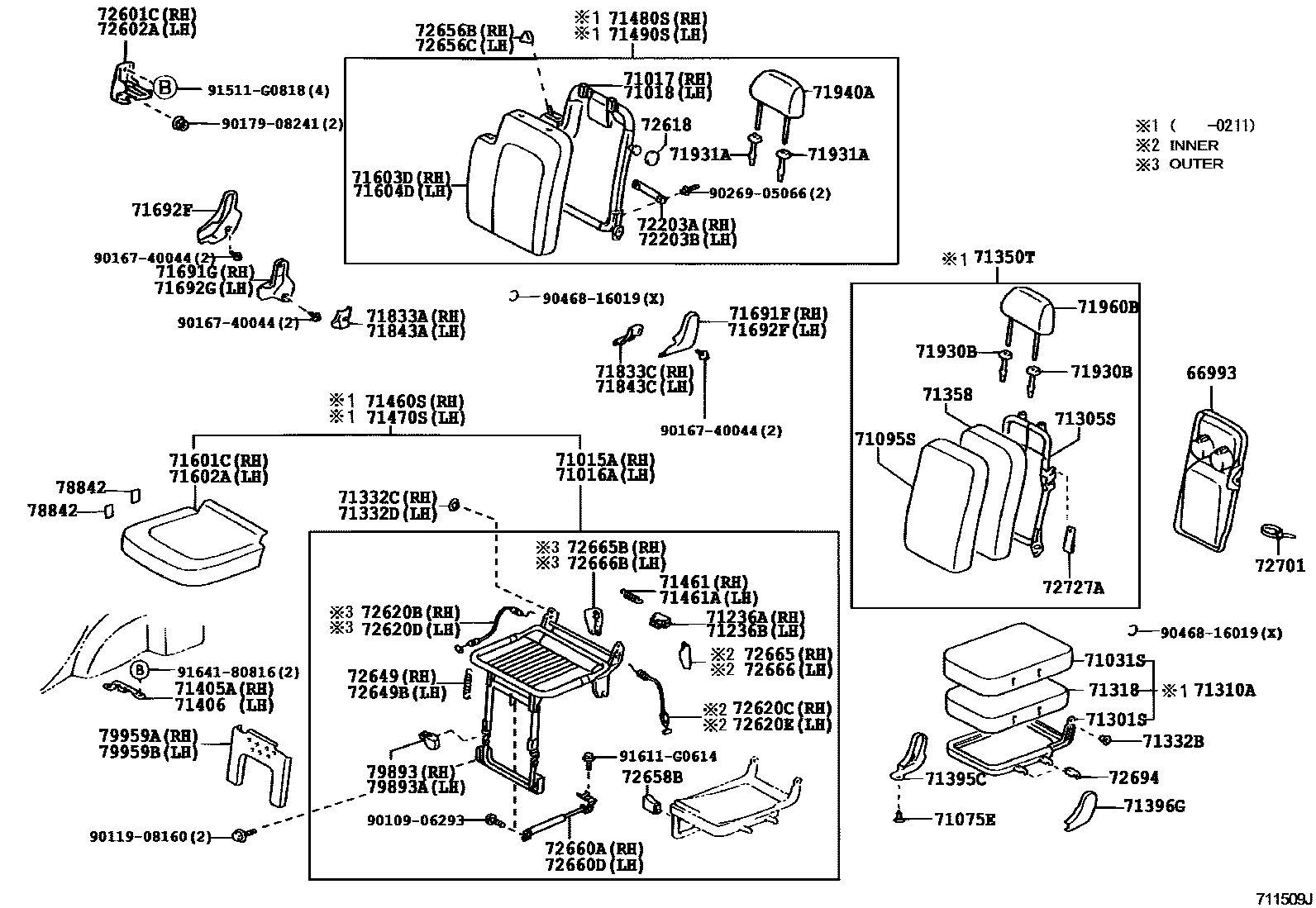

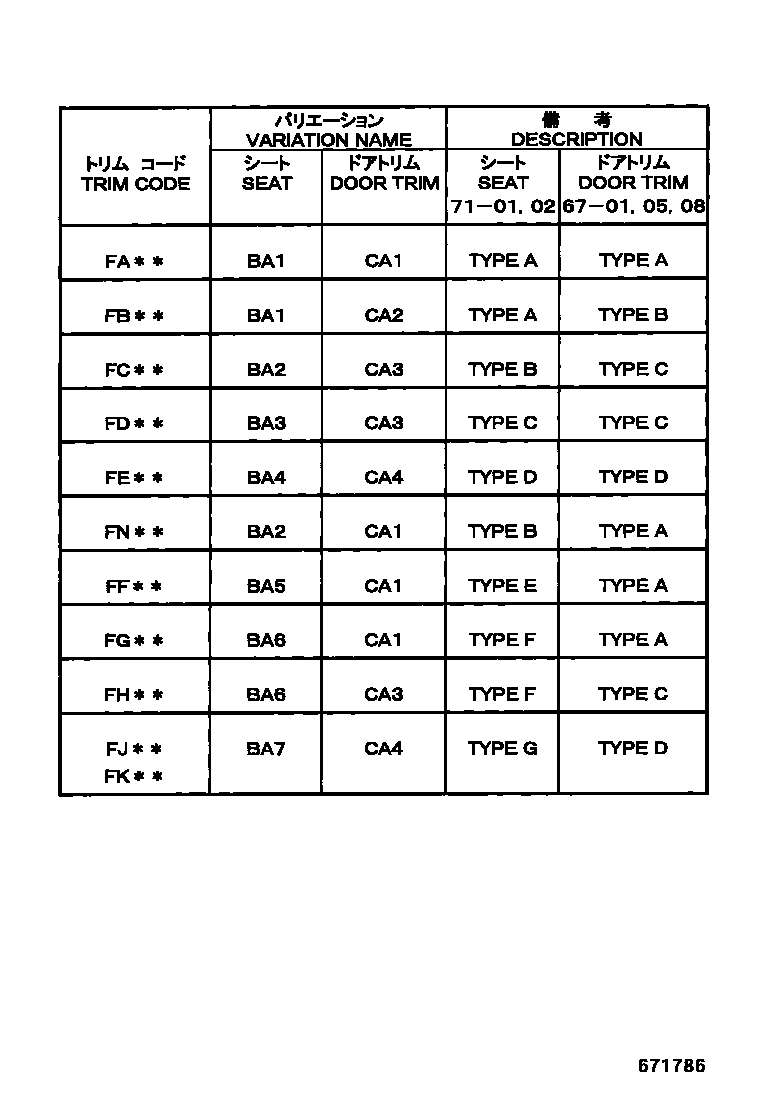

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-52080 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-52010 |
| 71017 | Right rear seat back frame sub-assembly | 71017-52140 · 71017-52420 |
| 71018 | Rear left seat back frame sub-assembly | 71018-52080 · 71018-52250 |
| 71236A | Rear seat cushion spring clip | 71236-52010 |
| 71236B | Rear seat cushion spring clip | 71236-52010 |
| 71301S | Center seat cushion frame sub-assembly | 71031-52030 |
| 71305S | Center seat back frame sub-assembly | 71305-52030 |
| 71318 | Center seat cushion cushion | 71316-52020 |
| 71332B | Rear seat backrest hinge spacer | 71332-52030 |
| 71332C | Rear seat backrest hinge spacer | 71332-52010 |
| 71332D | Rear seat backrest hinge spacer | 71332-52010 · 71332-52020 |
| 71358 | Center seat back cushion | 71365-52010 · 71365-52020 |
| 71405A | Rear right seat lock sub-assembly | 71405-52010 |
| 71406 | Rear left seat lock sub-assembly | 71406-52010 |
| 71461 | Rear seat cushion spring | 71461-52010 |
| 71461A | Rear No. 1 seat cushion spring | 71461-52010 |
| 72601C | No. 2 seat back lock sub-assembly on the right side of the rear row | 72601-52060 |
| 72602A | Rear left seat back lock sub-assembly | 72602-52020 |
| 72618 | Rear seat back lock protective cover | 72618-52010 |
| 72620B | Rear No. 1 seat lock cable assembly | 72620-52010 |
| 72620C | Rear No. 1 seat lock cable assembly | 72620-52020 |
| 72620D | Rear No. 1 seat lock cable assembly | 72620-52010 |
| 72620E | Rear No. 1 seat lock cable assembly | 72620-52020 |
| 72649 | Rear seat cushion support spring | 72649-52010 |
| 72649B | Rear seat cushion support spring | 72649-52010 |
| 72658B | Rear seat lock handle knob | 72658-52010 |
| 72660A | Rear seat cushion bracket assembly | 72660-52010 |
| 72660D | Rear seat cushion bracket assembly | 72660-52020 |
| 72665 | Right rear seat back lock cover | 72665-52010 |
| 72665B | Rear seat back lock cover | 72665-52020 |
| 72666 | Rear left seat back lock cover | 72666-52010 |
| 72666B | Rear left seat locker cover | 72666-52020 |
| 72701 | Rear seat backrest stop bracket sub-assembly | 72687-52010 |
| 79893 | Folding seat leg cushion | 79893-52010 |
| 79893A | Folding seat leg cushion | 79893-52010 |
