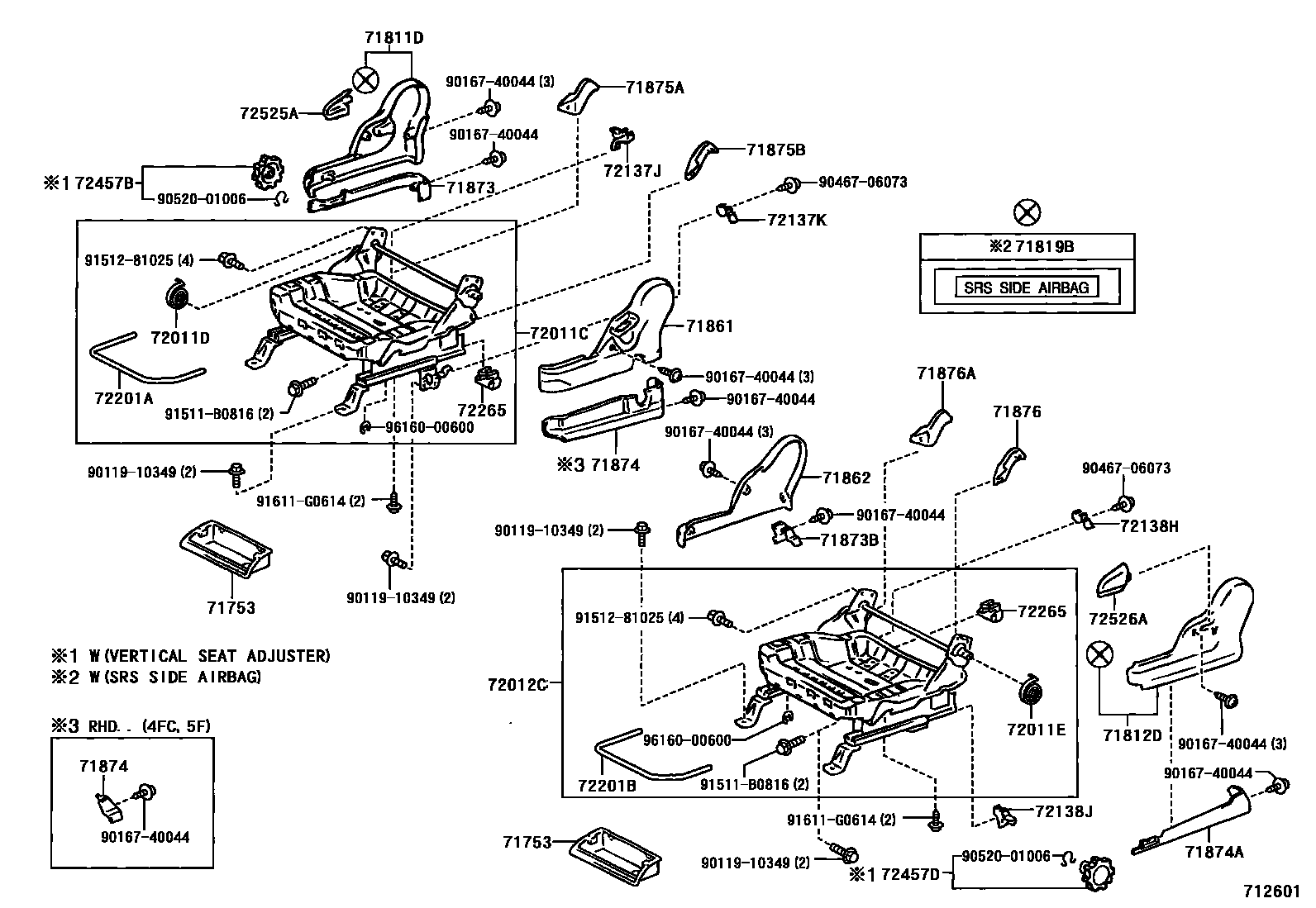

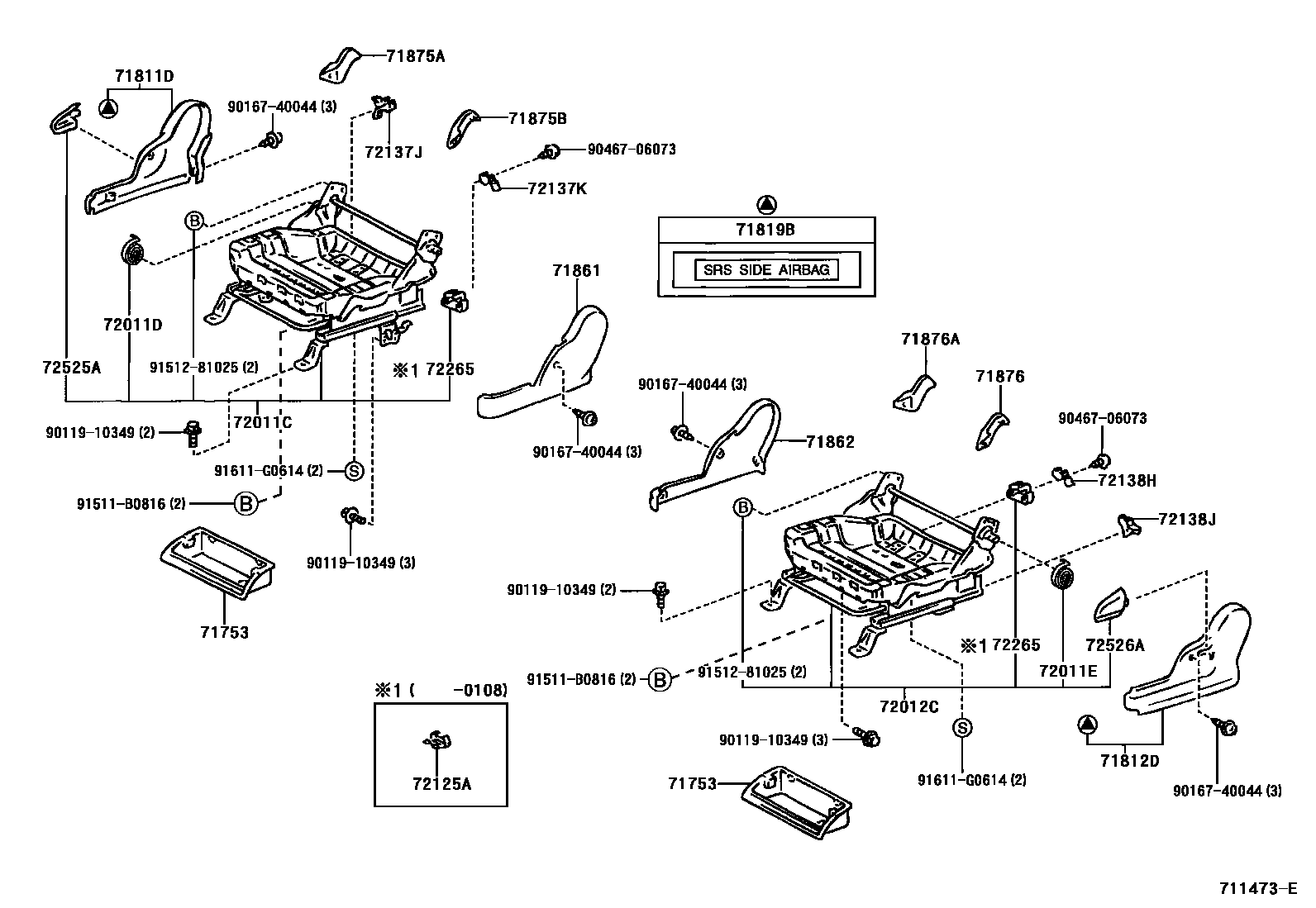

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101
Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

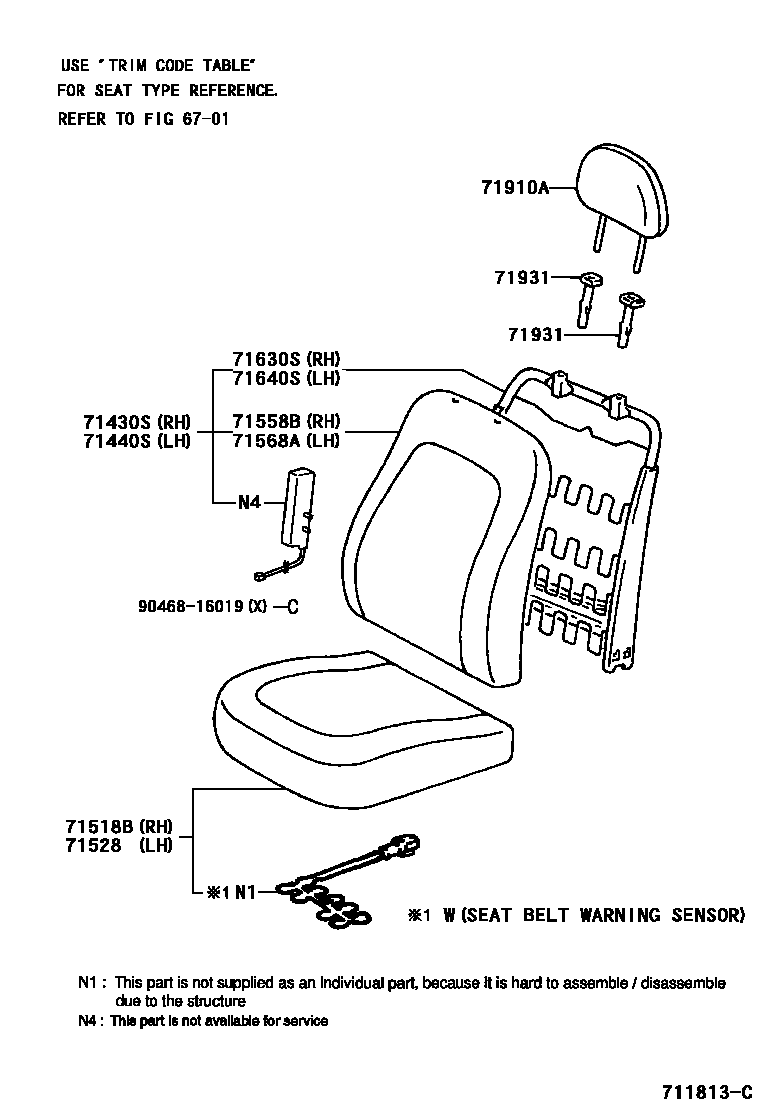

| 71630S | Front right seat back spring assembly (for split seats) | 71630-52040 · 71630-52050 · 71630-52150 · 71630-52160 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-52040 · 71630-52050 · 71630-52150 · 71630-52160 |
| 71753 | Front seat bottom bracket | 71753-52020 |
| 72011C | Front right seat adjuster sub-assembly | 72010-52170 · 72010-52171 · 72010-52190 · 72010-52191 · 72010-52240 · 72010-52241 · 72010-52250 · 72010-52251 · 72010-52571 |
| 72011D | Right tensioning spring (for front seat outer adjuster) | 72637-52020 |
| 72011E | Left tensioning spring (for front seat outer adjusters) | 72637-52020 |
| 72012C | Front left seat adjuster sub-assembly | 72020-52160 · 72020-52161 · 72020-52170 · 72020-52171 · 72020-52200 · 72020-52201 · 72020-52210 · 72020-52211 · 72020-52401 |
| 72125A | Rear seat upper slide rail cover | 72125-28030 |
| 72137J | Front right seat outer slide rail rear cover | 72137-52040 |
| 72137K | Front right seat inner slide rail rear cover | 72157-52050 · 72157-52060 |
| 72138H | Front left seat inner slide rail rear cover | 72158-52030 · 72158-52040 |
| 72138J | Front left seat outer slide rail rear cover | 72138-52030 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-52010 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-52010 |
| 72265 | Right seat rail upper rail cover | 72265-44070 · 72265-63020 |
