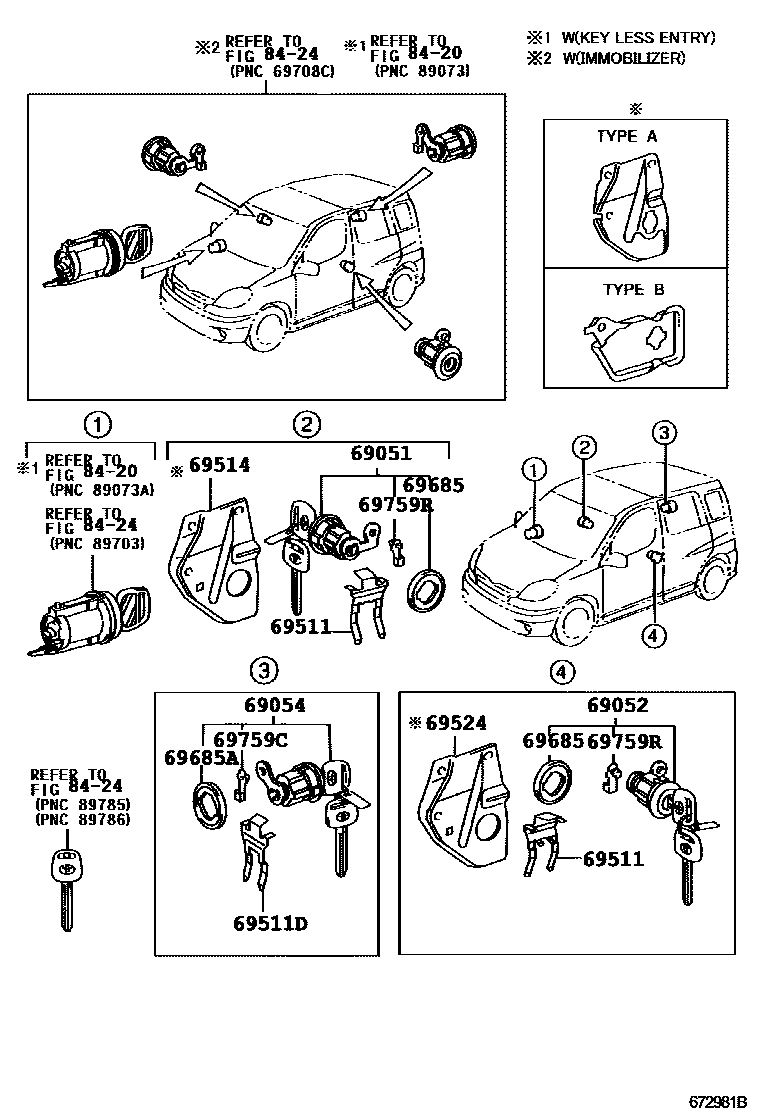

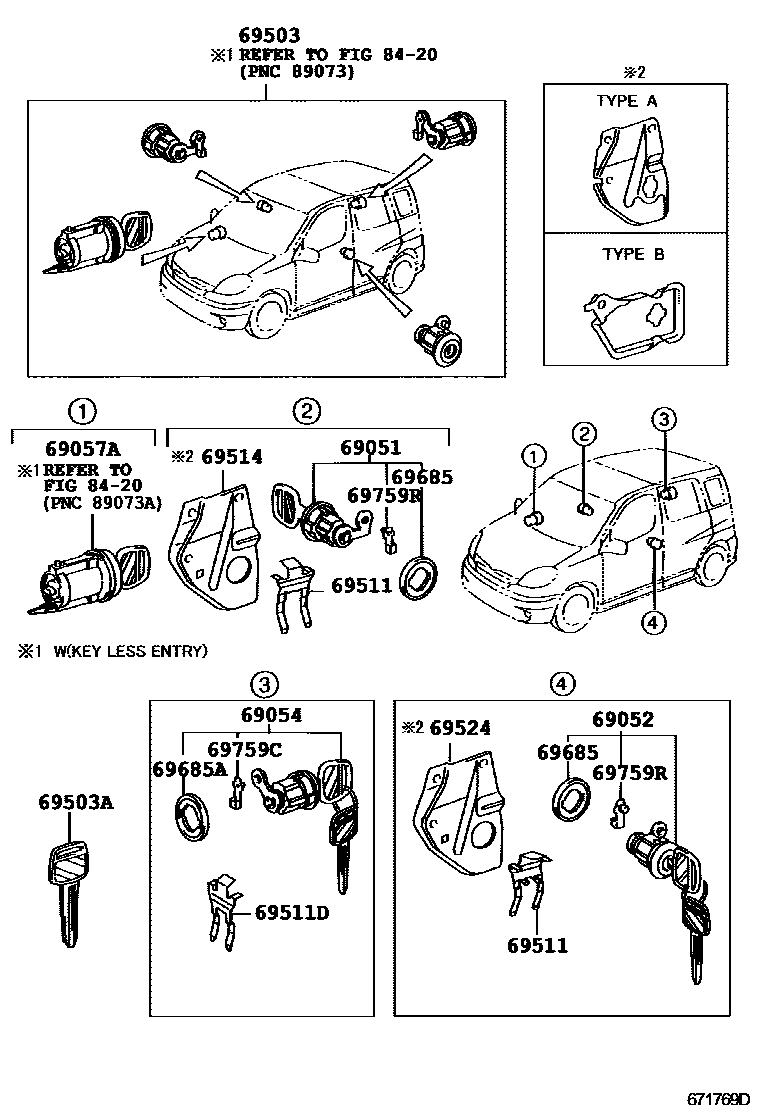

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-52090 · 69051-52100 · 69051-52140 · 69051-52260 · 69051-52270 |
| 69052 | Left door lock cylinder and key assembly | 69052-52090 · 69052-52100 · 69052-52220 |
| 69054 | Rear door lock cylinder and key assembly | 69055-52140 · 69055-52150 · 69055-52310 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-52030 |
| 69503 | Door lock cylinder components | 69005-52090 |
| 69503A | external tooth key | 90999-00149 |
| 69511 | Front door lock cylinder fixing parts | 69511-16030 · 69511-52010 |
| 69511D | Rear door lock cylinder fixing parts | 69511-16030 · 69511-52010 |
| 69514 | Right front door lock cylinder bracket | 69514-52020 · 69514-52021 · 69514-52022 · 69514-52030 |
| 69524 | Left front door lock cylinder bracket | 69524-52010 · 69524-52011 · 69524-52020 |
| 69685 | Lock cylinder liner | 69563-10020 |
| 69685A | Lock cylinder liner | 69563-10020 |
| 69759C | Back door lock cylinder buckle | 69759-24080 |
| 69759R | Front door lock cylinder buckle | 69759-32090 · 69759-32100 |
