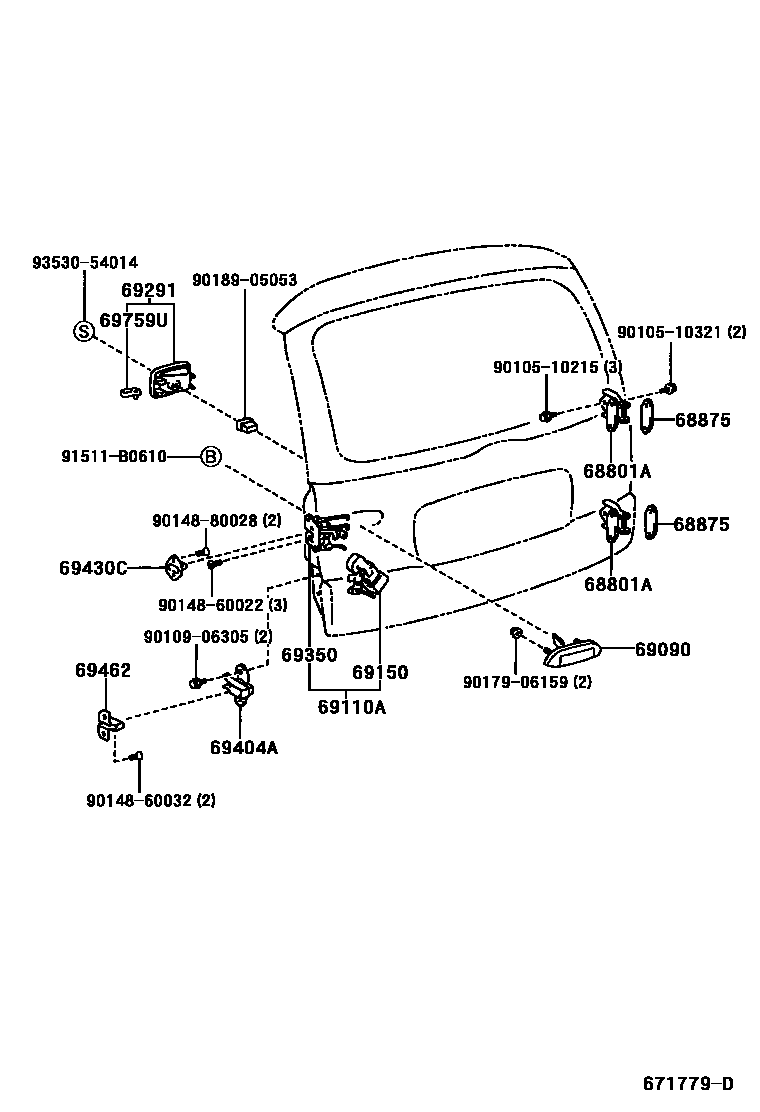

Toyota YARIS 背门锁和背门把手 — Figure 6709
Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68801A | Back door upper hinge sub-assembly | 68801-52030 |
| 68875 | Back door upper hinge spacer | 68875-52010 |
| 69090 | Rear door outer handle assembly | 69090-52020 |
| 69110A | Rear door lock assembly with motor | 69110-52040 · 69110-52050 · 69110-52051 · 69110-52110 · 69110-52120 |
| 69150 | Rear door lock actuator assembly | 69150-52020 · 69150-52030 |
| 69350 | Rear door lock assembly | 69350-52030 · 69350-52050 · 69350-52060 · 69350-52200 · 69350-52210 · 69350-52220 |
| 69404A | Recessed stop block sub-assembly on the left side of the back door | 69403-46010 |
| 69430C | Back door lock assembly | 69410-52010 |
| 69462 | Rear door left side protruding stopper | 69461-46010 |
| 69759U | Rear door lock control link buckle | 69759-24070 |
