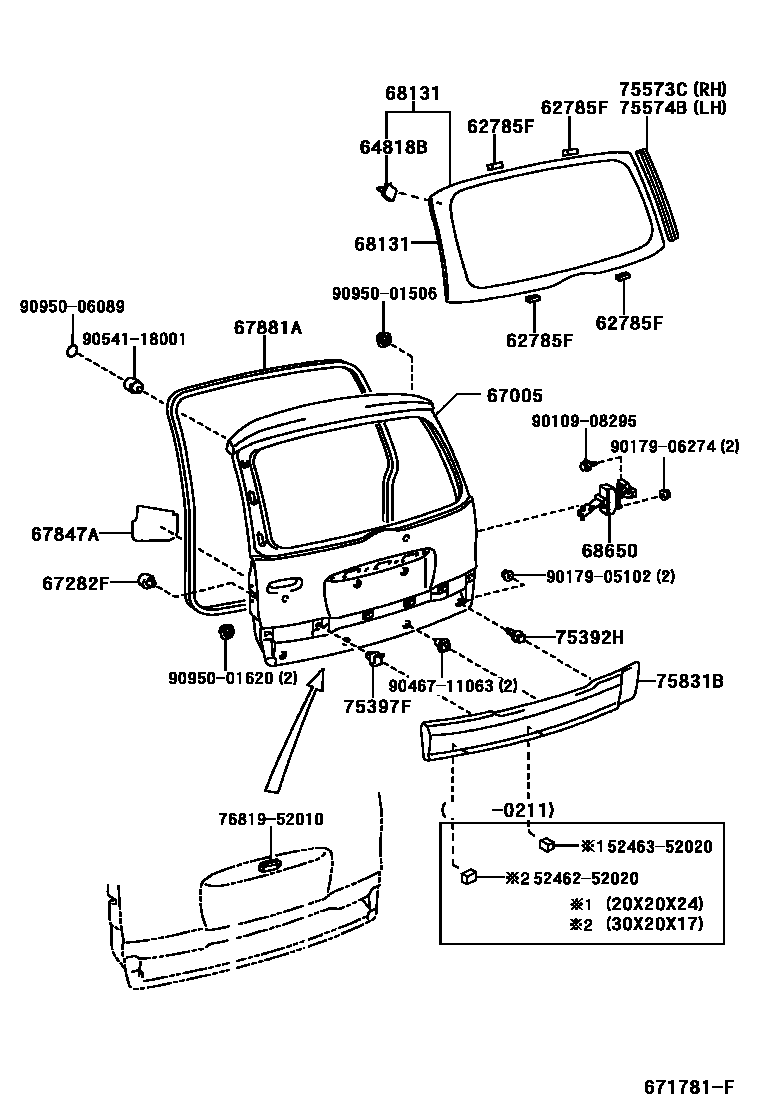

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47256B | lid seal | 47256-52020 |
| 62785F | Back door glass spacer | 62785-16030 |
| 64818B | No. 1 back door glass spacer | 64818-52010 · 64819-52010 |
| 67005 | Rear door panel sub-assembly | 67005-52130 · 67005-52140 · 67005-52150 · 67005-52160 · 67005-52170 · 67005-52180 |
| 67282F | Back door lower left block | 67282-46010 |
| 67751B | Fixings (for rear door trim panel) | 47256-52010 |
| 67847A | Rear door access hole cover | 67847-52010 |
| 67881A | Back door seal | 67881-52020 · 67881-52021 |
| 68131 | back door glass | 68131-52050 · 68131-52051 · 68131-52060 · 68131-52061 · 68131-52101 |
| 68650 | Back door opening limiter assembly | 68650-52010 |
| 75392H | External protective strip fixings | 75392-33020 |
| 75397F | No. 3 outer protective strip clip | 75397-52010 · 75397-52020 |
| 75573C | Protective strip for rear window | 75573-52100 |
| 75574B | Rear window left outer protective strip | 75573-52100 |
| 75831B | Rear door decorative panel | 75831-52010 · 75831-52030 |
