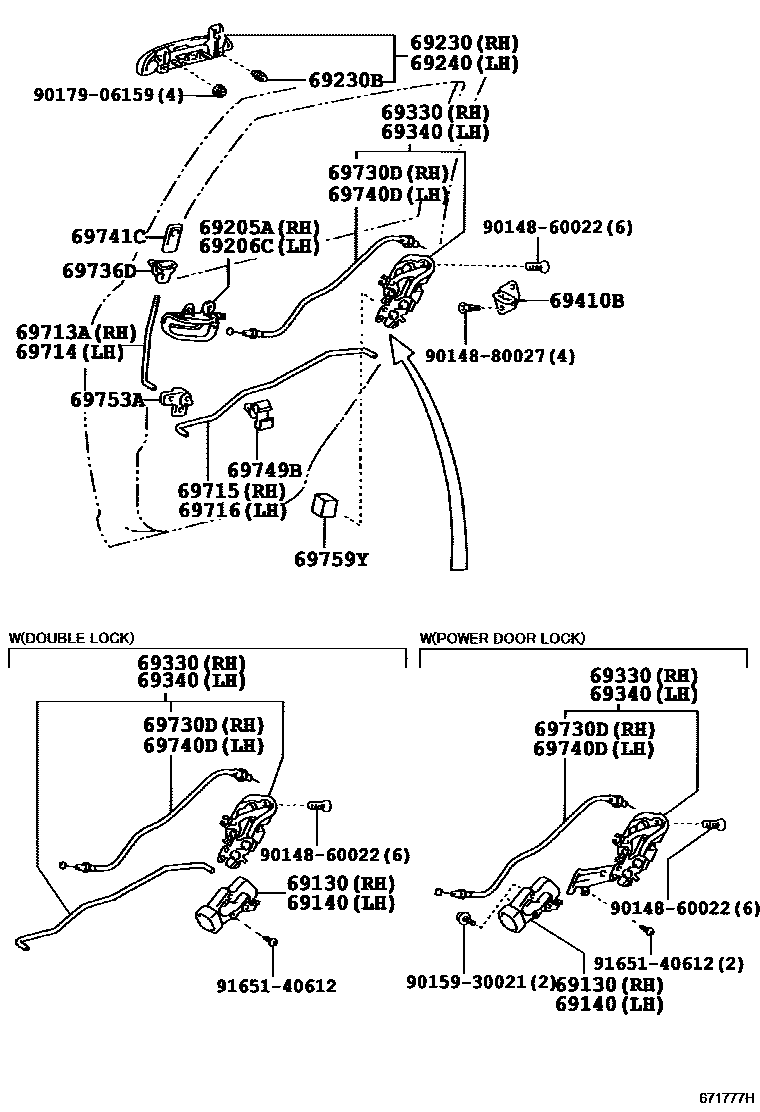

Toyota YARIS 后门锁和后门把手 — Figure 6706
Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69130 | Right rear door lock actuator assembly | 69130-52040 · 69130-52050 |
| 69140 | Left rear door lock actuator assembly | 69140-52040 · 69140-52050 |
| 69230 | Right rear door outer handle assembly | 69230-52030 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-04028 |
| 69240 | Left rear door outer handle assembly | 69240-52030 |
| 69330 | Right rear door door lock assembly | 69330-52020 · 69330-52060 · 69330-52070 · 69330-52160 · 69330-52170 · 69330-52180 |
| 69340 | Left rear door lock assembly | 69340-52020 · 69340-52060 · 69340-52070 · 69340-52170 · 69340-52180 · 69340-52190 |
| 69410B | Rear door lock plate assembly | 69410-47010 |
| 69713A | Right rear door lock remote control lever | 69713-52010 |
| 69714 | Left rear door lock remote control lever | 69713-52010 |
| 69715 | Right rear door No. 2 lock control link | 69715-52020 |
| 69716 | Left rear door No. 2 lock control link | 69716-52020 |
| 69730D | Right rear door lock remote control cable assembly | 69710-52030 |
| 69736D | Rear door locking link guide block | 69736-12130 |
| 69740D | Left rear door lock remote control cable assembly | 69710-52030 |
| 69749B | Rear door lock link clamp | 69749-52010 |
| 69753A | Door lock control right angle lever | 69753-10010 |
| 69759Y | Rear door lock link silencer | 69759-52010 |
