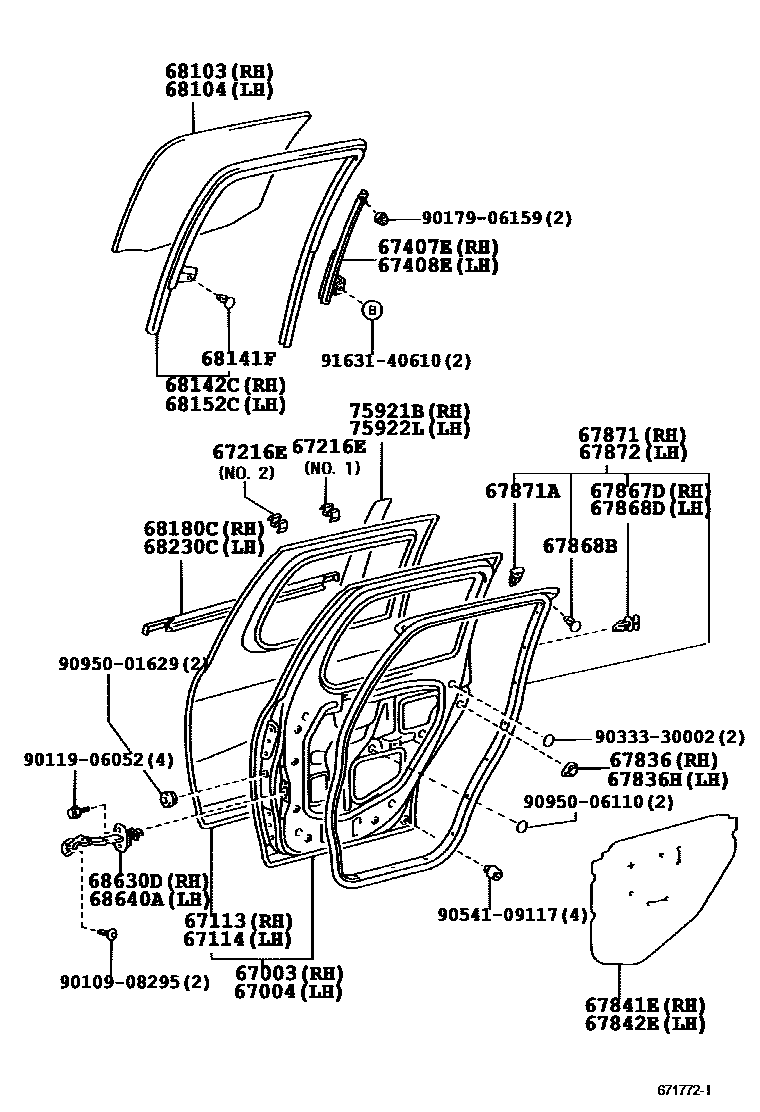

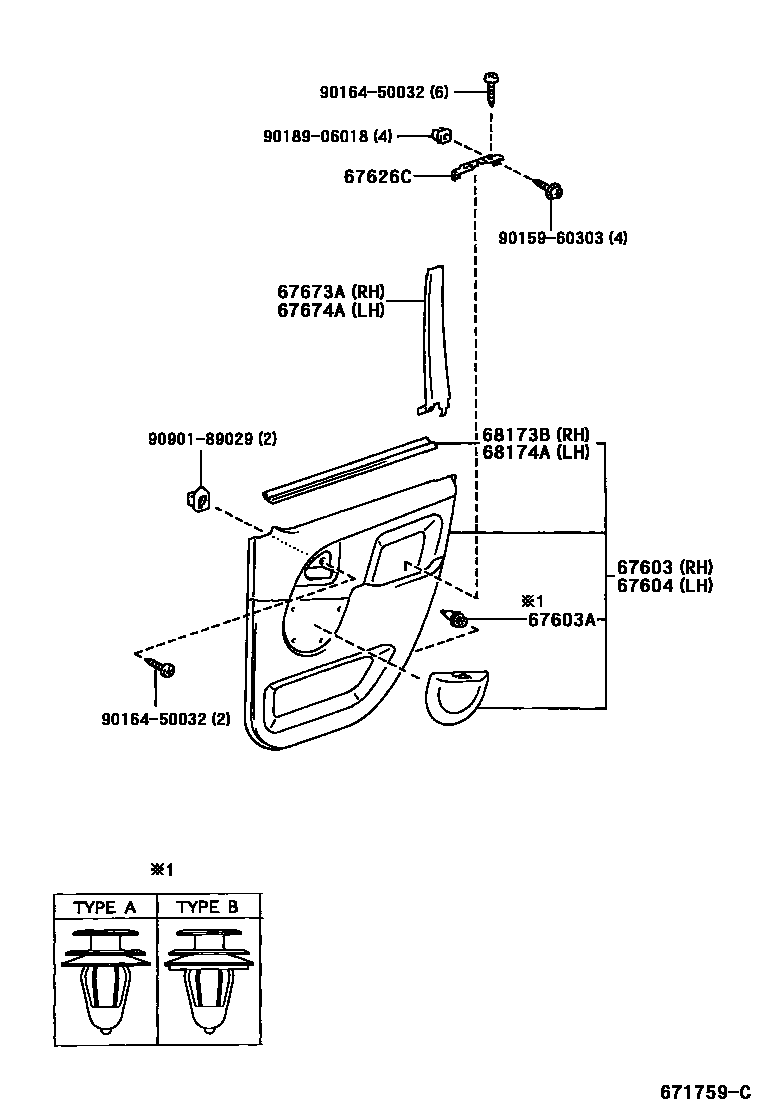

Toyota YARIS 后门板和后门玻璃 — Figure 6705
Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-52030 · 67003-52040 |
| 67004 | Left rear door panel sub-assembly | 67004-52030 · 67004-52040 |
| 67113 | Right rear door outer panel | 67113-52020 · 67113-52030 |
| 67114 | Left rear door outer panel | 67114-52020 · 67114-52030 |
| 67216E | No. 2 rear door glass upper stop | 67215-52010 · 67217-52010 · 67217-52011 · 67217-52012 |
| 67407E | Right rear door window divider sub-assembly | 67407-52020 |
| 67408E | Left rear door window divider sub-assembly | 67408-52020 |
| 67603A | Fixings (for rear door trim) | 67771-12050 · 67771-28020 |
| 67626C | Rear door decorative panel bracket No. 2 | 67626-52010 |
| 67673A | Right rear door frame decorative strip | 67673-52010 |
| 67674A | Left rear door frame decorative strip | 67674-52010 |
| 67836 | Right rear door lock child restraint cover | 67836-52010 |
| 67836H | Left rear door lock child restraint cover | 67846-52010 |
| 67841E | Right rear door access hole cover | 67841-52020 |
| 67842E | Left rear door access hole cover | 67841-52020 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868B | Door glass seal strip clip (for rear door) | 90467-06084 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-52020 |
| 67871A | Fixings (for rear door sealing strip) | 67867-52010 · 67867-52040 |
| 67872 | Left rear door sealing strip | 67872-52020 |
| 68103 | Right rear door glass sub-assembly | 68130-52030 · 68130-52110 · 68130-52120 |
| 68104 | Left rear door glass sub-assembly | 68140-52030 · 68140-52110 · 68140-52120 |
| 68141F | Rear door glass lift slot clip | 90467-06084 |
| 68142C | Right rear door glass lift slot | 68142-52020 · 68142-52021 · 68142-52022 |
| 68152C | Left rear door glass lift slot | 68152-52020 · 68152-52021 · 68152-52022 |
| 68173B | Right rear door glass inner sealing strip | 68173-52030 |
| 68174A | Left rear door glass inner sealing strip | 68174-52020 |
| 68180C | Right rear door glass outer sealing strip assembly | 68180-52020 |
| 68230C | Left rear door glass outer sealing strip assembly | 68230-52020 |
| 68630D | Right rear door opening limiter assembly | 68630-52020 |
| 68640A | Left rear door opening limiter assembly | 68640-52020 |
| 75921B | No. 1 right side light-shielding film | 75921-52010 |
| 75922L | No. 1 left shading film | 75922-52010 |
