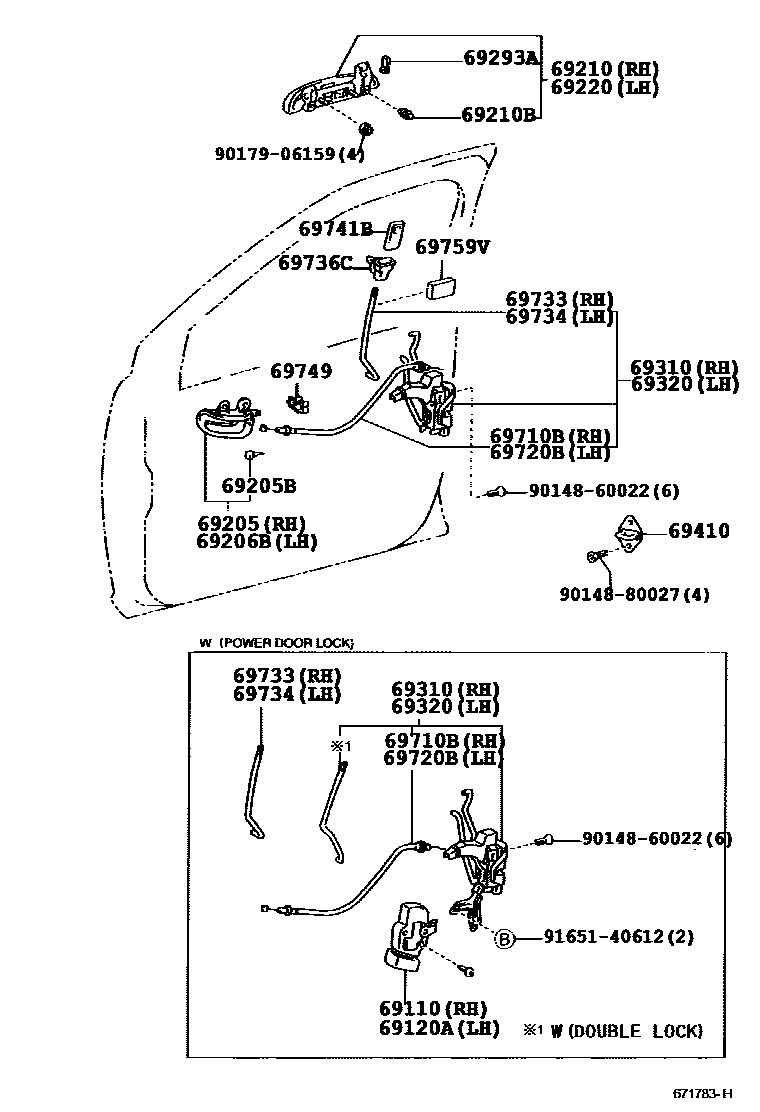

Toyota YARIS 前门锁和车门把手 — Figure 6703
Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69110 | Right front door lock actuator assembly | 69110-52010 · 69110-52020 · 69110-52070 |
| 69120A | Left front door lock actuator assembly | 69120-52010 · 69120-52030 · 69120-52050 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69210-52030 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04028 |
| 69220 | Left front door outer handle assembly | 69220-52030 |
| 69293A | Front door outer handle buckle | 69293-10010 · 69293-10020 |
| 69310 | Right front door lock assembly | 69310-52020 · 69310-52150 · 69310-52160 · 69310-52260 · 69310-52270 · 69310-52280 |
| 69320 | Left front door lock assembly | 69320-52020 · 69320-52180 · 69320-52190 · 69320-52230 · 69320-52240 · 69320-52260 |
| 69410 | Front door lock plate assembly | 69410-47010 |
| 69710B | Right front door lock remote control cable assembly | 69710-52030 |
| 69720B | Left front door lock remote control cable assembly | 69710-52030 |
| 69733 | Right front door inner locking link | 69733-52030 |
| 69734 | Left front door inner locking link | 69734-52030 |
| 69736C | Front door locking link guide block | 69736-12130 |
| 69749 | Front door lock link clip | 69749-52010 |
| 69759V | Front door lock link silencer | 69759-12060 · 69759-12110 |
