Toyota YARIS 前门板和前门玻璃 — Figure 6701

Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 3 images and 35 PNC and OE references.

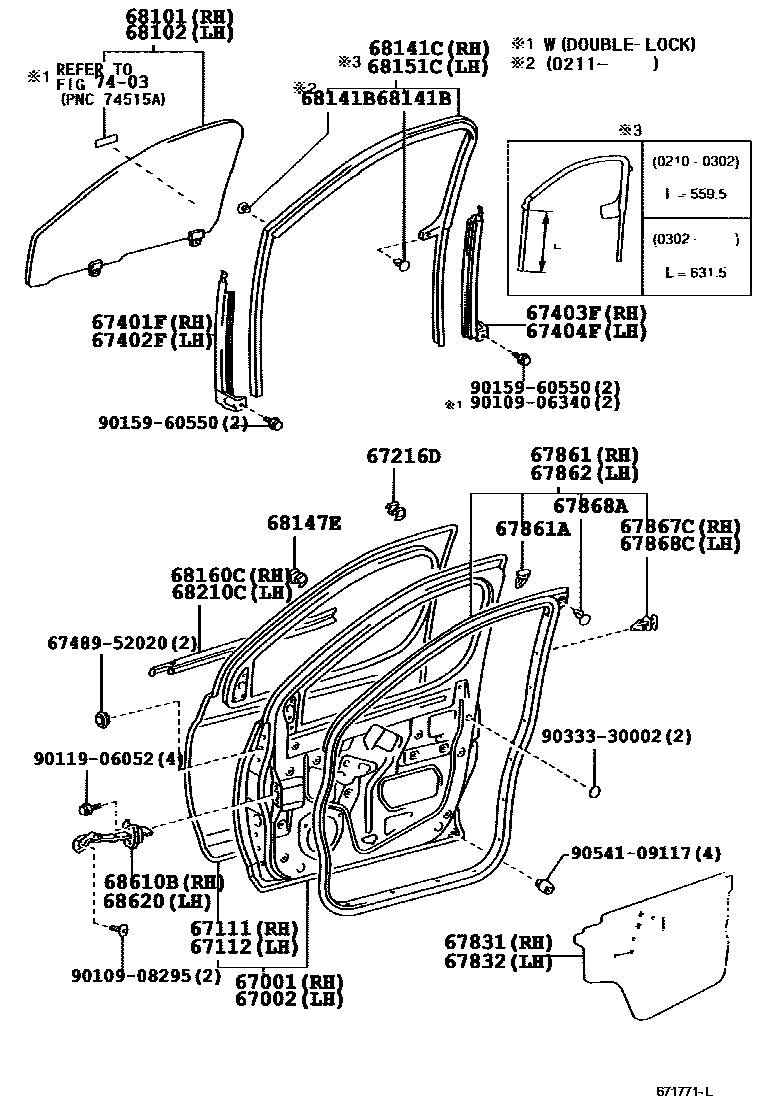

Toyota YARIS 前门板和前门玻璃 EPC diagram — 671771L
前门板和前门玻璃 — 671771L (199908 – 999999)

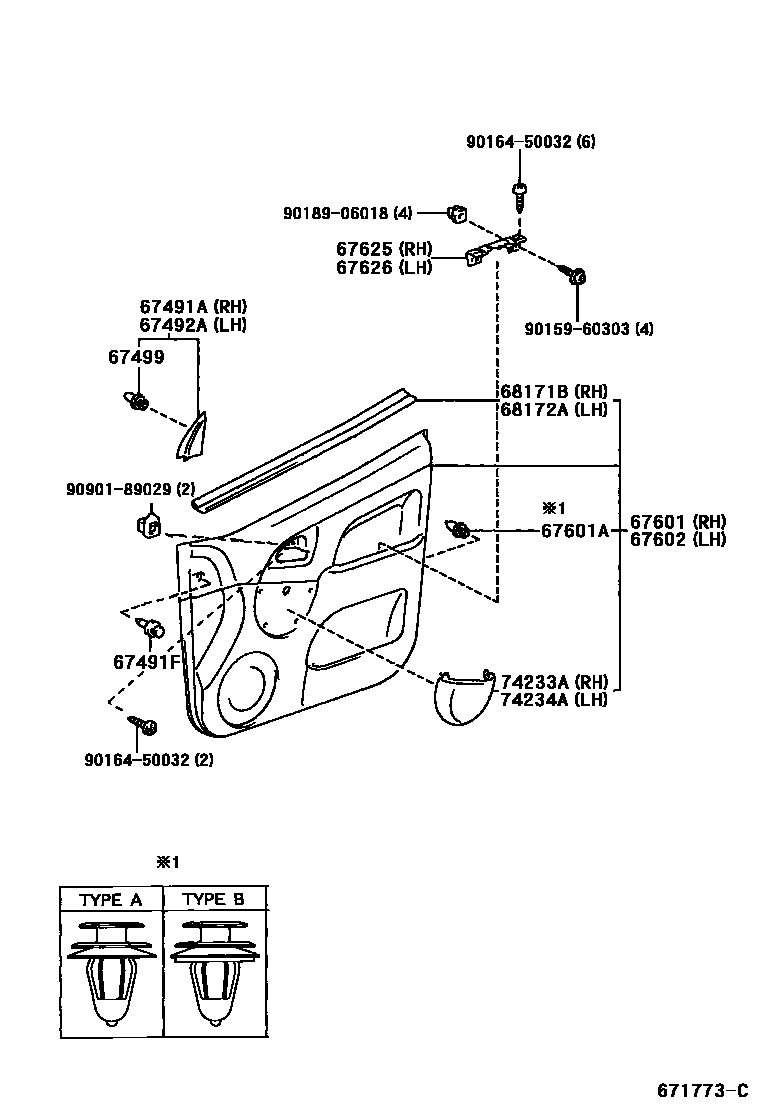

Toyota YARIS 前门板和前门玻璃 EPC diagram — 671773C
前门板和前门玻璃 — 671773C (199908 – 999999)

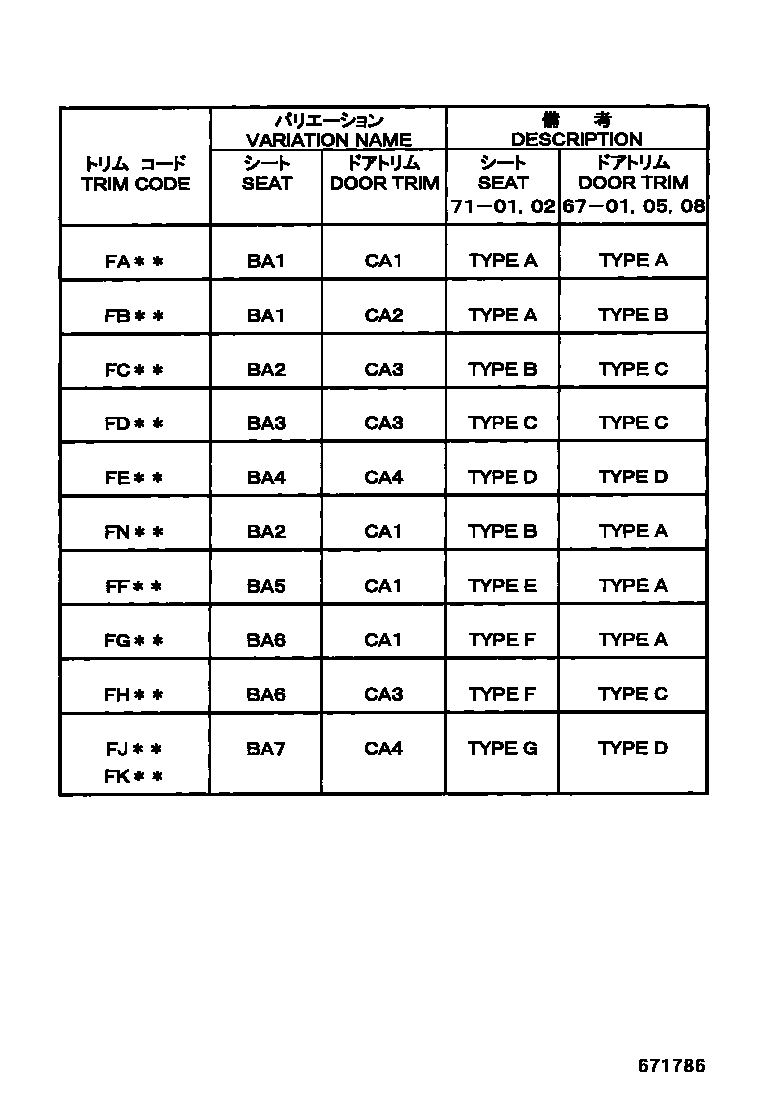

Toyota YARIS 前门板和前门玻璃 EPC diagram — 671786
前门板和前门玻璃 — 671786 (199908 – 200211)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-52030
67002Left front door panel sub-assembly67002-52030
67111Outer right front door panel67111-52030
67112Outer left front door panel67112-52030
67216DNo. 2 front door glass upper stop67216-52020 · 67216-52021 · 67216-52022
67401FRight front door front lower door frame sub-assembly67401-52030 · 67401-52031
67402FLeft front door front lower door frame sub-assembly67402-52030 · 67402-52031
67403FRight front door rear lower door frame sub-assembly67403-52020 · 67403-52040
67404FLeft front door rear lower door frame sub-assembly67404-52020 · 67404-52070
67491ARight front door lower door frame bracket decorative strip67491-52030
67492ALeft front door lower door frame bracket decorative strip67492-52030
67499Front door lower door frame bracket trim strip fixing67771-30070
67601AFixings (for front door trim)67771-12050 · 67771-28020
67625Right front door trim panel bracket67625-52020
67626Left front door trim panel bracket67625-52020
67831Right front door access hole cover67831-52050 · 67831-52130
67832Left front door access hole cover67831-52050 · 67832-52050
67861Right front door seal67861-52030
67861AFixing piece (for front door sealing strip)67867-52010 · 67867-52040
67862Left front door seal67862-52030
67867CRight front door seal strip fixing67867-12150
67868ADoor glass seal strip clip (for front door)90467-06084
67868CLeft front door seal strip fixing67867-12150
68101Right front door glass sub-assembly68110-52050 · 68110-52060 · 68110-52220
68102Left front door glass sub-assembly68120-52050 · 68120-52060 · 68120-52220
68141BDoor glass lift chute clip90467-06084
68141CRight front door glass lift channel68141-52030 · 68141-52031 · 68141-52032 · 68141-52033 · 68141-52034 · 68141-52035 · 68141-52036
68147EFront door glass upper stopper68147-52030 · 68147-52031 · 68147-52032
68151CLeft front door glass lift channel68151-52030 · 68151-52031 · 68151-52032 · 68151-52033 · 68151-52034 · 68151-52035 · 68151-52036
68160CRight front door glass outer sealing strip assembly68160-52030
68171BRight front door glass inner sealing strip68171-52050
68172ALeft front door glass inner sealing strip68172-52030
68210CLeft front door glass outer sealing strip assembly68210-52030
68610BRight front door opening limiter assembly68610-52010
68620Left front door opening limiter assembly68620-52010
