Toyota YARIS 底板和底板装饰罩 — Figure 6404

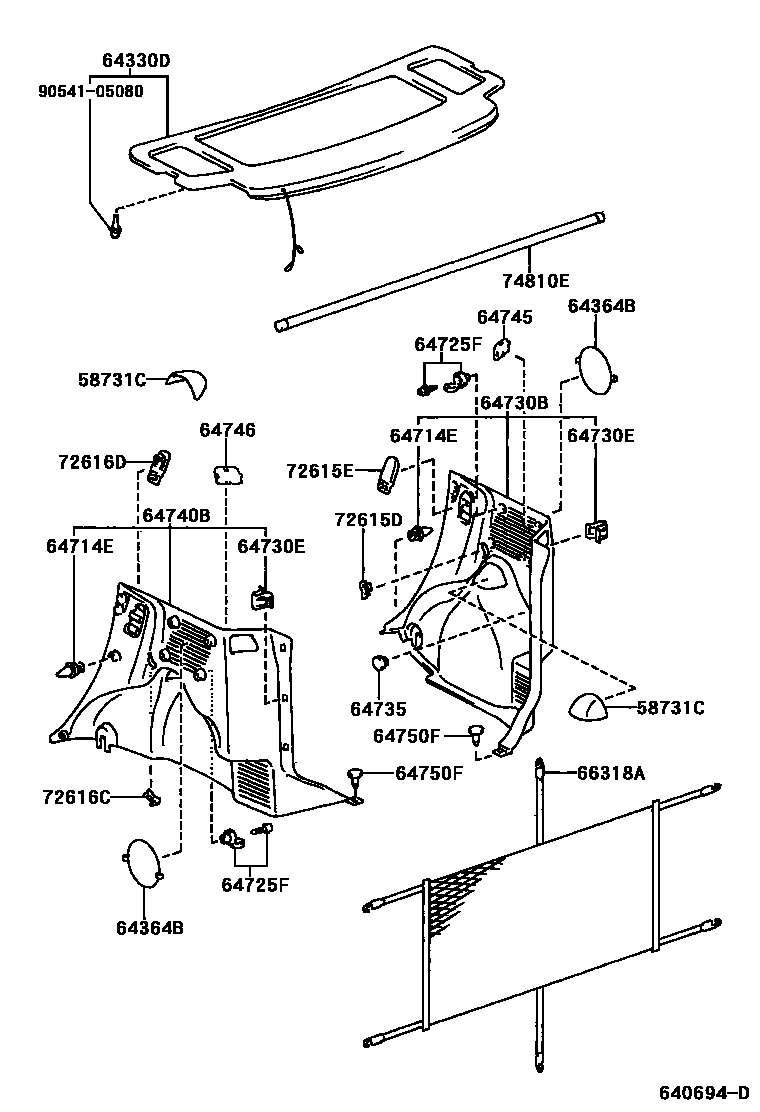

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64364B | No. 1 rear speaker grille cover | 64364-52010 |
| 64714E | Clip (for bottom panel side decorative cover) | 90467-10161 |
| 64730E | Clip (for bottom panel side decorative panel) | 90468-05084 |
