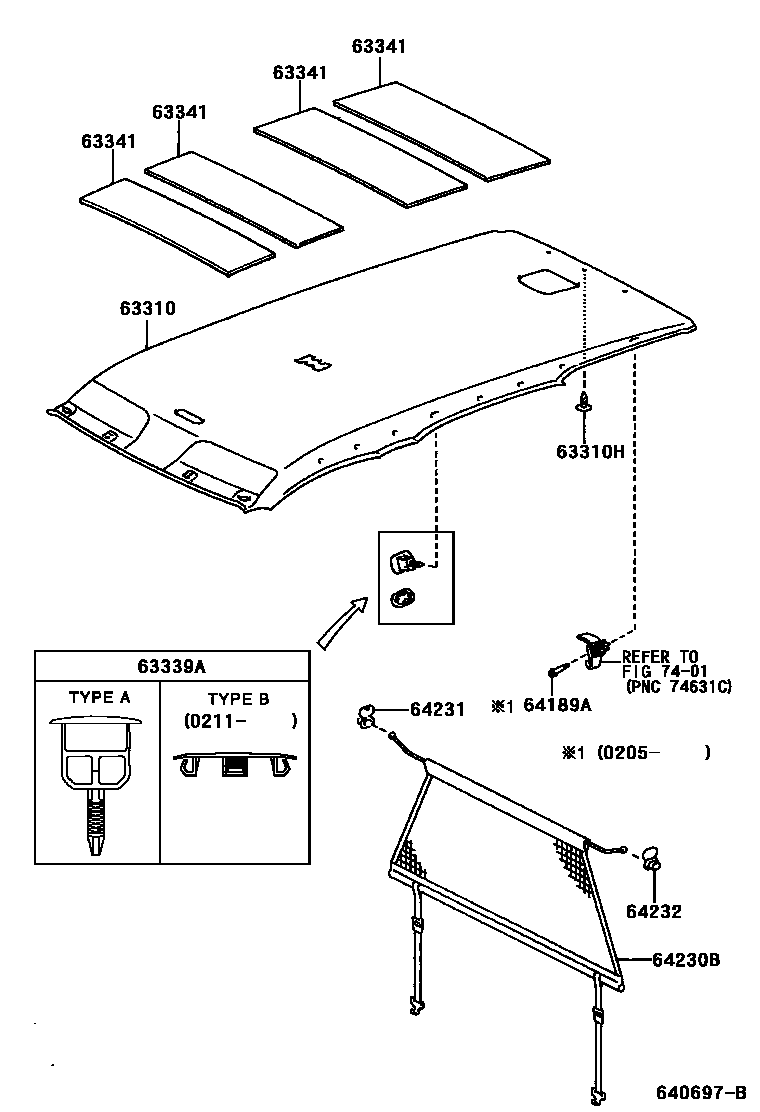

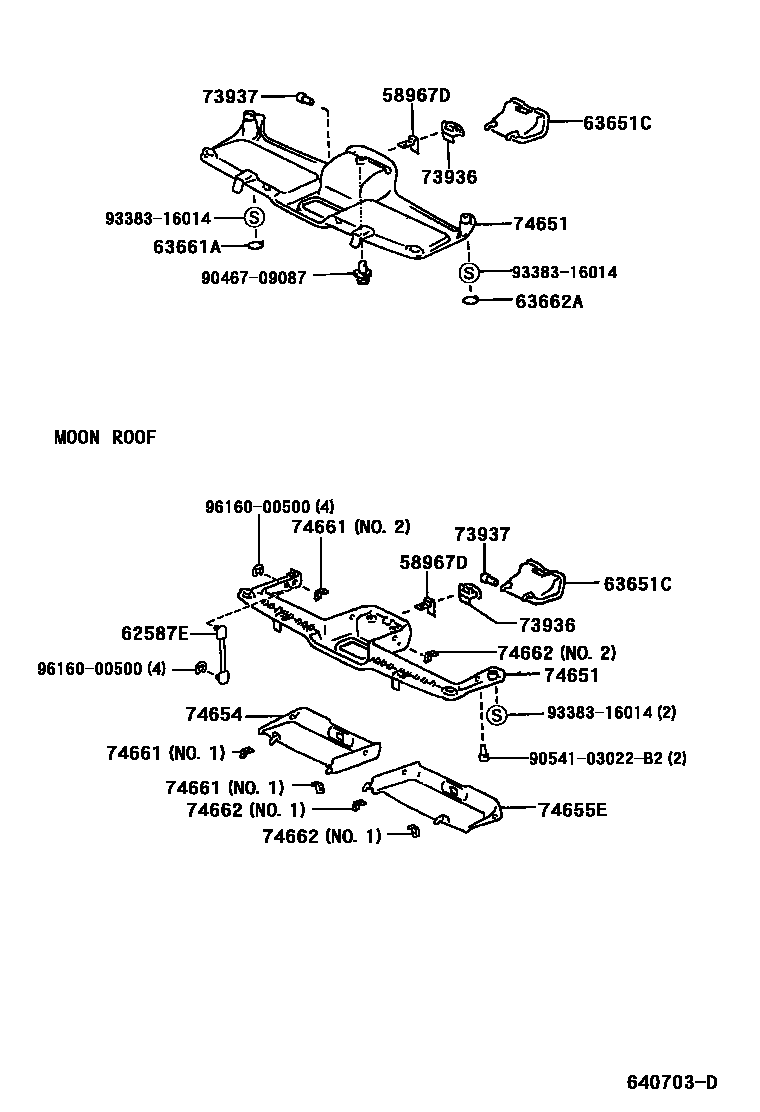

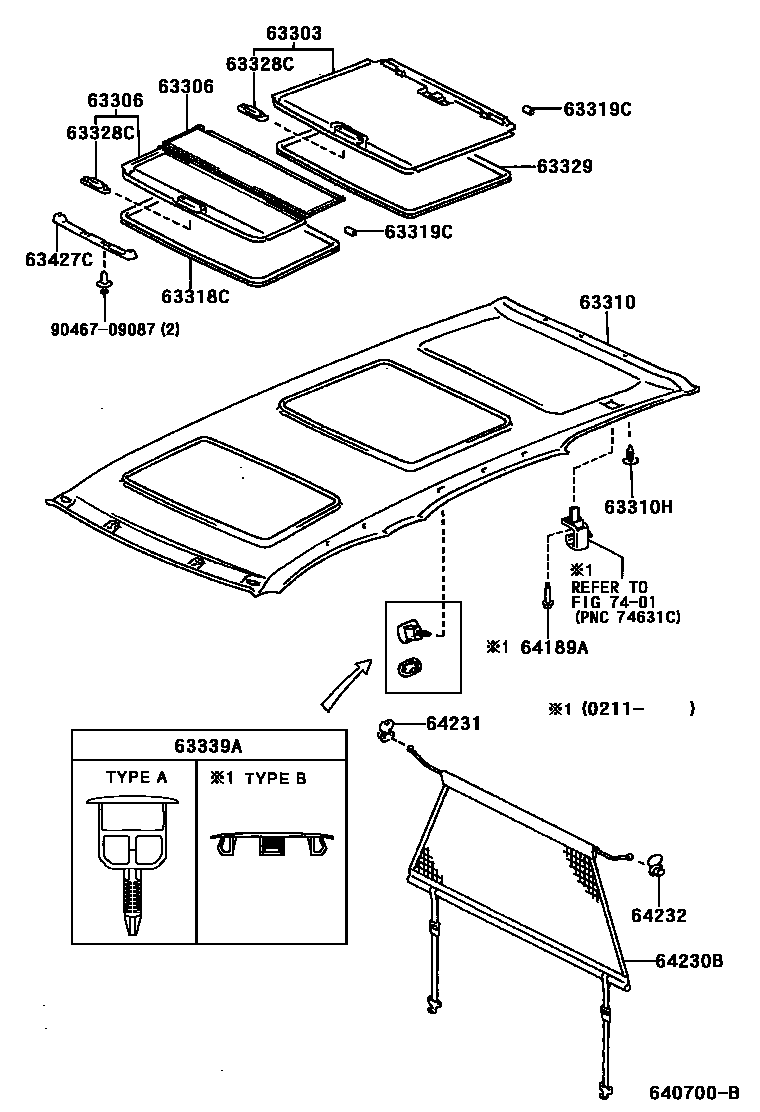

Toyota YARIS 车顶内衬和消声垫 — Figure 6402
Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58967D | Roof console cover limit spring | 58967-52010 · 58967-52020 |
| 63341 | No. 1 roof silencer mat | 63341-12160 · 63343-12050 |
| 63427C | Front interior luggage rack frame upper bracket | 63427-52010 |
| 64189A | Rear body mounting bolts | 64189-52040 · 91651-B0640 |
| 64230B | Car partition net assembly | 64230-52010 |
| 74661 | Shelf stay No. 1 | 74661-52010 · 74661-52020 |
| 74662 | Shelf stay No. 2 | 74662-52010 · 74662-52020 |
