Toyota YARIS 内饰板和车门防水胶条 — Figure 6401

Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 8 PNC and OE references.

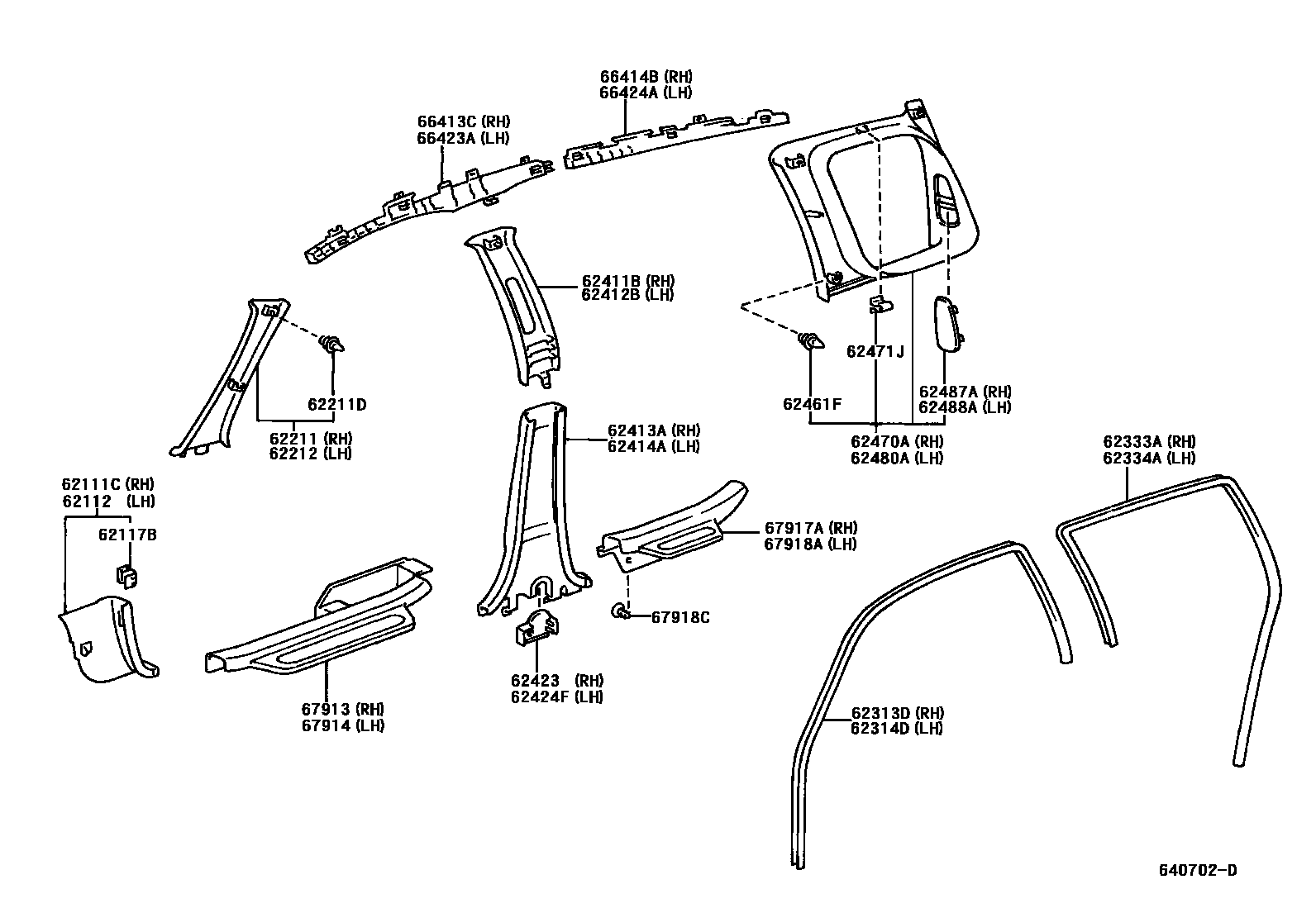

Toyota YARIS 内饰板和车门防水胶条 EPC diagram — 640702D
内饰板和车门防水胶条 — 640702D (199908 – 200509)

PNC and OE references

PNCPart nameOE numbers
62117BNo. 1 clip (for cowl side trim panel)90468-05112
62211DClip (for body front pillar decorative panel)90467-10188
62461FClip (for roof side panel trim)90467-10161
62471JClips (for roof side trim panels)90468-05084
66413CRight front longitudinal member spacer66413-52030
66414BRight rear longitudinal member spacer66414-52030
66423ALeft front longitudinal member spacer66423-52030
66424ALeft rear longitudinal member spacer66424-52030
