Toyota YARIS 天窗板和背窗玻璃 — Figure 6104

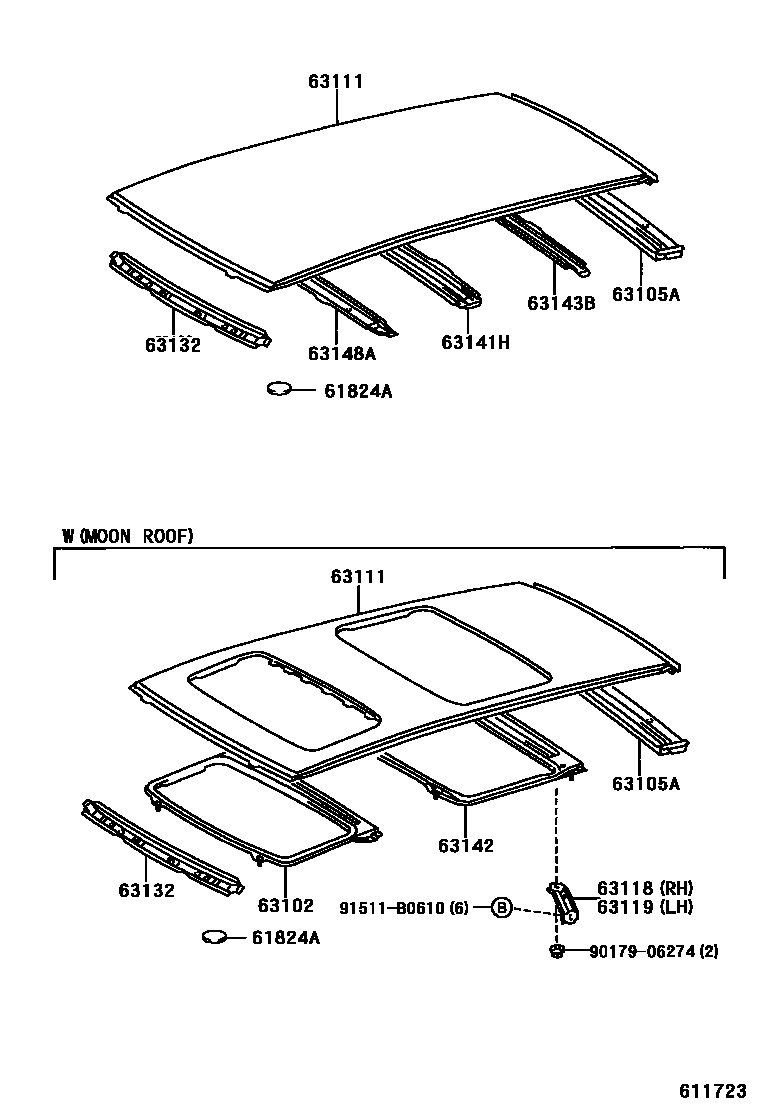

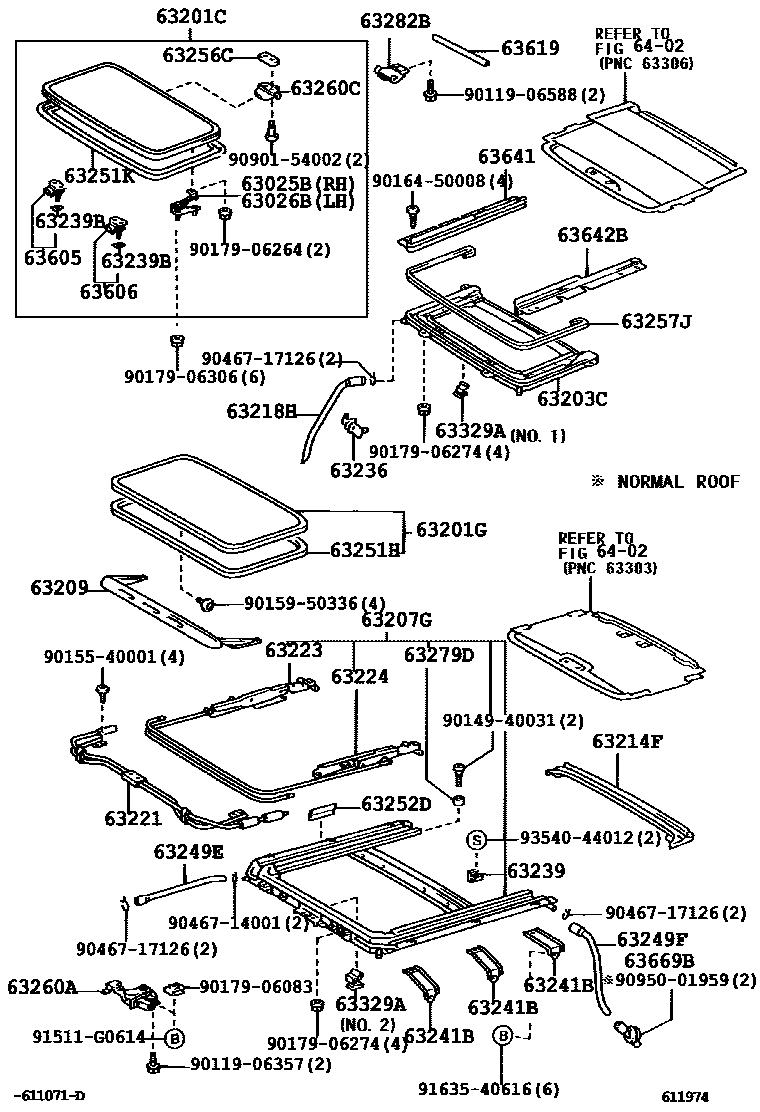

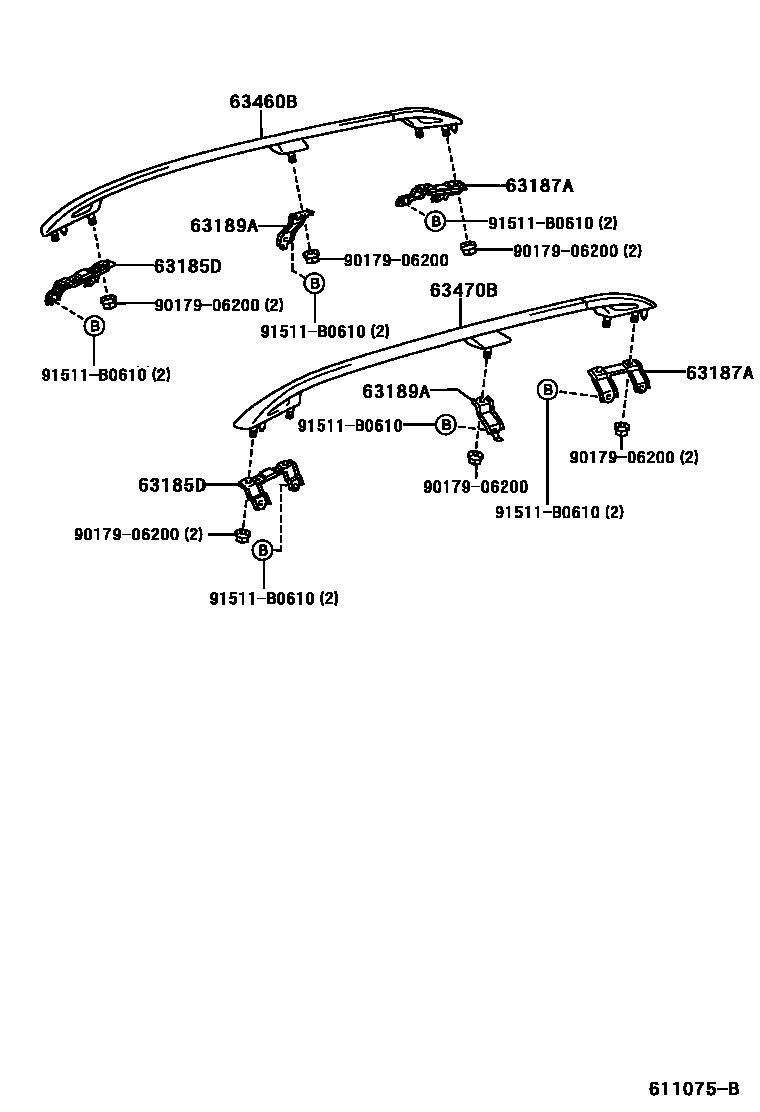

Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61824A | Noise Control Panel No. 1 | 61824-52010 |
| 63025B | Right tilting sunroof link sub-assembly | 63025-44020 |
| 63026B | Left tilting sunroof link sub-assembly | 63026-44020 |
| 63102 | Roof panel plus front strong piece sub-assembly | 63102-52010 |
| 63105A | Back door opening frame sub-assembly | 63105-52020 · 63105-52021 · 63105-52022 · 63105-52100 |
| 63111 | roof panel | 63111-52030 · 63111-52040 · 63111-52050 · 63111-52060 · 63111-52070 · 63111-52080 · 63111-52090 · 63111-52100 · 63111-52290 · 63111-52300 · 63111-52310 · 63111-52320 |
| 63118 | Right roof panel bracket | 63118-52020 |
| 63119 | Left roof panel bracket | 63119-52010 |
| 63132 | Windshield inner roof panel | 63132-52020 |
| 63141H | Center roof panel reinforcement | 63141-52020 |
| 63142 | No. 2 roof panel reinforcement | 63104-52010 |
| 63143B | No. 3 roof panel reinforcement | 63143-52020 |
| 63148A | No. 7 roof panel reinforcement | 63148-52010 |
| 63185D | Front roof rack bracket | 63185-52010 |
| 63187A | Rear roof rack bracket | 63187-52010 |
| 63189A | Center roof rack bracket | 63189-52010 |
| 63201C | Tiltable skylight glass sub-assembly | 63201-52020 · 63201-52021 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-52030 · 63201-52031 |
| 63203C | Tiltable skylight frame sub-assembly | 63203-44020 |
| 63207G | Sliding sunroof guide rail sub-assembly | 63207-52010 · 63207-52030 |
| 63209 | Roof deflector sub-assembly | 63209-52020 |
| 63214F | Roof rear drain channel | 63214-44010 · 63214-44011 |
| 63218H | Sliding skylight drain hose | 63249-52030 · 63249-52100 · 63249-52110 · 63249-52180 · 63249-52190 |
| 63221 | Sliding sunroof cable duct | 63221-44010 |
| 63223 | Right sliding sunroof transmission cable | 63223-44010 · 63223-52030 |
| 63224 | Left sliding sunroof transmission cable | 63224-44010 · 63224-52020 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-52010 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63239B | Tilt skylight glass liner | 63239-26020 |
| 63241B | Sliding sunroof frame bracket No. 1 | 63241-52020 · 63243-52020 · 63243-52021 |
| 63249E | Sliding skylight drain hose | 63249-52040 · 63249-52200 |
| 63249F | Sliding skylight drain hose | 63249-52050 · 63249-52210 |
| 63251H | Sliding skylight seal | 63251-44020 · 63251-44021 |
| 63251K | Tiltable skylight seal | 63251-44010 · 63251-44011 |
| 63252D | Sliding skylight frame sealing strip | 63252-44010 |
| 63256C | Tilt sunroof glass seal | 63256-44010 |
| 63257J | Tilt skylight frame seal | 63257-44010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-44010 |
| 63260C | Tiltable sunroof lock handle assembly | 63260-26030 |
| 63279D | Sliding sunroof guide rail stop | 63279-12030 |
| 63282B | Tilt sunroof lock | 63282-13010 · 63282-44010 |
| 63329A | Sunshade lock stop | 63329-12020 · 63329-44030 |
| 63460B | Roof right luggage rack assembly | 63460-52010 |
| 63470B | Roof left luggage rack assembly | 63470-52010 |
| 63605 | Right tilting sunroof hinge sub-assembly | 63605-52010 |
| 63606 | Left side tiltable sunroof hinge sub-assembly | 63606-52010 |
| 63619 | Tilt skylight cover | 63619-44010 |
| 63641 | No. 1 right front sunshade slide rail | 63641-52010 |
| 63642B | No. 1 left front sunshade slide rail | 63642-52010 |
| 63669B | Sliding skylight drain seal | 90480-26026 |
