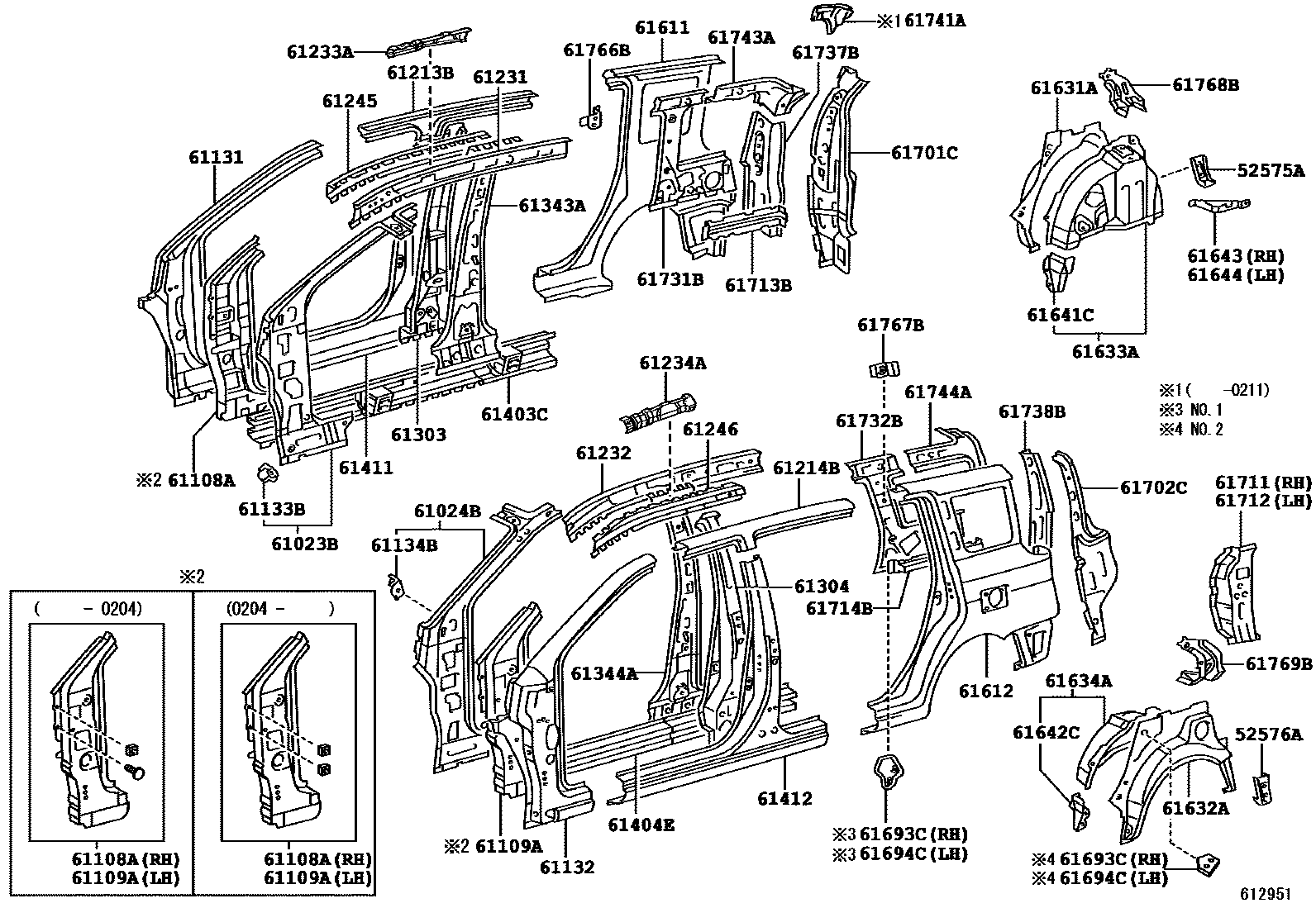

Toyota YARIS 侧梁 — Figure 6101
Toyota YARIS EPC diagram 6101, 侧梁, with 2 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52575A | Rear bumper right side fixing bracket | 52575-52020 |
| 52576A | Rear bumper left side fixing bracket | 52576-52020 |
| 58741B | Right side enclosure protection panel | 58741-52050 |
| 58742B | Left side enclosure protection panel | 58742-52050 |
| 59198 | Silencer panel seal | 59198-12010 |
| 61023B | Right body inner front pillar sub-assembly | 61023-52020 |
| 61024B | Left body inner front pillar sub-assembly | 61024-52020 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-52020 · 61108-52021 · 61108-52022 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-52020 · 61109-52021 · 61109-52022 |
| 61131 | Right body outer front upper pillar | 61131-52030 |
| 61132 | Left body outer front upper pillar | 61132-52020 |
| 61133B | Right body outer front pillar bracket | 61133-20140 |
| 61134B | Left body outer front pillar bracket | 61133-20140 |
| 61193B | Front pillar access hole cover | 61193-10010 · 61824-50020 · 61824-52040 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-52020 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-52020 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-52901 |
| 61232 | Roof left inner longitudinal beam | 61232-52901 |
| 61233A | No. 2 longitudinal beam inside the right side of the roof | 61233-52060 |
| 61234A | No. 2 longitudinal beam on the inner left side of the roof | 61234-52060 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-52010 · 61245-52011 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-52010 · 61246-52011 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-52900 · 61303-52901 · 61303-52903 · 61303-52904 · 61303-52905 · 61303-52906 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-52900 · 61304-52901 · 61304-52903 · 61304-52904 · 61304-52905 · 61304-52906 |
| 61343A | Right body inner center pillar | 61307-52900 |
| 61344A | Left body inner center pillar | 61308-52900 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-52030 · 61403-52031 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-52030 · 61404-52031 |
| 61411 | Right door outer sill panel | 61411-52030 · 61411-52040 |
| 61412 | Left door outer sill panel | 61412-52030 · 61412-52040 |
| 61611 | Right side hoarding | 61601-52020 · 61601-52030 |
| 61612 | left side panel | 61602-52030 · 61602-52040 |
| 61631A | Right wheel cover outer panel | 61631-52020 · 61631-52021 |
| 61632A | Left side wheel cover outer panel | 61632-52020 |
| 61633A | Right wheel housing lining panel | 61607-52904 · 61607-52905 |
| 61634A | Left side wheel housing lining panel | 61608-52904 · 61608-52905 |
| 61641C | Right front side wheel housing corner panel | 61641-52010 |
| 61642C | Left front side wheel housing corner panel | 61642-52010 |
| 61643 | Right wheel housing center corner panel | 61643-52010 |
| 61644 | Left side wheel housing center corner panel | 61644-52010 |
| 61693C | Rear right seat backrest assembly fastener | 61693-52020 · 61693-52030 |
| 61694C | Rear left seat back assembly fastener | 61693-52030 · 61694-52020 |
| 61701C | Roof right side outer panel sub-assembly | 61701-52900 · 61701-52902 |
| 61702C | Roof left outer panel sub-assembly | 61702-52900 · 61702-52902 |
| 61711 | Roof right side outer panel | 61711-52030 |
| 61712 | Roof left outer panel | 61712-52030 |
| 61713B | Roof right outer reinforcement | 61713-52010 |
| 61714B | Roof left outer reinforcement | 61714-52010 |
| 61731B | Roof right inner panel | 61731-52030 |
| 61732B | Roof left inner panel | 61732-52030 |
| 61737B | Right inner lower panel of the roof | 61737-52010 |
| 61738B | Roof left inner lower panel | 61738-52010 |
| 61741A | Rear door opening upper right reinforcement | 61741-52020 |
| 61743A | Rear door opening right reinforcement | 61743-52010 · 61743-52050 |
| 61744A | Rear door opening left reinforcement | 61744-52010 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-52020 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-52020 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-52040 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-52040 |
| 61783B | No. 1 rear fender outer panel pad | 61783-52020 · 61783-52030 |
| 61791B | Inner roof access hole cover | 61791-52010 |
| 61815B | Right inner upper cover of the roof | 61825-52010 · 61825-52040 |
| 61816B | Roof left inner upper cover | 61825-52010 · 61825-52040 |
| 61826A | Noise Control Panel No. 3 | 61826-12020 · 61826-52020 |
| 62151B | Front cowl side silencer pads | 62151-12130 · 62151-52010 |
| 62554B | No. 4 column pad | 62554-52010 |
