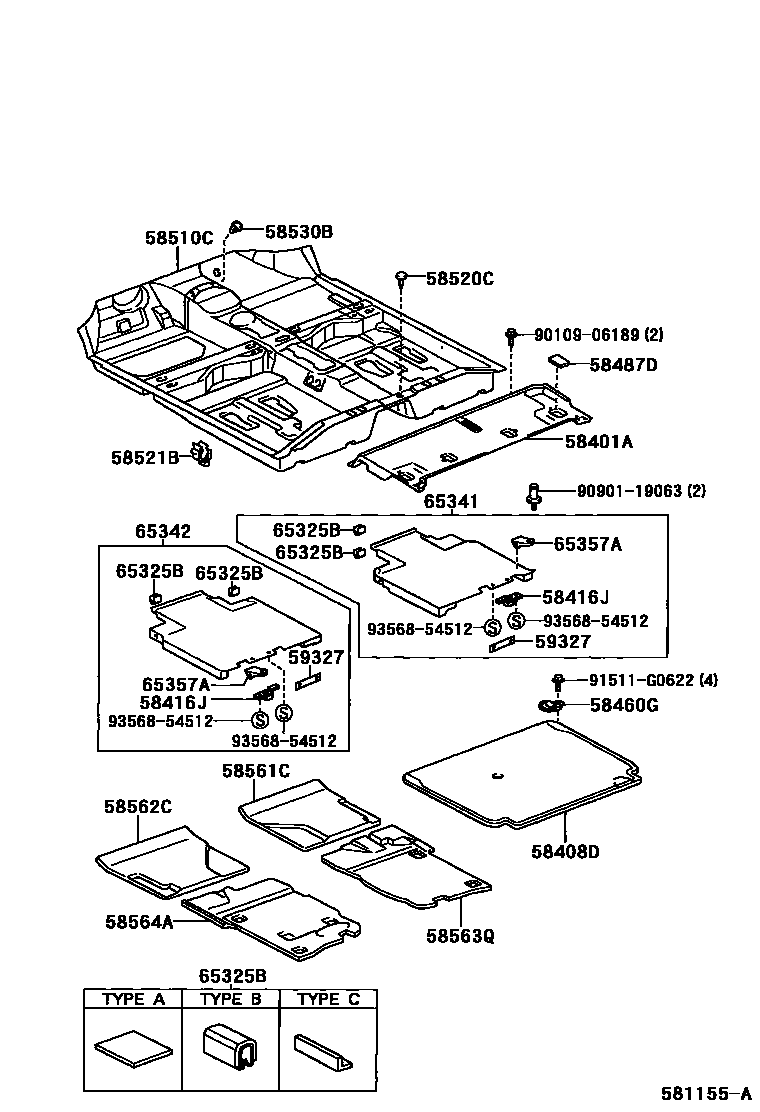

Toyota YARIS 地板垫和地毯 — Figure 5804
Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58416J | Bottom plate bracket No. 1 | 58416-52010 |
| 58460G | Luggage fixing belt lock assembly | 58460-52020 |
| 58521B | carpet hook | 58521-52010 |
| 58530B | Clip (for front carpet) | 90467-10091 |
| 58561C | Front floor silencer No. 1 | 58561-52050 |
| 58562C | Front floor silencer No. 2 | 58562-52050 |
| 58563Q | Front floor silencer No. 3 | 58563-52030 |
| 58564A | Front floor silencer No. 4 | 58564-52020 |
| 59327 | floor mat belt | 59327-32010 |
| 65325B | floor front panel | 65325-52010 · 65325-52011 · 65325-52012 · 65325-52020 · 65325-52030 |
| 65357A | floor covering | 65357-52010 · 65357-52011 · 65357-52012 |
