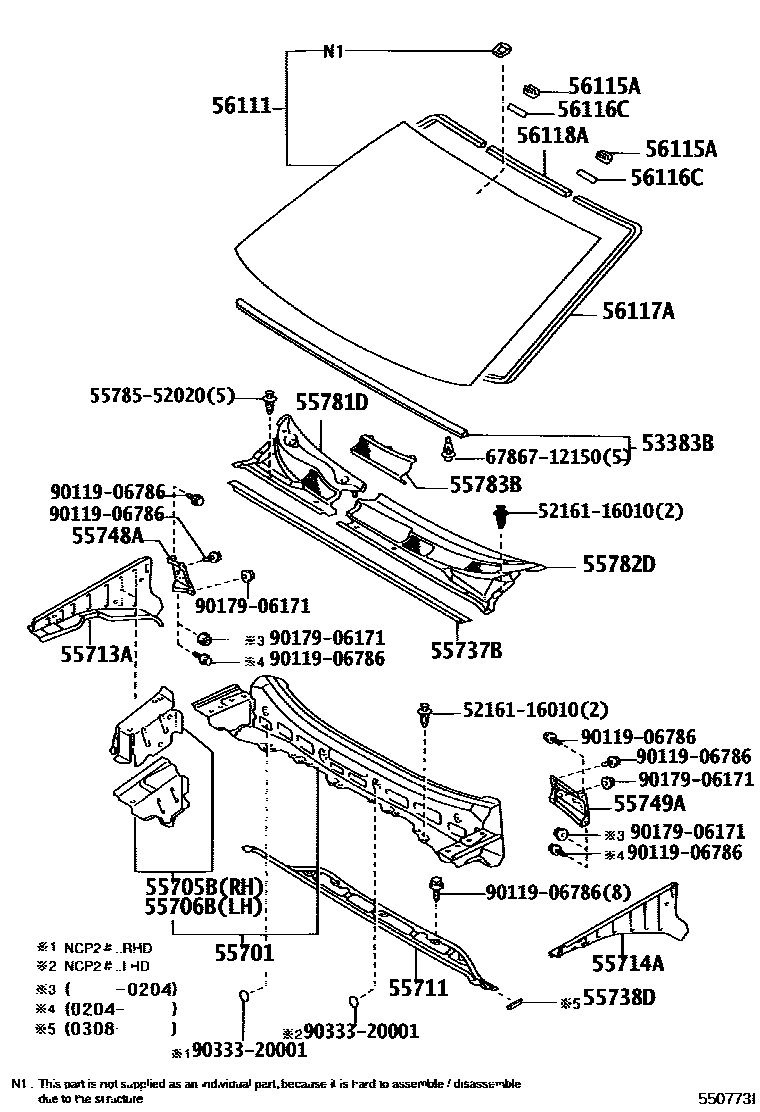

Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-52010 |
| 55701 | Front apron sub-assembly | 55700-52030 · 55700-52040 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-52020 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-52020 |
| 55711 | Front outer panel | 55701-52040 · 55701-52041 · 55701-52060 · 55701-52061 |
| 55713A | Right front wall upper side panel | 55713-52010 · 55713-52011 |
| 55714A | Left front wall upper side panel | 55714-52010 · 55714-52011 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-52010 |
| 55738D | No. 2 heater duct splash guard seal | 55738-52030 |
| 55748A | Front wall upper inner panel to column bracket | 55748-52010 · 55748-52060 |
| 55749A | From the upper inner part of the cowl to the left bracket of the column | 55749-52010 · 55749-52050 |
| 55781D | Ventilation grille on right front apron | 55781-52050 · 55781-52060 · 55781-52070 |
| 55782D | Ventilation grille on left front apron | 55782-52050 · 55782-52070 · 55782-52080 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-52050 |
| 56111 | windshield | 56101-52040 · 56101-52041 · 56101-52060 · 56101-52200 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 56117-52040 |
