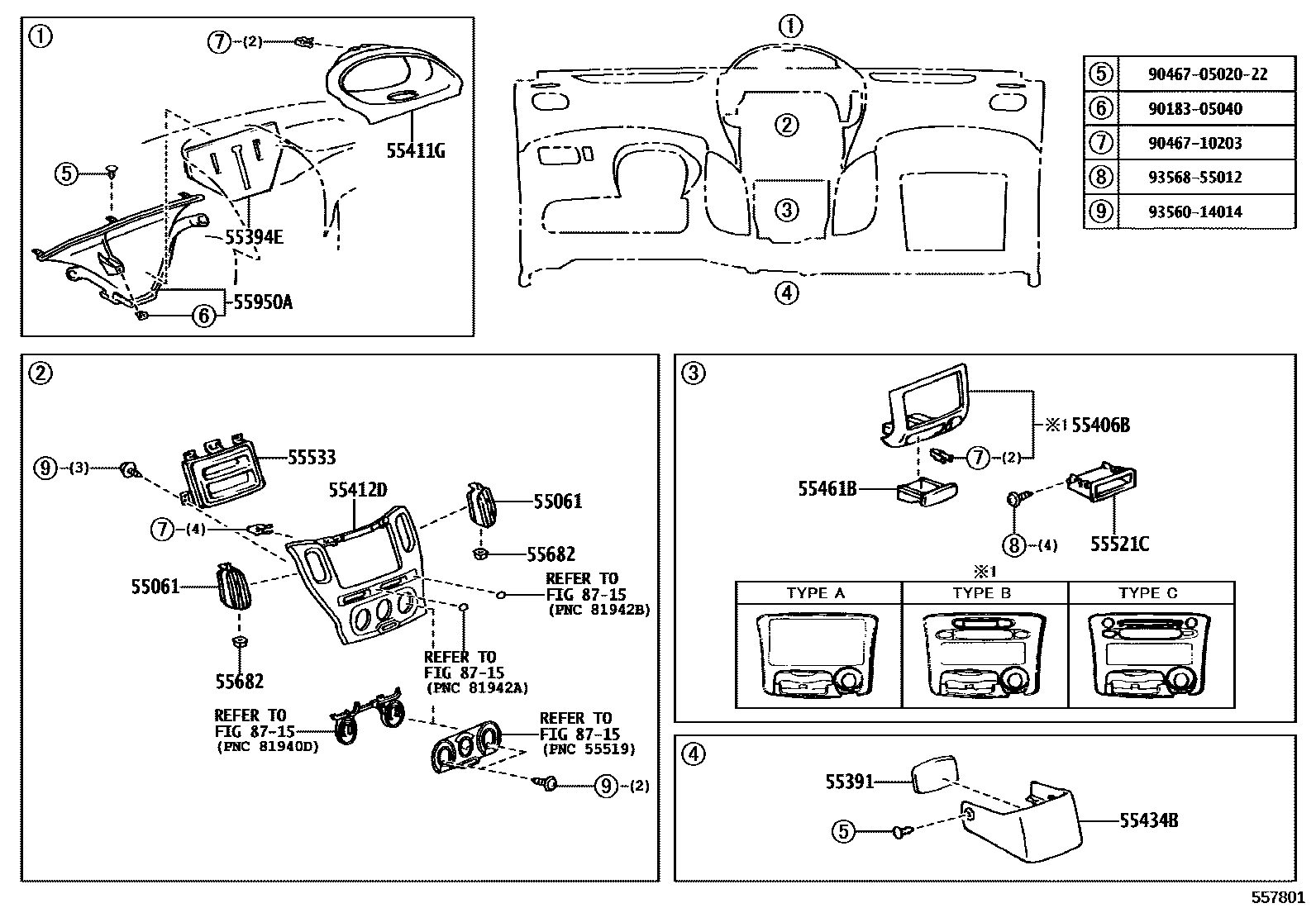

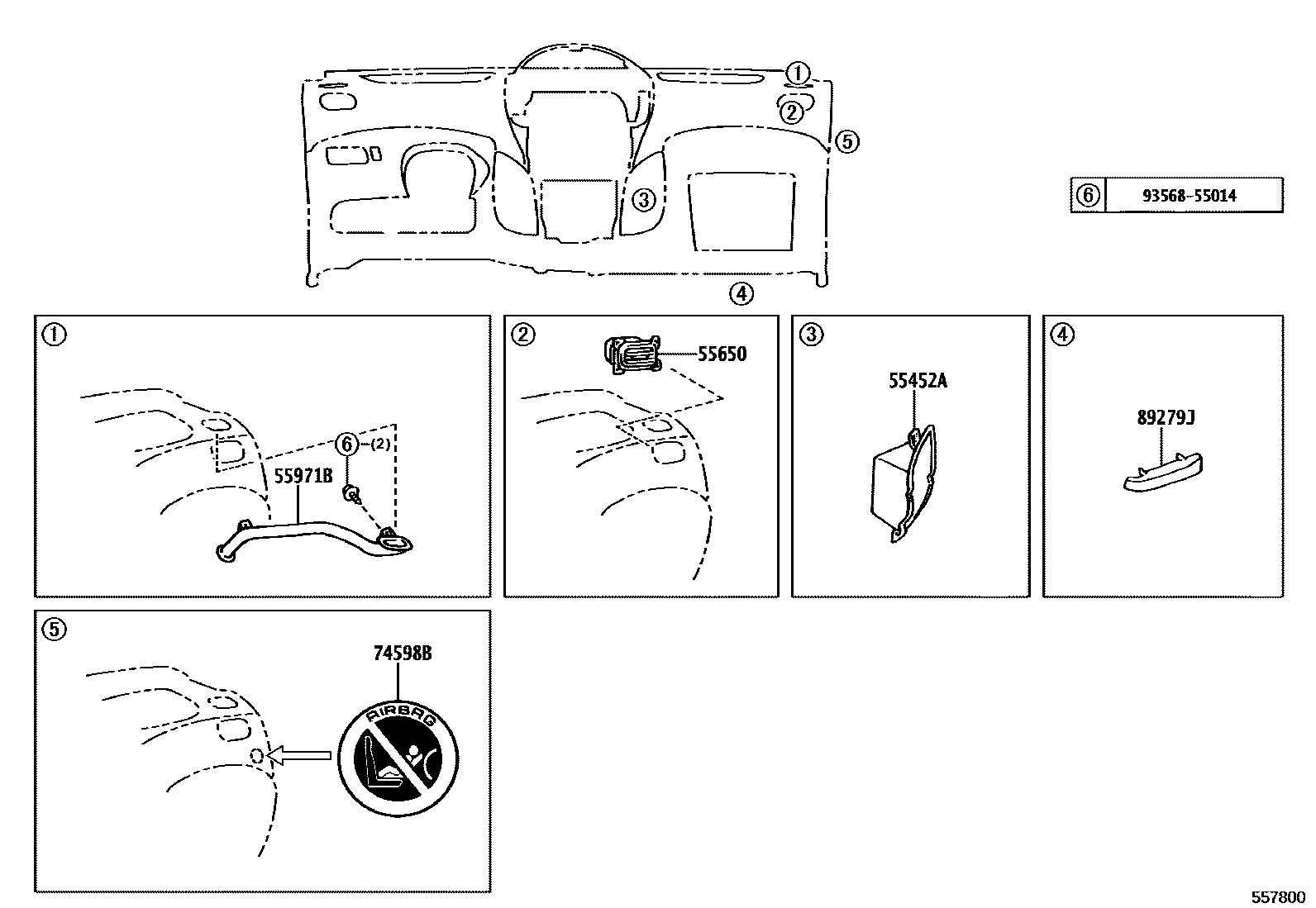

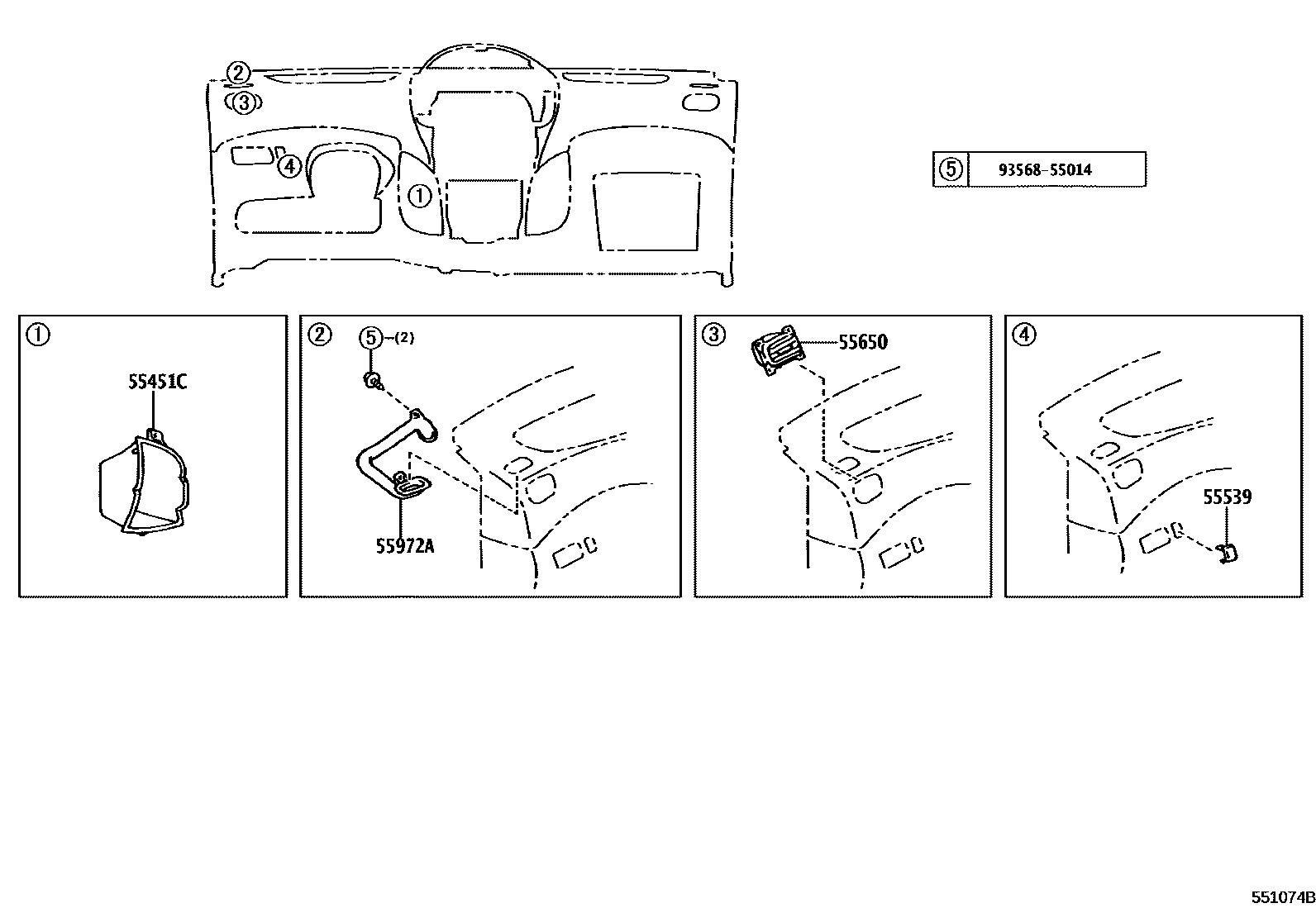

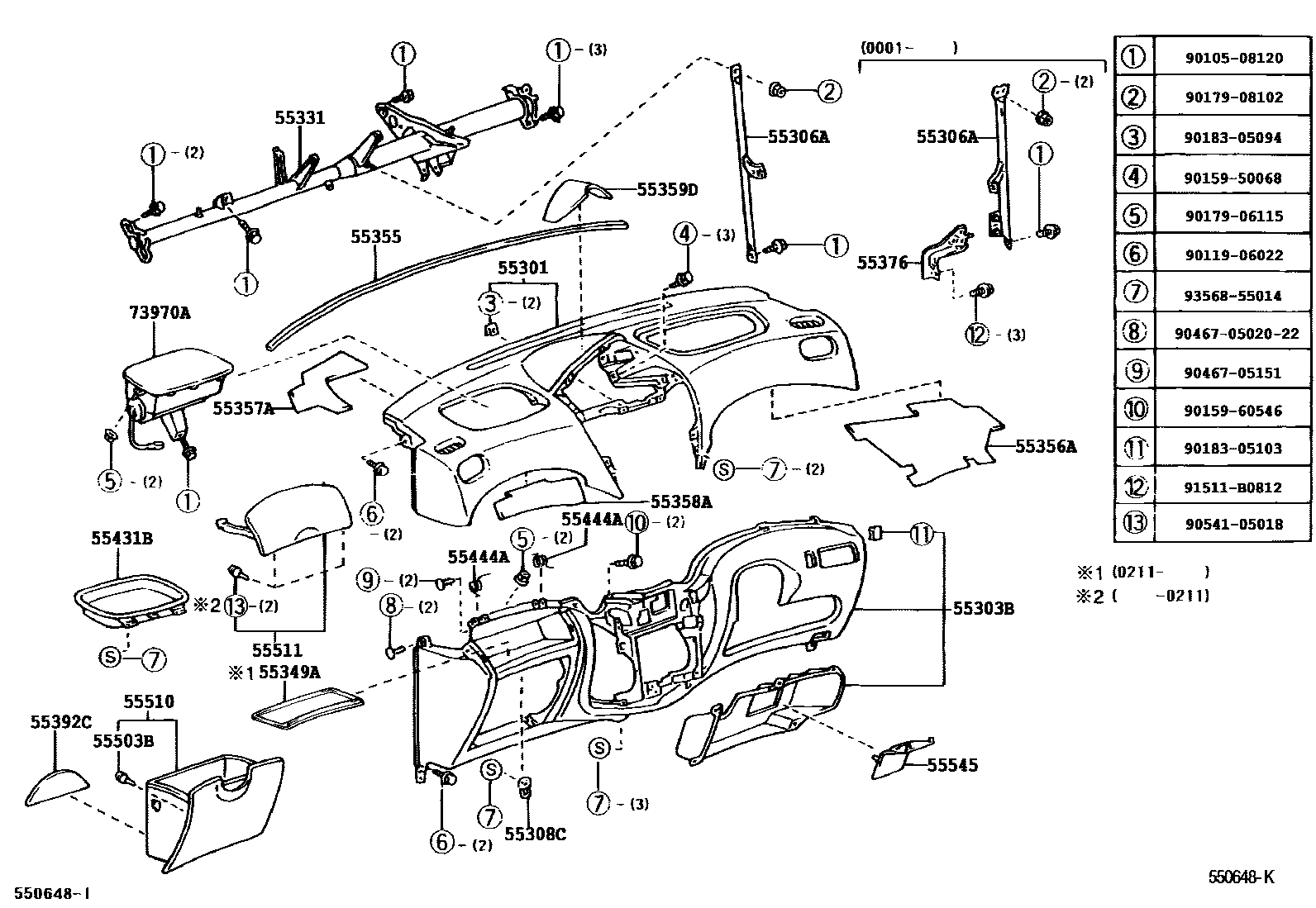

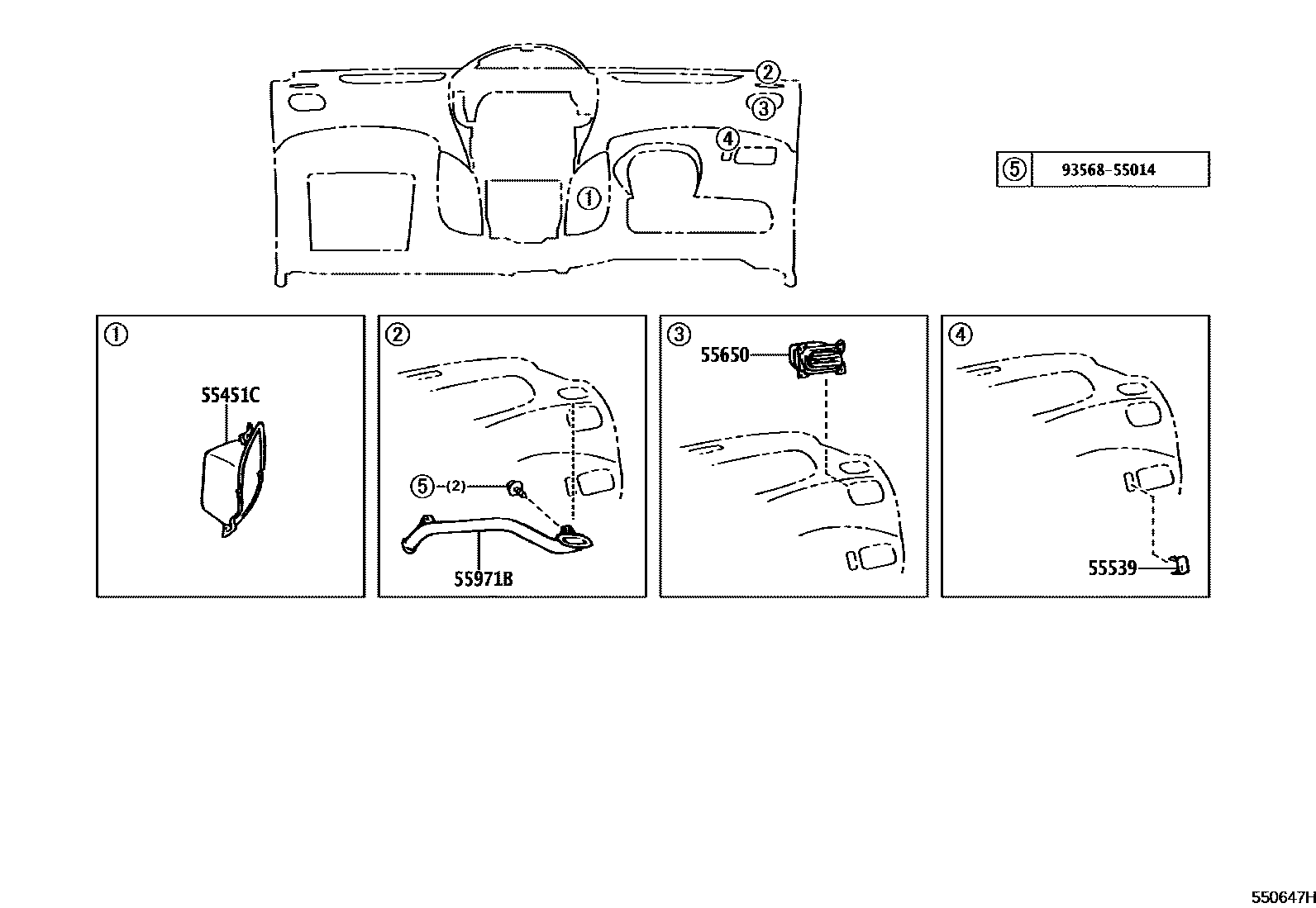

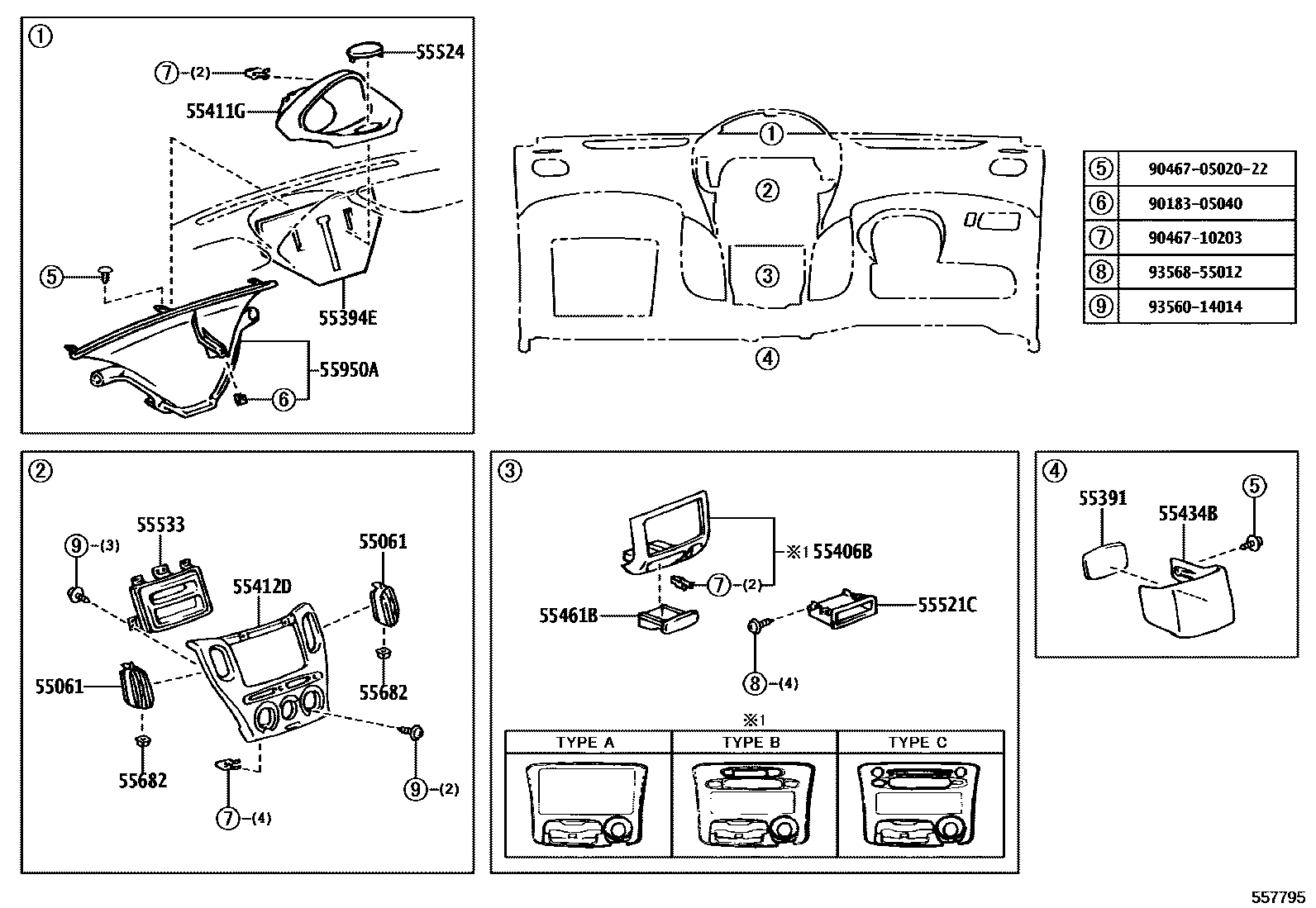

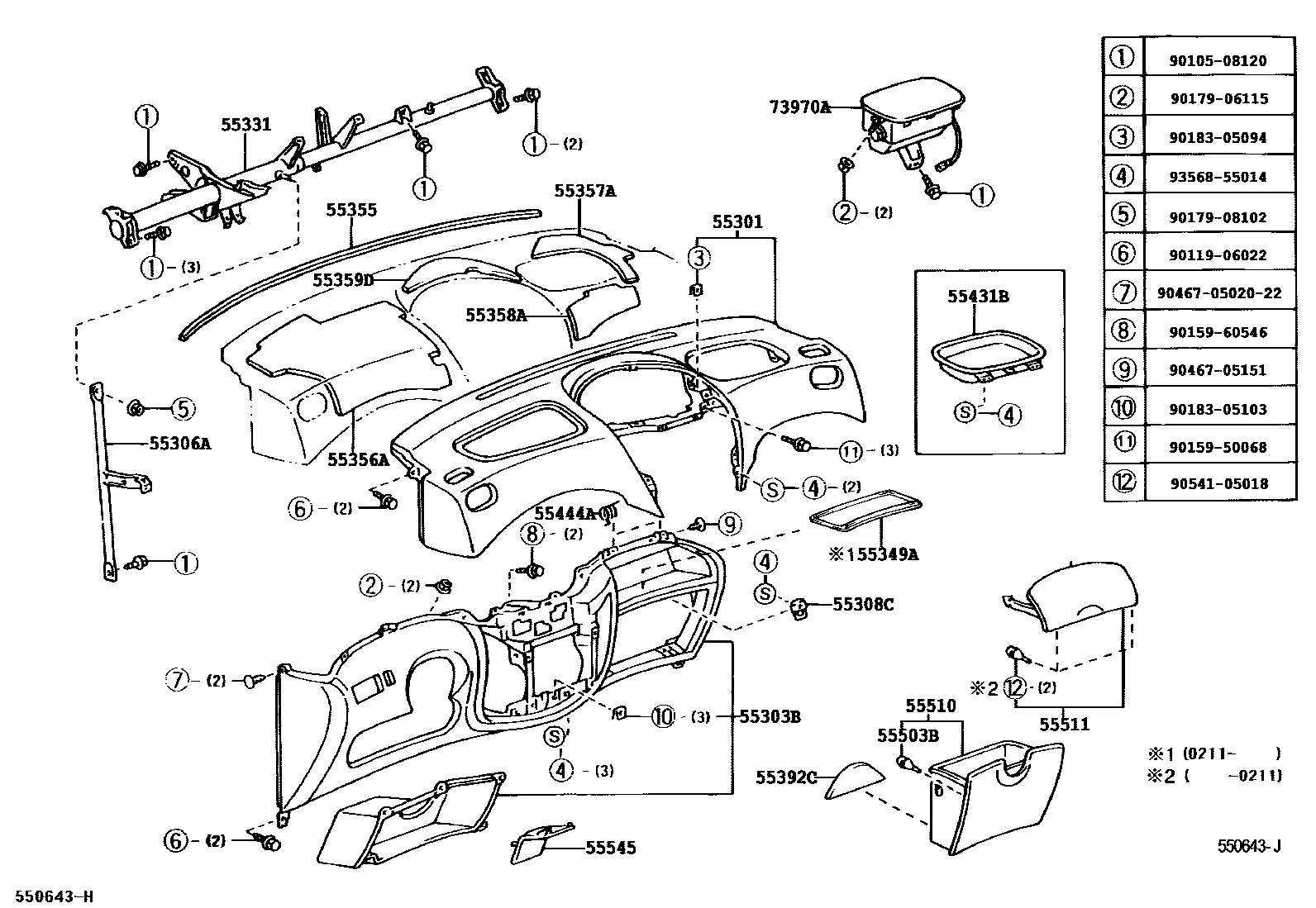

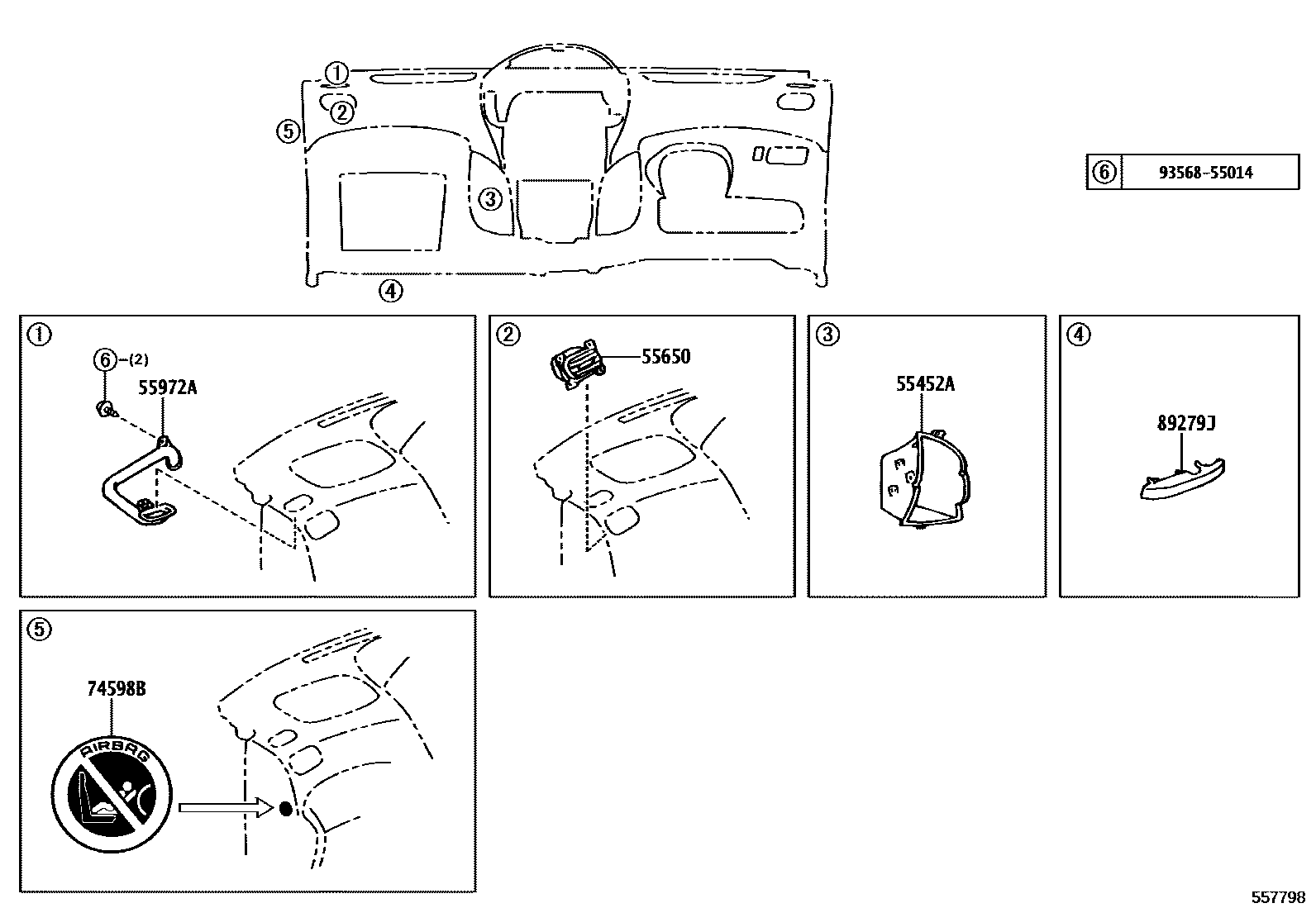

Toyota YARIS 仪表板和手套箱 — Figure 5501

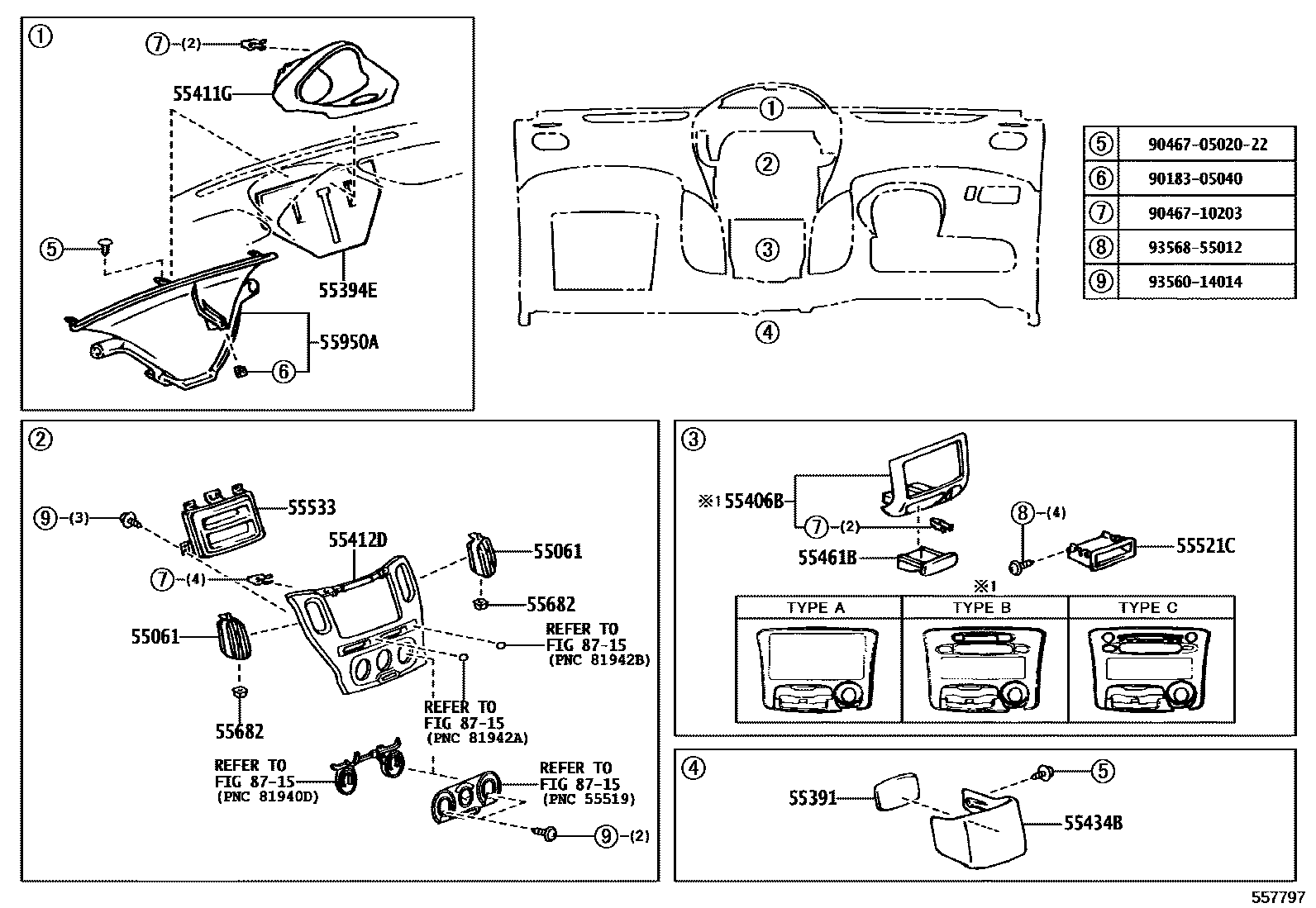

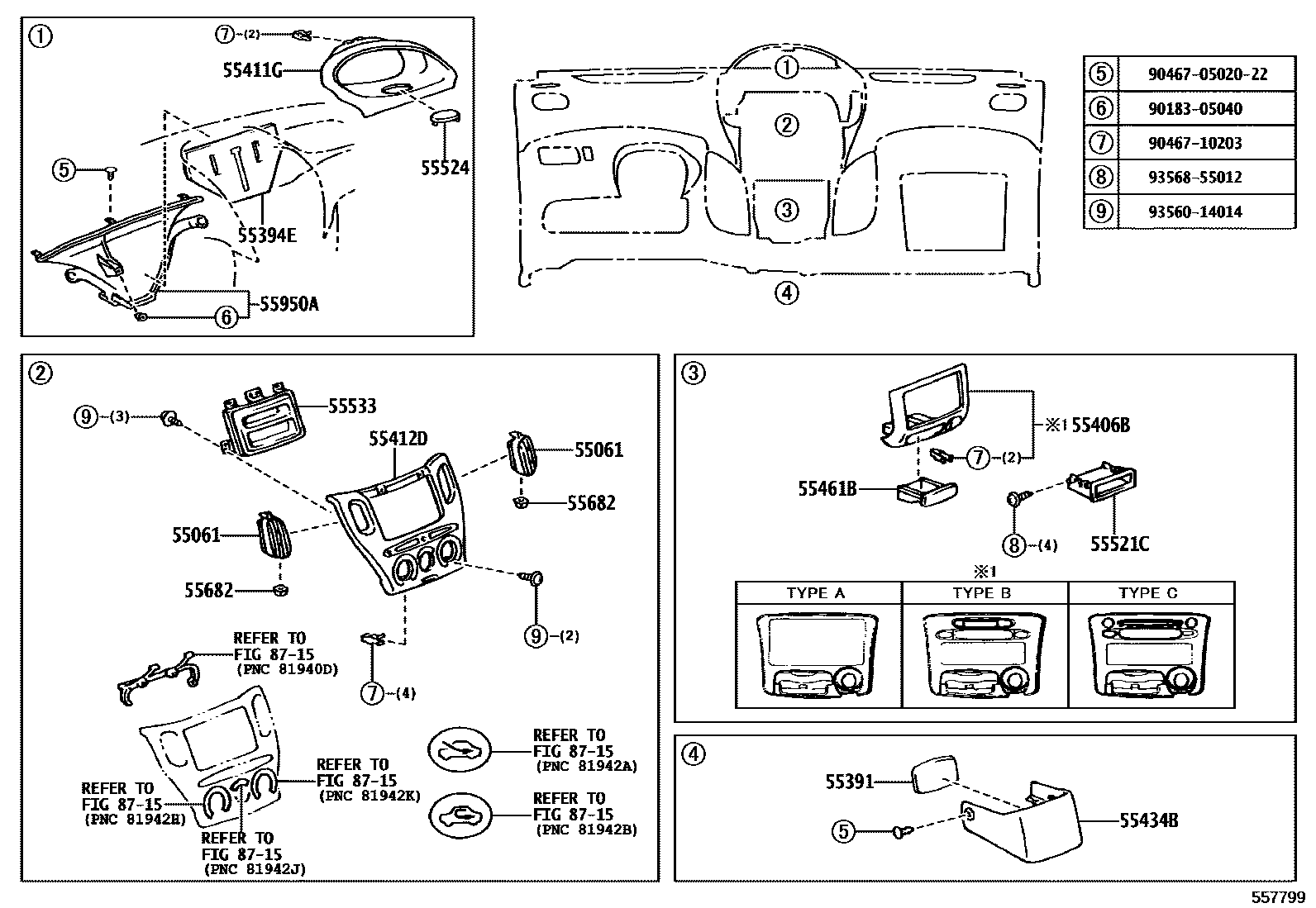

Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 14 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-52030 · 55306-52040 · 55306-52070 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-52010 · 55308-52080 |
| 55331 | Dashboard reinforcement | 55330-52090 · 55330-52100 · 55330-52150 · 55330-52151 · 55330-52170 · 55330-52260 · 55330-52261 · 55330-52270 |
| 55349A | Dashboard cushion | 55349-52010 · 55349-52020 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-52012 |
| 55356A | instrument panel lower panel | 55356-52030 |
| 55357A | No. 1 edge guard | 55357-52020 |
| 55358A | Edge guard No. 2 | 55358-52010 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-52030 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-52020 |
| 55391 | Dashboard No. 1 lower cushion | 55391-52010 |
| 55392C | Dashboard No. 2 lower cushion | 55392-52010 |
| 55394E | Dashboard No. 4 lower cushion | 55979-52020 |
| 55444A | Dashboard storage box spring | 55444-52020 · 55444-52040 |
| 55503B | Cushion pad (for glove box) | 90541-05080 |
| 55521C | stereo system hole cover | 55521-16030 |
| 55682 | Dashboard air register bracket spring | 55682-52010 |
| 55950A | Defroster nozzle assembly | 55950-52030 · 55950-52040 |
| 55971B | Side defroster No. 1 nozzle air duct | 55971-52010 |
| 55972A | Side defroster No. 2 nozzle air duct | 55972-52010 |
| 74598B | Passenger air bag warning label | 74598-20010 |
| 89279J | cover | 89279-52010 · 89279-52020 |
